1j91 Permalloy Soft Magnetic Alloy Wire GB DIN ASTM Standard
1j91 Permalloy Soft Magnetic Alloy Wire GB DIN ASTM Standard
Specifications
Brand Name :
HUONA
Model Number :
1J91
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
20KG
Price :
DISCUSS
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
50ton/Month
Delivery Time :
7-21 DAYS
Packaging Details :
Wooden Case
Model NO. :
1j91
Purity :
79%
State :
Soft State
Surface Treatment :
Polishing
Standard :
GB, DIN, ASTM
Trademark :
HUONA
Origin :
Shanghai
Density :
8.66g/cm3
Description

Product Description

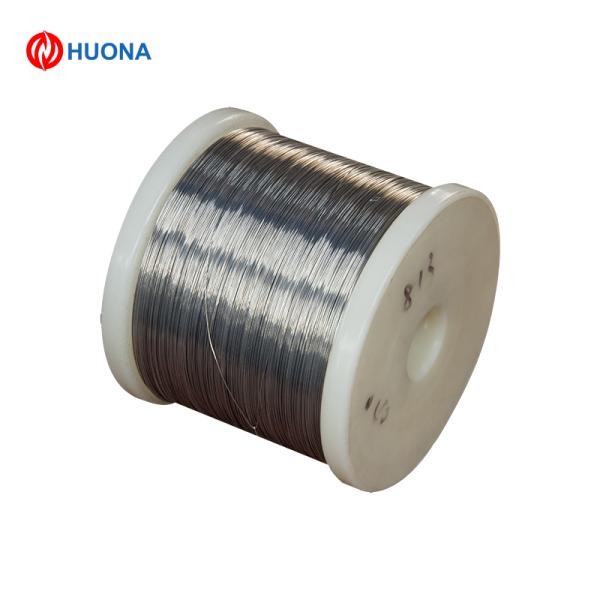

1j91 Permalloy Soft Magnetic Alloy Wire

Product Description

1J87/1J88/1J89/1J90/1J91 alloy have high initial permeability, high hardness, high resistivity, and magnetic properties are not sensitive to stress, good resistance to abrasion

Main applications: Each kind of magnetic tape head of magnetic band device, chip as well as recorder, ferrite core of high frequency component

Specification/size

Strip(thickness*width ): 0.05mm~3.0mm*≤ 420mm
Bar: Round: Φ 5.5mm~250mm, square: 40mm~240mm*40mm~240mm
Wire: Φ 0.1mm~18mm
Plate(thickness*width*length): 3.0mm~60.0mm*1000mm*2000mm
Seamless tube: 6mm~219mm(OD)*0.5mm~18mm(WT)
Welded tube: 1mm~120mm(OD)*0.1mm~10mm(WT)
Brands Chemical analysis (%) Others
C S P Mn Si Ni Cr Co M0 Cu Al Nb Fe
≤
1J87 0.03 0.020 0.020 0.30~0.60 ≤O.30 78.5~
80.5		 1.6~
2.2		 6.5~7.5
1J88 O.03 O.020 O.020 ≤0.60 ≤O.30 79.5~
80.5		 7.5~
9.0
lJ89 0.03 O.020 O.020 O.50~1.00 ≤O.30 78.5~
80.5		 3.5~
4.5		 3.0~
3.6		 Ti:1.8
~2.8
lJ90 0.03 0.020 O.020 ≤0.60 ≤O.30 79.O~80.O 1.8~2.2 O.40~
0.60		 4.8~
7.2
1J91 0.03 O.020 O.020 ≤O.60 ≤O.30 78.5~80.O O.90~
1.20		 7.7~8.4



2.Usage
It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

3.Features
1).Low coercivity and magnetic hysteresis loss;
2).High resistivity and loweddy-currentloss;
3).High initialmagnetic permeability and maximum magnetic permeability;
4).High saturation magnetic flux density;

4. Packing detail

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
5. Products and services

1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
