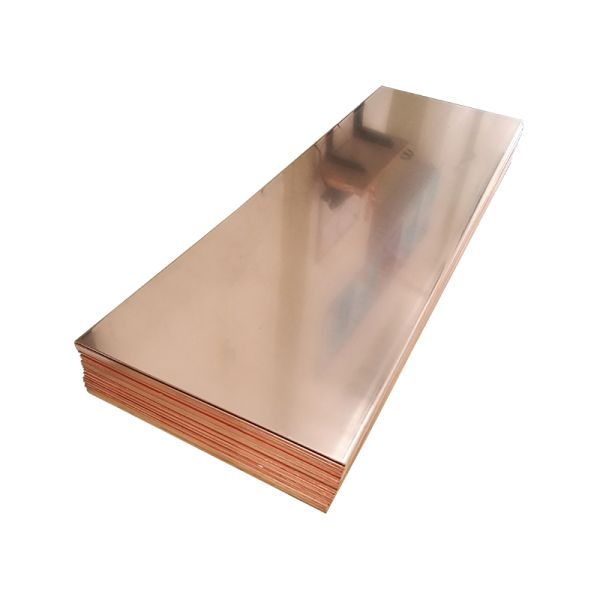

Standard Grade CuNi1 Alloy Plate Sheet Stable Electrical Performance Excellent Machinability Full Size Range Nickel Copper Plate for Heating Elements and Offshore Fittings
Standard Grade CuNi1 Alloy Plate Sheet Stable Electrical Performance Excellent Machinability Full Size Range Nickel Copper Plate for Heating Elements and Offshore Fittings
Specifications
Brand Name :
HUONA
Model Number :
plate
Certification :
SGS/ISO9001
Place of Origin :
Shanghai,China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 Tons per year
Delivery Time :
7-20days
Packaging Details :
Spool + Carton + Wooden Case
Max continuous Operating Temperature（℃） :
200
Resisivity（ μΩ/m，20℃） :
0.03
Density（g/m³） :
8.9
TCR（10−6/℃） :
＜100
Tensile strength(N/m㎡） :
≥210
Melting point（℃） :
1085
Magnetic Property :
non
Specification :
negotiation
Description

CuNi1 is a low-nickel copper-nickel alloy plate with nickel content ranging from 0.8% to 1.2%. Manufactured with high-purity raw materials, it features uniform composition and consistent material performance. This alloy has low electrical resistivity and excellent conductivity, accompanied by a low temperature coefficient of resistance, which ensures stable electrical performance even with temperature changes. Its maximum working temperature reaches 200°C. It also delivers reliable anti-oxidation and corrosion resistance, working well in humid and mild salt fog environments.

Widely applied in low-voltage electrical appliances, circuit breakers, electronic connectors, instrumentation, low-temperature sensing elements, daily heating parts, automotive electronics and general marine electrical fittings.

1. Chemical Composition

Ni

1

Cu

Bal


2. Technical Specifications

Parameter

Specification

Max continuous Operating Temperature(℃)

200

Resisivity( μΩ/m,20℃)

0.03

Density(g/m³)

8.9

TCR(10−6/℃)

＜100

Tensile strength(N/m㎡)

≥210

Melting point(℃)

1085

Magnetic Property

non

3. Production Attributes

Product Form

plate

Specification

negotiation

Surface Finish

Bright, Polished

Packaging Type

Coil, Bundle, Straight Rods

Certification

ISO9001, SGS, and so on

Application Environment

Chemical, Industrial,Home


4.Application

  • Low-voltage electrical appliances and circuit protection parts
  • Electronic connectors and internal conductive components
  • Industrial instruments and control equipment
  • Low-temperature thermocouples and temperature sensors
  • Household heating elements and electrical accessories
  • Automotive electronic parts
  • Common marine electrical fittings

5.Key feature

  • Low electrical resistivity & high conductivity
  • Low temperature coefficient of resistance
  • Stable electrical performance at varying temperatures
  • Good oxidation and corrosion resistance
  • High flatness, smooth surface & tight dimensional tolerance
  • Excellent ductility, easy for cutting, bending and welding
  • Reliable performance and long service life
  • Cost-effective for industrial use
