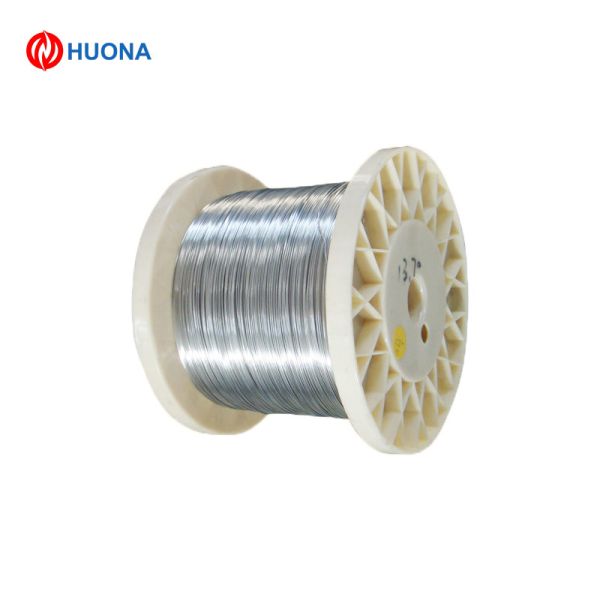

0Cr25Al5 FeCrAl255 Alloy Wire, 0.2-0.25mm，Anti-oxidation High Temperature Heating Wire, Heating Element for Industrial Furnace and Heat Treatment Equipment
0Cr25Al5 FeCrAl255 Alloy Wire, 0.2-0.25mm，Anti-oxidation High Temperature Heating Wire, Heating Element for Industrial Furnace and Heat Treatment Equipment
Specifications
Brand Name :
HUONA
Model Number :
wire
Certification :
SGS/ISO9001
Place of Origin :
Shanghai,China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 Tons per year
Delivery Time :
7-20days
Packaging Details :
Spool + Carton + Wooden Case
Max continuous Operating Temperature（℃） :
1250
Resisivity（Ωmm2/m） :
1.42
Density（g/m³） :
7.1
Thermal Conductivity at 20°（m·k·） :
0.46
Tensile strength(N/m㎡） :
630-780
Melting point（℃） :
1500
Hardness（H.B.) :
200-260
Elongation（%) :
＞12
Description
FeCrAl 255 (0Cr25Al5) is a common high-temperature electric heating alloy material. It features high resistivity, fast heating, excellent high temperature resistance and oxidation resistance, with a long-term working temperature of 1250℃. This alloy has stable high-temperature performance, low deformation rate, and long service life. With good ductility, it can be processed into straight wire, spiral wire, and various customized heating elements. Compared with Nichrome alloy, it has higher cost performance, is widely used in industrial furnaces, ovens, muffle furnaces, heating tubes, household heating, and drying equipment.

1. Chemical Composition:

Cr

23.0-26.0

Al

4.5-6.5

Re

opportune

Fe

Bal.


2. Technical Specifications:

Parameter

Specification

Max continuous Operating Temperature(℃)

1250

Resisivity(Ωmm2/m)

1.42

Density(g/m³)

7.1

Thermal Conductivity at 20°(m·k·)

0.46

Tensile strength(N/m㎡)

630-780

Melting point(℃)

1500

Hardness(H.B.)

200-260

Elongation(%)

＞12

3. Production Attributes

Product Form

wire

Diameter

0.2-0.25mm

Surface Finish

Bright, Polished

Packaging Type

Coil, Bundle, Straight Rods

Certification

ISO9001, SGS, and so on

Application Environment

Chemical, Industrial,Home
4. Applications
  • Industrial furnace equipment: Suitable for heating elements of heat treatment furnaces, muffle furnaces, sintering furnaces, melting furnaces, vacuum furnaces and atmosphere protection furnaces.
  • Drying & constant temperature equipment: Applied to industrial ovens, hot air drying equipment and food drying equipment with uniform heating and stable constant temperature performance.
  • Household electric heating accessories: Widely used in electric ovens, electric heaters, electric heating tubes and other household and commercial heating components.
  • Precision mechanical accessories: Used for manufacturing automobile oxygen sensors, exhaust heating elements and small precision high-temperature heating parts.

5. Key Features

  • High temperature resistance
  • Excellent oxidation resistance
  • High resistivity & fast heating
  • Good flexibility & easy processing
  • High cost performance
  • Stable chemical performance
