CuNi2 Copper Nickel Resistance Wire NC005 Cuprothal 05 Low Temperature Heating Wire
CuNi2 Copper Nickel Resistance Wire NC005 Cuprothal 05 Low Temperature Heating Wire
Specifications
Temperature Coefficient (TCR) :
Lower than 120 x 10-6 per C
Place of Origin :
China
Resistivity :
0.05 micro-ohm.m at 20 C
Delivery Time :
5-20 days after order confirmation
Brand Name :
HUONA
Max Working Temperature :
200 C
EMF vs Copper :
-12 microV per C
Certification :
ISO 9001:2015
MOQ :
5 Kilograms
Standard :
DIN 17471 / GB/T 1234
Supply Ability :
500 tons per month
Tensile Strength :
220 MPa
Diameter Range :
0.05mm - 7.5mm
Payment Terms :
T/T,L/C,Western Union,PayPal
Material :
Copper Nickel (CuNi2 / NC005)
Condition :
Soft / Bright Annealed
Density :
8.9 g/cm3
Model Number :
CuNi2 / NC005
Price :
USD 21-22 / Kilogram
Packaging Details :
Spool package with carton box, coil package with polybag
Description

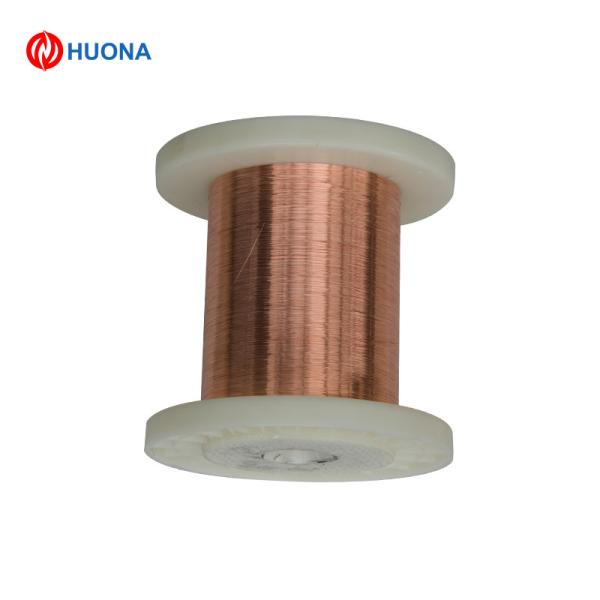

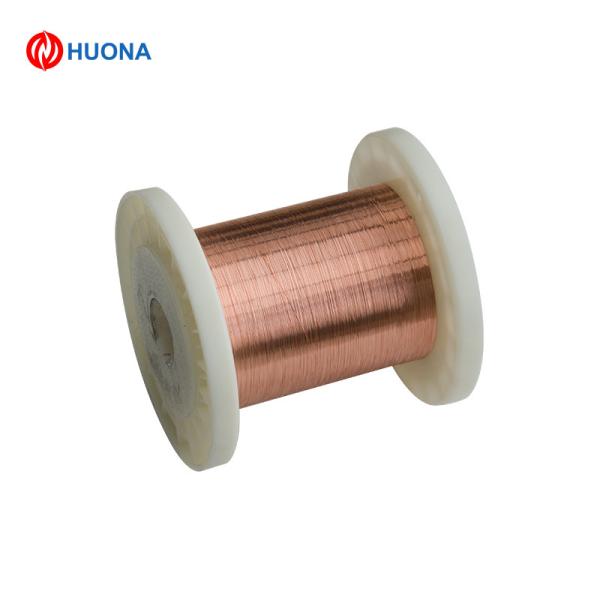

CuNi2 Copper Nickel Resistance Wire (NC005 / Cuprothal 05)

CuNi2 is a low-resistance copper nickel alloy containing approximately 2% nickel. It is formulated to provide a low and stable electrical resistivity together with an exceptionally low temperature coefficient of resistance (TCR), making it a cost effective choice for low temperature heating, precision resistance and compensating lead applications. The wire is supplied in a bright, soft annealed condition with excellent ductility for winding and coiling.


CuNi2 Copper Nickel Resistance Wire NC005 Cuprothal 05 Low Temperature Heating Wire

1. Key Features

  • Low electrical resistivity with a very low temperature coefficient of resistance
  • Stable resistance over a wide low temperature range up to 200 C
  • Bright, soft annealed surface with excellent ductility for winding and coiling
  • Good corrosion resistance and long service life in heating and resistive applications
  • Easy to solder and weld, ROHS compliant and lead free

2. Applications

  • Low temperature heating cables and heating elements
  • Electric blankets, heating mats and heating pillows
  • Precision low value resistors and shunts
  • Thermocouple compensating leads and low temperature sensing

3. Specifications

Common Name CuNi2 (NC005, Cuprothal 05)
Composition Copper balance with approx. 2% Nickel
Resistivity at 20 C 0.05 micro-ohm.m
Temperature Coefficient (TCR) Lower than 120 x 10-6 per C
Density 8.9 g/cm3
Tensile Strength 220 MPa
Max Working Temperature 200 C
Melting Point 1090 C
EMF vs Copper -12 microV per C
Standard DIN 17471 / GB/T 1234

4. Available Forms and Sizes

Wire Diameter 0.05mm - 7.5mm
Ribbon Thickness 0.05 - 0.35mm x Width 0.5 - 6.0mm
Strip Thickness 0.50 - 2.5mm x Width 5 - 180mm
Rod Diameter 8 - 50mm

5. Packaging and Ordering

Standard packing is spool package with carton box or coil package with polybag, suitable for long distance sea and air shipment. Custom diameters, spool sizes and surface conditions are available according to your specification. Please contact us with your required diameter, resistance tolerance and order quantity for a prompt quotation.
