Specifications
Brand Name :
TOBO
Model Number :
Alloy Steel Pipe Fittings
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1 pcs
Price :
Negociation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pc per month
Delivery Time :
15~30 work days
Packaging Details :
Wooden case
Product Name :
Weldolet
Diameter :
1/8" - 24"
Material :
carbon steel, stainless steel, alloy steel
Standard :
ANSI, DIN, ASME B16.9
Type :
threaded, socket weld
Pressure :
2000#,3000#,6000#,9000#
Port :
Shanghai, Ningbo, Etc.
Specification :
As customers requirement
End :
Plain End, Beveled End
Package :
box,plywood case,pallet,etc,cartons
Material Grade :
Alloy Steel
Wallthickness :
Schedule 10 to Schedule 160
Process :
forged
Corrosionresistance :
High
Description

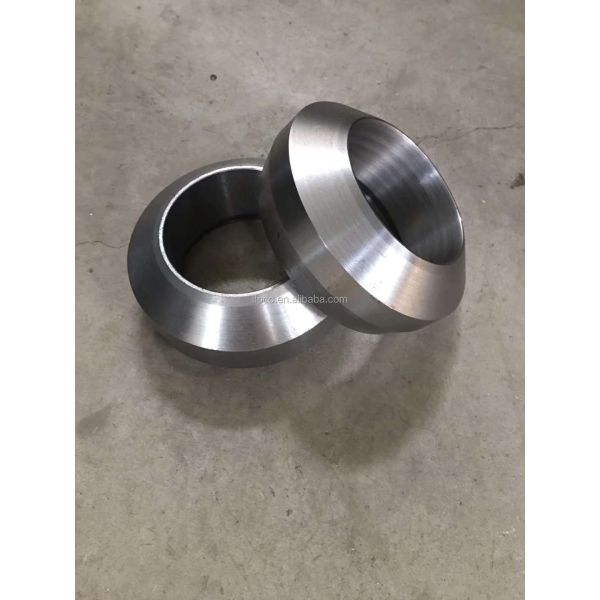

MSS SP-97 ASME B16.9 Forged Steel Pipe Fittings Threadolet Olets

We supply forged steel threadolet olets manufactured in accordance with MSS SP-97 and ASME B16.9 standards.
These are high-performance branch connection fittings designed for reliable pipeline branching, with threaded connection for easy installation and strong sealing.
Made from forged steel, they feature high strength, good pressure resistance, and long service life, widely used in oil & gas, petrochemical, power plant, and general industrial piping systems.
Key Specifications:
  • Standard: MSS SP-97, ASME B16.9
  • Type: Threadolet Olets
  • Material: Forged Steel
  • Connection: Threaded
  • Application: Branch connection in high-pressure piping systems
All olets are strictly inspected for dimension, material, and pressure performance to meet international industrial requirements.

Forged Pipe Fittings Olets

Run Pipe Size: 1/4"-36"

Branch Pipe Size: 1/8"-24"

Type: Weldolet, Threadolet, Socketolet

Pressure Rating: Class 3000 (Sch80), 6000 (Sch160), 9000(Sch.XXS)

Material: Carbon Steel, Stainless Steel, Alloy Steel

Standard: MSS SP-97

Forged Pipe Fittings
Type Forged Threaded Pipe Fittings(NPT/BSPT/BSP), Forged Socket Welded Pipe Fittings
Specification Elbow, Cross, Street Elbow, Tee, Coupling, Half Coupling, Reducing Coupling
Outlet, Cap, Bushing, Union, Hex Nipple, Hex Plug, Square Plug, Round Plug, Boss
Size 1/8"---4"
Pressure Rating Threaded Fitting: 2000LB/3000LB/6000LB(Sch40, Sch80, Sch160)
Socket Welding: 3000LB/ 6000LB/9000LB(Sch80, Sch160, XXS )

Material

 Carbon Steel: ASTM A105N, A350 LF2, A350 LF3

Stainless Steel:

ASTM A182 F304, F304L,F316, F316L, F321, F347, F310, F43, F44, F51
A276 S31803, S32750, A705 631, 632, A961, A484

Alloy Steel:

ASTM A694 F42, F46, F52, F56, F60, F65, F70
A182 F12, F11, F22, F5, F9, F91, F1, etc.
Standard ASME/ANSI B16.11, B 1.20.1, MSS SP-79/83/95/97, JIS, B2316, GB/T 14626 etc.
Surface Varnished, Galvanized, as per customer’s requirements.
Connection Threaded(NPT/BSPT/BSP), Socket welded
Shape Equal, Reducing
Applications Petroleum, Gas, Power, Chemistry, Metallurgy, Shipbuilding, Urban Construction etc.
