Specifications
Brand Name :
TOBO
Model Number :
Alloy Steel Pipe Fittings
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 PCS per month
Delivery Time :
15- 30 work days
Packaging Details :
In wooden case or according to client's requirement
Productname :
Alloy Steel Pipe Fittings
Technics :
Forged
Alloy Or Not :
Non-alloy
Process :
Cold Forming
Wall Thickness :
SCH160
Usage :
Connect
Size Range :
DN15-DN2400(1/2
Head Shape :
Hex
Shape :
Round
Packing :
Wooden Case,Pallet/plywood case
Standards :
ASTM, ASME, DIN, JIS
Surface Of Finish :
Hot Galvanized
Origin :
China
Temperaturerange :
-50°C to 600°C
Standard :
ANSI, ASTM DIN EN BS JIS GOST etc.
Description

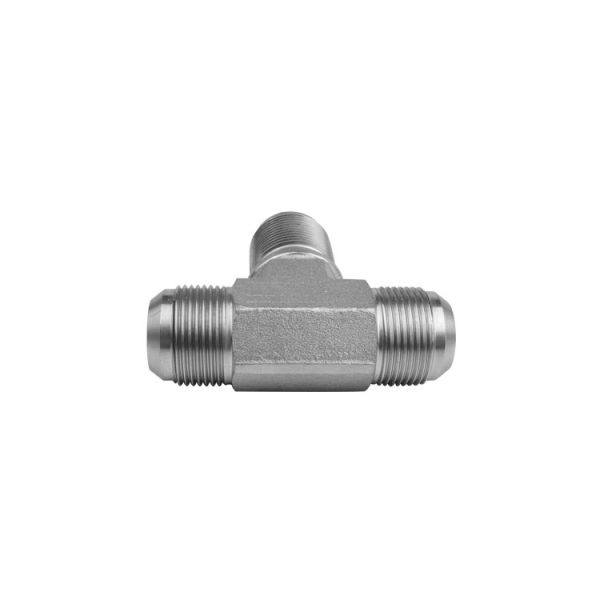

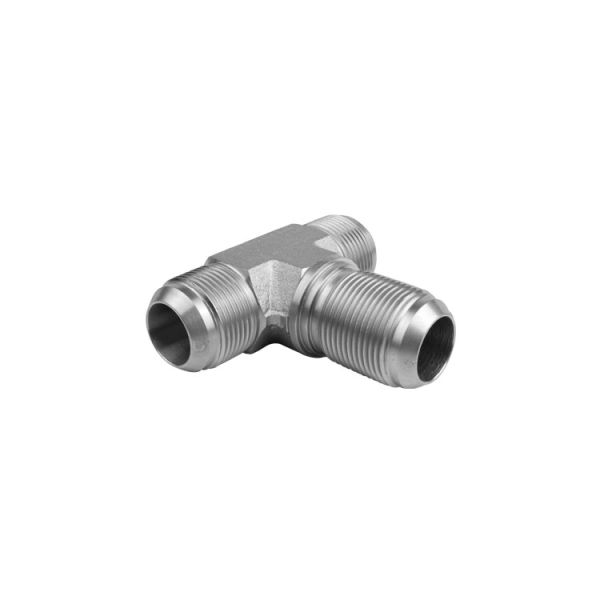

Galvanized Carbon Steel JIC Union Branch 3 Way Tee Adapter for Hydraulic Piping System

Product Description

These 3 way tee male JIC union branch adapters are high-quality pipe fittings made of galvanized carbon steel, designed for reliable connection and branching in hydraulic, pneumatic and fluid pipeline systems. The galvanized surface provides excellent rust resistance, corrosion resistance and long service life, effectively protecting the fitting from oxidation and damage in harsh working environments.
Adopting precision forging and machining process, these fittings feature stable structure, high pressure resistance, good sealing performance and easy installation. The 3 way tee design allows smooth branching and distribution of fluid, while the male JIC union ensures firm connection, easy assembly and disassembly with matching pipes and components. Strict dimensional control guarantees high compatibility and interchangeability with standard hydraulic pipes and fittings.
With stable mechanical properties and reliable performance, they are widely used in hydraulic systems, machinery equipment, automotive engineering, construction machinery, industrial piping and fluid transmission systems. The proper weight design ensures both structural strength and convenient transportation and installation. These galvanized carbon steel JIC branch adapters are ideal for stable, safe and long‑term operation in various pipeline connection and branching applications.
Product Description
Product Name
 Galvanized Carbon Steel JIC Union Branch 3 Way Tee Adapter for Hydraulic Piping System
Material
#45 Steel
Available Size
1/4" to 1"
Thread
JIC
Each Weight
0.045 to 0.545 KG
Surface Treatment
CR3TM
Standard
SAE
Galvanized Carbon Steel JIC Union Branch 3 Way Tee Adapter for Hydraulic Piping System
Galvanized Carbon Steel JIC Union Branch 3 Way Tee Adapter for Hydraulic Piping System
Essential details
Place of Origin:
China
Brand Name:
TOBO
Model Number:
2703
Technics:
CNC Machining
Connection:
Male
Shape:
Tee
Head Code:
Hexagon
Material:
#45 Steel
Available Size:
1/4" to 1"
Thread Type:
JIC
Surface treatment:
Zinc Plating
MOQ:
10 pcs
Delivery term:
5-30 days
Shipping:
By express/air/sea
Certificate:
ISO9001:2015
Each Weight:
0.045 to 0.545 KG
Size of each box:
23*23*13cm

Packaging & delivery

Selling Units:
Single item
Single package size:
16X6X9 cm
Single gross weight:
1.500 kg
Package Type:
1. all male sides will be capped by plastic cap.
2. if the products in the carton are the same part number, we use one plastic bag; if not, we will package them separately in cartons.
3. we usually use our standard carton to package.
4. all cartons will be put into wooden box finally.
Picture Example:
Lead time:
Quantity(pieces) 1 - 10000 >10000
Lead time (days) 3 To be negotiated

FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacturer, we had been produced valves and fittings. So we have advantage in price. We also
supply OEM.

Q2: Do you have any MOQ limit for order?
A: The MOQ 10 pcs.

Q3:What is the delivery time?
A: Samples send out during 3 days if the products are in stock.
Normal Order send out during 2 weeks usually.

Q4:What's the payment?

T/T,Paypal,Western Union.
