Petroleum UNS S31603 Welding Ring Alloy Steel Flanges
Petroleum UNS S31603 Welding Ring Alloy Steel Flanges
Petroleum UNS S31603 Welding Ring Alloy Steel Flanges
Petroleum UNS S31603 Welding Ring Alloy Steel Flanges
Petroleum UNS S31603 Welding Ring Alloy Steel Flanges
Petroleum UNS S31603 Welding Ring Alloy Steel Flanges
Specifications
Brand Name :
TOBO
Model Number :
flange
Certification :
SGS BV ROHS etc
Place of Origin :
China
MOQ :
1pcs
Price :
according to the inquiry
Payment Terms :
T/T, Western Union
Supply Ability :
200tons/month
Delivery Time :
15-30 days
Packaging Details :
wooden or carton
Standard or nonstandard :
Standard
Standard :
DIN,ANSI,ISO,ASME,JIS
Size :
DN 10 to DN 3000 MM
Material :
Stainless Steel,Alloy Steel,Copper,carbon duplex stainless alloy steel cs ss
Product name :
welding neck flange,Pipe Flange,Stainless steel flange
Application :
Petroleum
Pressure :
Class150/300/600/9001500/2500
Type :
weld neck flange
Surface treatment :
Heat treatment,Galvanized,customize
Packing :
Wooden Case,Plywood\wooden Pallets,palletsor as the customers requirements
Description

1.4404 / UNS S31603 MATERIAL WELDING RING WITH COLLAR EN 1092-1:2007 TYPE 35-PN 10 FLANGE

Standard Reference
  • DIN 2526
  • DIN 2500
  • DIN 2519
  • DIN 2501
Pressure Rate 150#, 300#, 600#, 900#, 1500#, 2500#
Value-Added Services Oil Black Paint, Antirust Paint, Cold, and Hot Dip Galvanized, Yellow Transparent, Zinc Blind
Dimensions EN 1092-1 Type 35
Material P250GH, 1.4541, S235JRG2, 1.4571
Techniques of Production Machined, Forged, and Heat Treated
Equipments Bending Machine, Press Machine, Sand-Blasting machine, Pushing Machine, Electric Bevelling Machine, etc.

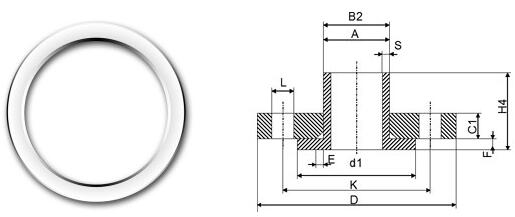

Dimensions Of EN 1092-1 Type 35 Welding Ring

Petroleum UNS S31603 Welding Ring Alloy Steel Flanges

DN A d1 H4 F S Sp kg
200 219,10 268 62 11 6 2,6 3,90
250 273,00 320 68 12 8 3,2 5,80
300 323,90 370 68 12 8 3,2 6,80
350 355,60 430 68 13 8 3,2 9,50
400 406,40 482 72 14 8 3,2 11,60
450 457,00 532 72 15 8 3,6 15,00
500 508,00 585 75 16 8 4 15,90
600 610,00 685 80 18 10 5 23,00
700 711,00 800 80 20 10 6,3 30,90
800 813,00 905 90 20 12 6,3 41,50
900 914,00 1005 95 22 12 8 50,00
1000 1.016,00 1110 95 24 12 8 58,90
1200 1.219,00 1330 115 26 16 10 93,20

Petroleum UNS S31603 Welding Ring Alloy Steel Flanges

One Of The Top Welding Neck Flange EN 1092-1 Type 35 Manufacturers In India, Check Availability Welding Ring EN 1092-1 Type 35.

Petroleum UNS S31603 Welding Ring Alloy Steel Flanges

What Is EN 1092-1 Type 35 Flange

We manufacture many different types of flanges in this specification. The Flange EN 1092-1 Type 35 can be a slip on, welded neck, blind or lap joint in type. The EN 1092-1 Type 35 Slip On Flange can be of raised face or flat face depending on the application requirement and we produce all of them. The slip on flanges are used to make the fitting quickly by allowing the pipes to slip through them and then welding them in the needed point. The EN 1092-1 Type 35 Blind Flange is used to end the pipeline with a strong closure. Please contact us for further product details and costs.

Petroleum UNS S31603 Welding Ring Alloy Steel Flanges
