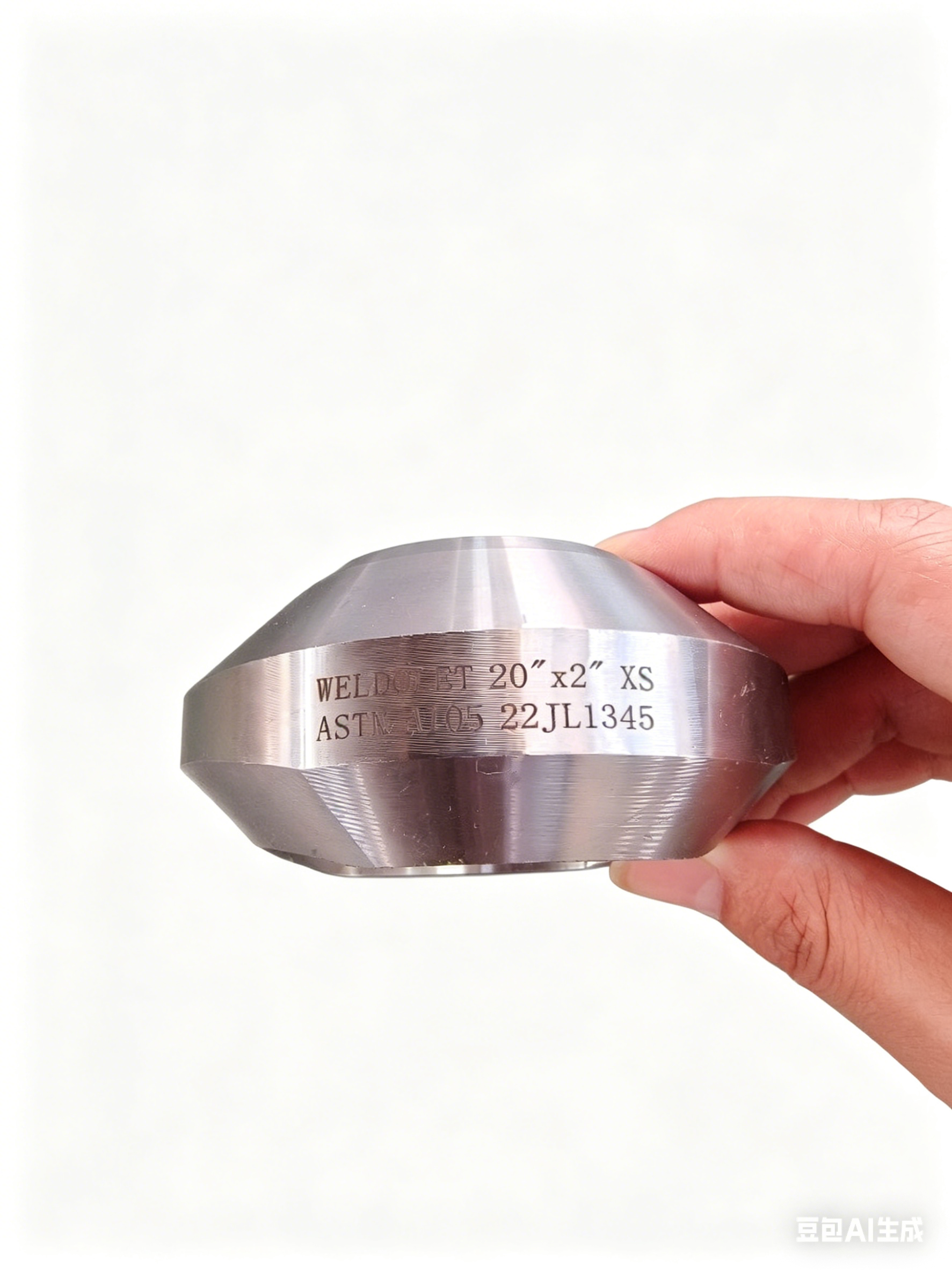

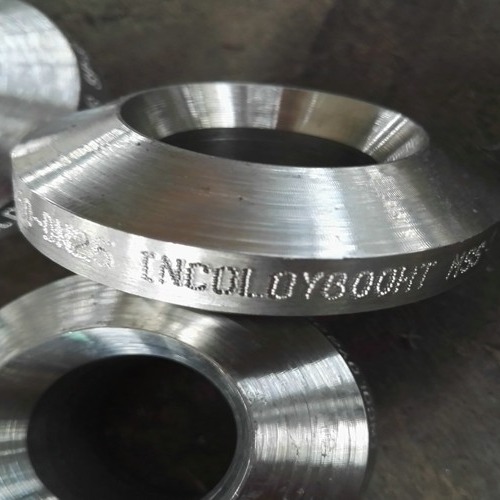

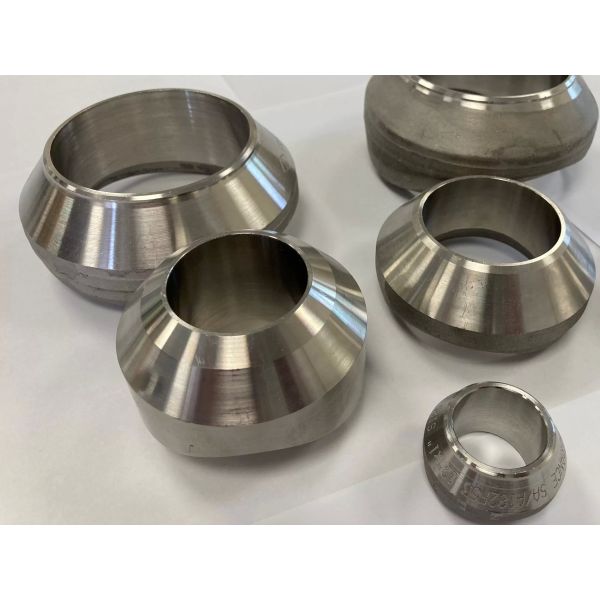

Nickel Alloy Weldolet Pipe Fittings Monel 400 Class 6000# ASME B16.11
Nickel Alloy Weldolet Pipe Fittings Monel 400 Class 6000# ASME B16.11
Nickel Alloy Weldolet Pipe Fittings Monel 400 Class 6000# ASME B16.11
Nickel Alloy Weldolet Pipe Fittings Monel 400 Class 6000# ASME B16.11
Specifications
Model Number :
Monel 400
Color :
Silver
MOQ :
1PC
Delivery Time :
15-30 Workdays
Manufacturingprocess :
Forging, Machining, Heat Treatment
Payment Terms :
T/T,Western Union
Material :
Monel400
Pressure :
CL150
Standard :
ASME B16.11
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Price :
Negotiable
Size :
Customized Size
Supply Ability :
10Ton/Month
Name :
Weldolet
Place of Origin :
China
Brand Name :
TOBO
Packaging Details :
Standard Shipping Package
Description

Nickel Alloy Weldolet Pipe Fittings Monel 400 Class 6000# ASME B16.11

1. Product Overview & Core Advantages

This Monel 400 nickel alloy weldolet is a high-pressure branch pipe fitting manufactured strictly following ASME B16.11 standard. Monel 400 material has excellent resistance to hydrofluoric acid, salt water and alkaline medium corrosion, far better than ordinary carbon steel and stainless steel weldolets. It adopts integrated forging molding without internal cracks or pores, with high structural strength to bear Class 6000# heavy load pressure. The welding end is precisely machined with smooth transition surface, which can be fully fused with main pipes and branch pipes to form an integrated connection structure. It avoids weak points caused by traditional saddle welding, effectively preventing leakage under long-term high-pressure and corrosive working conditions. Every weldolet passes chemical composition test and pressure tightness inspection before delivery to meet strict industrial engineering standards.

2. Technical Parameter Table

Parameter Item Specification Details
Material Grade Monel 400 Nickel Alloy
Manufacturing Standard ASME B16.11
Product Type Weldolet (Branch Connection Fitting)
Pressure Class 6000#
Connection Type Butt Welding
Available Sizes 1/2" – 24" Customized
Main Features High pressure resistance, acid & salt corrosion resistant, one-piece forged, leak-proof
Suitable Medium Brine, hydrofluoric acid, alkaline liquid, marine chemical fluid

3. Product Function & Application

Weldolet is used to create reliable branch outlets on main pipelines without cutting or damaging the main pipe structure. It realizes stable shunt delivery and strengthens the joint bearing capacity. It is widely applied in offshore platforms, chemical corrosion-resistant pipelines, seawater desalination equipment, oil & gas high-pressure piping and metallurgical industry medium transmission systems.

4. Packaging, Trading & After-sales Support

All weldolets are wrapped in anti-rust plastic film, padded with shockproof foam and packed in export wooden cases to avoid collision and oxidation during sea transportation. We support multiple payment methods and adjustable delivery time, custom sizes and third-party inspection are available. For quality defects, wrong specifications or transit damaged goods, free return and exchange service is provided. Please contact us to get bulk discount, technical drawings and customized solutions for your project.
