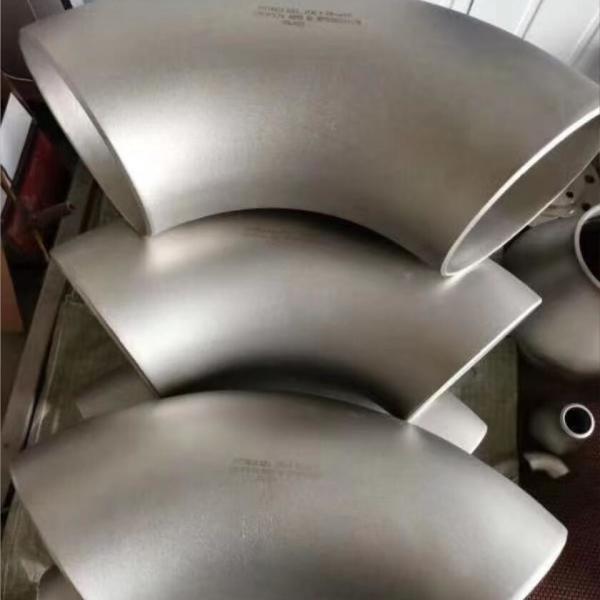

ASME B16.9 Titanium Grade 2 Ti Elbow 90 Degree R-1.5d 60.3*2.77mm DN50 Sch10
ASME B16.9 Titanium Grade 2 Ti Elbow 90 Degree R-1.5d 60.3*2.77mm DN50 Sch10
Specifications
Brand Name :
TOBO
Model Number :
DN15-1200
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1pcs
Price :
Depending on quantity
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3,0000pcs per month
Delivery Time :
10-50 days depending on quantity
Packaging Details :
Standard export sea-worthy packing
Type :
1D,1.5D,3D
Size :
Sch5s~Sch160
Surface Finished :
Sand Blasting
Test :
X-ray,P/T
Material :
Inconel600
Description

ASME B16.9 Titanium Grade 2 Ti Elbow 90 Degree R-1.5d 60.3*2.77mm DN50 Sch10

n a piping system, elbow is a piece of pipe that changes the direction of the pipe.According to the Angle, there are 45° and 90°180° three most commonly used, in addition according to the engineering needs also include 60° and other abnormal Angle elbow.Elbow materials are cast iron, stainless steel, alloy steel, calcined cast iron, carbon steel, non-ferrous metals and plastics, etc.Pipe connection methods include: direct welding (the most common way) flange connection, hot melt connection, electric melt connection, thread connection and socket type connection.According to the production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow and so on.Other names :90 degree bend, right Angle bend, love bend and so on.

Product Description

Bending degree 30,45,60,90,120.180 degree
Type R=1D,1.5D,3D
equal and reducing
long radius and short radius
Size DN15~1200,NPS1/2~48”,Sch5s~Sch160
Material

GR1,GR2,GR7,N200/201,N6,

Inconel600,Monel400,Hastelloy-C276
Standard

ASTM B363,ASME B16.9, ANSI B16.5

HG/T3651
Technics Welded, Seamless
Surface Finished Sand Blasting,Polishing,Pickling
Test X-ray,P/T

DN NPS OD(mm) Sch10s Sch40s
15 1/2 21.3 2.11 2.77
20 3/4 26.7 2.11 2.87
25 1 33.4 2.77 3.38
32 11/4 42.2 2.77 3.56
40 11/2 48.3 2.77 3.68
50 2 60.3 2.77 3.91
65 21/2 73.0 3.05 5.16
80 3 88.9 3.05 5.49
100 4 114.3 3.05 6.02
150 6 168.3 3.40 7.11
200 8 219.1 3.76 8.18
250 10 273.0 4.19 9.27
300 12 323.8 4.57 9.53
350 14 355.6 4.78 —
400 16 406.4 4.78 —
450 18 457 4.78 —
500 20 508 5.54 —
600 24 610 6.35 —

ASME B16.9 Titanium Grade 2 Ti Elbow 90 Degree R-1.5d 60.3*2.77mm DN50 Sch10ASME B16.9 Titanium Grade 2 Ti Elbow 90 Degree R-1.5d 60.3*2.77mm DN50 Sch10ASME B16.9 Titanium Grade 2 Ti Elbow 90 Degree R-1.5d 60.3*2.77mm DN50 Sch10
