Alloy 925 Nickel Alloy Steel Pipe Fittings Concentric Reducer SMLS 2 X 1.1/2
Alloy 925 Nickel Alloy Steel Pipe Fittings Concentric Reducer SMLS 2 X 1.1/2
Alloy 925 Nickel Alloy Steel Pipe Fittings Concentric Reducer SMLS 2 X 1.1/2
Alloy 925 Nickel Alloy Steel Pipe Fittings Concentric Reducer SMLS 2 X 1.1/2
Specifications
Brand Name :
Metal
Model Number :
Alloy 925
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 PC Per Month
Delivery Time :
15 Working days
Packaging Details :
Regular shipping packaging or depends on customer's requirement
Product Name :
Concentric Reducer
Material :
Alloy 925
Standard :
ASME B 16.9
Type :
Butt Welding
Technic :
Seamless
Wall Thickness :
SCH40
Outer Diameter :
2"x1.1/2''
Package :
Ply-Wooden Case
Description

Alloy 925 Nickel Alloy Pipe Fittings Concentric Reducer SMLS 2'' x 1'' SCH80

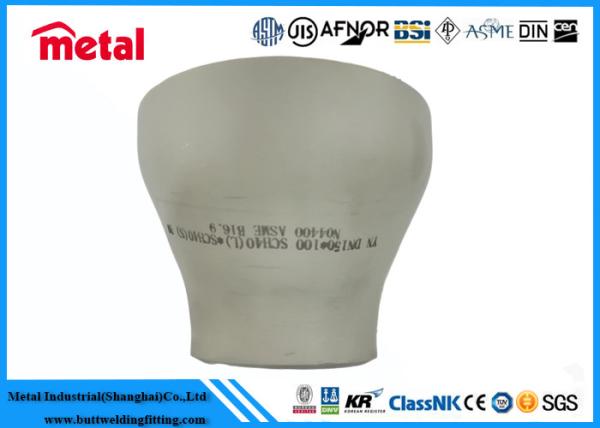

Concentric Reducer

A Concentric Reducer joins the tube sections on the same axis.

They connect unequal size pipes that have a common centerline and are used for TC transitions in vertical tubing.

Product Name Concentric Reducer
Size 1/2’’~10’’(Seamless);12’’~72’’(Welded)
Thickness Sch5S~Sch160XXS
Manufacture Standard:

ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90,

GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
Nickel alloy steel Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Application

Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical),

chemical and pharmaceutical, pulp and paper, fertilizer, desalination, nuclear, electric power, boiler,heat exchange,

metallurgy, refinery,machinery,steel fabrication,shipbuilding, water disposal, construction, aviation,textile, ect.

Our advangtage

1) Raw material use 100% material steel

2) Good service

3) Competive price

4) Fast delivery

5)High quality products

Chemical Composition

Alloy Ni C Mn Fe S Si Cu Cr Al Ti Nb Mo
Nickel 200 99.5 0.08 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Nickel 200 99.5 0.01 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Monel 400 66.5 0.2 1 1.2 0.01 0.2 31.5 -- -- -- -- --
Monel 401 42.5 0.05 1.6 0.4 0.008 0.1 -- -- -- -- --
Monel K500 66.5 0.1 0.8 1 0.005 0.2 29.5 -- 2.7 0.5 -- --
Inconel 600 76 0.08 0.5 8 0.006 0.2 0.2 15.5 -- -- -- --
Inconel 601 60.5 0.05 0.5 14.1 0.007 0.2 0.5 23 1.4 -- -- --
Inconel 718 52.5 0.04 0.2 18.5 0.008 0.2 0.2 19 0.5 0.9 5.1 3
Inconel X-715 73 0.04 0.5 7 0.005 0.2 0.2 15.5 0.7 2.5 1 --
Incoloy 800 32.5 0.05 0.8 46 0.008 0.5 0.4 21 0.4 0.4 -- --
Incoloy 803 32.0-
37.0		 0.06-
0.10		 ≤1.5 ≤0.015 ≤1.0 ≤0.75 25.0-
29.0		 0.15-
0.60		 0.15-
0.6		 -- --
Incoloy 825 42 0.03 0.5 30.4 0.02 0.2 2.2 21.5 0.1 0.9 -- 3

Our Service

Why Choosing Metal Industrial:

-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Danieli Metallurgical Equipment
-Experienced Professinonals on Communications

Packaging & Shipping

Packaging: In wooded cases , pallets or according to clients' requirements
Shipping: Tianjin port, Shanghai port and the other main ports in China

Alloy 925 Nickel Alloy Steel Pipe Fittings Concentric Reducer SMLS 2
