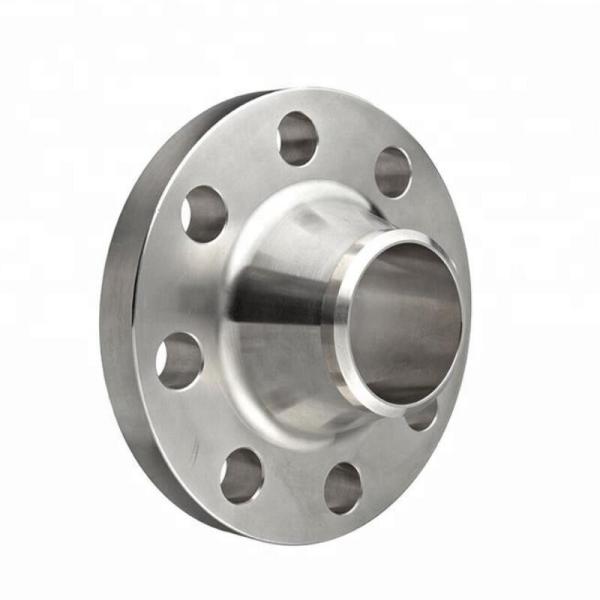

DIN Flange Dimensions DN80 PN16 Stainless Steel WN Weld Neck Flange
DIN Flange Dimensions DN80 PN16 Stainless Steel WN Weld Neck Flange
DIN Flange Dimensions DN80 PN16 Stainless Steel WN Weld Neck Flange
DIN Flange Dimensions DN80 PN16 Stainless Steel WN Weld Neck Flange
Specifications
Brand Name :
TOBO
Model Number :
Flange TOBO-276
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1
Price :
USD Negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
25 work days
Packaging Details :
Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Material :
Alloy
Size :
1''-60''
Class :
150#-3000#
Connection :
Welding
High light :
DN2000 Stainless Steel ANSI B16.5 Galvanized Copper handrail floor flange and fittings
Description

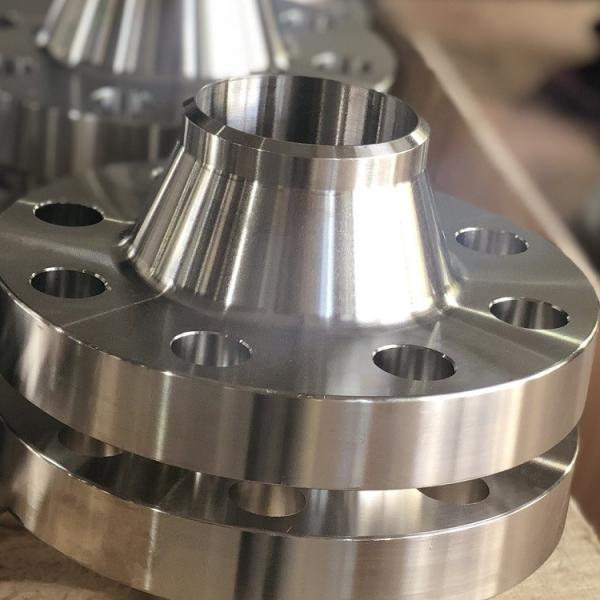

DIN Flange Dimensions DN80 PN16 Stainless Steel WN Weld Neck Flange

DIN Flange Dimensions DN80 PN16 Stainless Steel WN Weld Neck Flange

ø D b g m a J* h k Holes l Kg.
1/2" 88,9 11,1 34,9 30,2 21,3 15,7 47,6 60,3 4 15,9 0,500
3/4" 98,4 12,7 42,9 38,1 26,7 20,8 52,4 69,8 4 15,9 0,700
1" 107,9 14,3 50,8 49,2 33,5 26,7 55,6 79,4 4 15,9 1,100
1 1/4" 117,5 15,9 63,5 58,8 42,2 35,1 57,1 88,9 4 15,9 1,500
1 1/2" 127,0 17,5 73,0 65,1 48,3 40,9 61,9 98,4 4 15,9 1,800
2" 152,4 19,0 92,1 77,8 60,3 52,6 63,5 120,6 4 19,0 2,700
2 1/2" 177,8 22,2 104,8 90,5 73,1 62,7 69,8 139,7 4 19,0 4,400
3" 190,5 23,8 127,0 107,9 88,9 78,0 69,8 152,4 4 19,0 5,200
3 1/2" 215,9 23,8 139,7 122,2 101,6 90,2 71,4 177,8 8 19,0 6,400
4" 228,6 23,8 157,2 134,9 114,3 102,4 76,2 190,5 8 19,0 7,500
5" 254,0 23,8 185,7 163,5 141,2 128,3 88,9 215,9 8 22,2 9,200
6" 279,4 25,4 215,9 192,1 168,4 154,2 88,9 241,3 8 22,2 11,000
8" 342,9 28,6 269,9 246,1 219,1 202,7 101,6 298,4 8 22,2 18,300
10" 406,4 30,2 323,8 304,8 273,0 254,5 101,6 361,9 12 25,4 25,000
12" 482,6 31,7 381,0 365,1 323,8 304,8 114,3 431,8 12 25,4 39,000
14" 533,4 34,9 412,7 400,0 355,6 336,5 127,0 476,2 12 28,6 51,000
16" 596,9 36,5 469,9 457,2 406,4 387,3 127,0 539,7 16 28,6 60,000
18" 635,0 39,7 533,4 504,8 457,2 438,1 139,7 577,8 16 31,7 71,000
20" 698,5 42,9 584,2 558,8 508,0 488,9 144,5 635,0 20 31,7 88,000
22" 749,3 46,0 641,2 609,6 558,8 539,7 149,2 692,1 20 34,9 102,000
24" 812,8 47,6 692,1 663,6 609,6 590,5 152,4 749,3 20 34,9 119,000

Product Range:

WNRF Flanges Size : 1/8" NB TO 48"NB.

WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Stainless Steel WNRF Flanges: ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L,

Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181

Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal

WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,

DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
