ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface
ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface
ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface
ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface
ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface
ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface
ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface
ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface
Specifications
Brand Name :
Eternal Bliss
Model Number :
EB0013
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
10 Kilograms
Price :
$130.00 - $205.00/ Kilogram
Payment Terms :
by T/T or L/C, Western Union
Supply Ability :
100,000,000.00
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Pallets
Product Name :
99.95% Niobium Rod
Material :
Niobium
Standard :
ASTM B392
Size :
Customize
Application :
Industrial, Electronic, Jewelry
Melting Point :
2468°C
Boiling Point :
4742°C
Tensile Strength :
125Mpa
Yield Strength :
73Mpa
Density :
8.57g/m3
Surface :
Bright, Polished
Technology :
Cold Rolled, Hot Rolled, Extruded
Description

ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Pure Niobium Round Bar Price

ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface

Product Name

High Purity Superconductor Use Niobium Rod Niobium Bar Niobium Price Per Kg

Purity

Nb ≥99.95%

Grade

R04200, R04210, R04251, R04261, Nb1, Nb2

Standard

ASTM B392

Size

Customized size

Melting point

2468 degree centigrade

Boiling point

4742 degree centigrade



Advantage

♦ Low Density and High Specificate Strength
♦ Excellent Corrosion Resistance
♦ Good resistance to effect of heat
♦ Nonmagnetic and Non-toxic♦ High melting point, good anti-corrosion, excellent super-conduction and other unique characteristics.



Application

♦ Electronic industry, Chemistry, Electronical, Pharmaceutical industry.
♦ Steel, Ceramics, Electronics, nuclear energy industries and superconductor technology.
♦ Super condouctous, metled cast ingots and alloying agents.
♦ Widely used in manufacturing various kinds of alloy steel, high temperature alloy, optical glass, cutting tool, superconducting
materials and other industries.

Dimension Tolerance:

Diameter (mm)

Tolerance of Diameter (mm)

Length (mm)

Tolerance of Length (mm)

3.0-4.5

±0.05

200-1500

+5

>4.5-6.5

±0.10

200-1500

>6.5-10.0

±0.15

200-1500

>10-16

±0.20

200-2000

+20

>16-18

±1.0

200-2000

>18-25

±1.5

200-2000

>25-40

±2.0

200-2000

>40-50

±2.50

200-2000

>50-65

±3.00

200-2000

>65-150

±4.00

200-1000

Grade
Tensile strength δbpsi (MPa), ≥
Yield strength δ0.2, psi (MPa),≥
Elongation in 1"/2" gage length, %, ≥
RO4200-1
RO4210-2
18000 (125)
12000 (85)
25

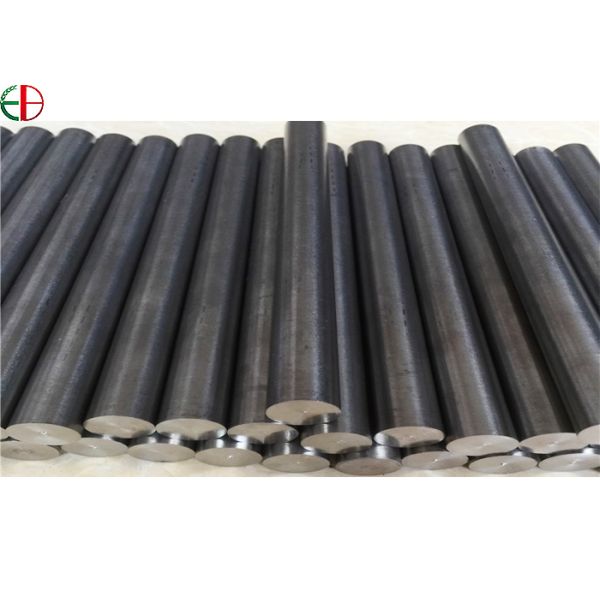

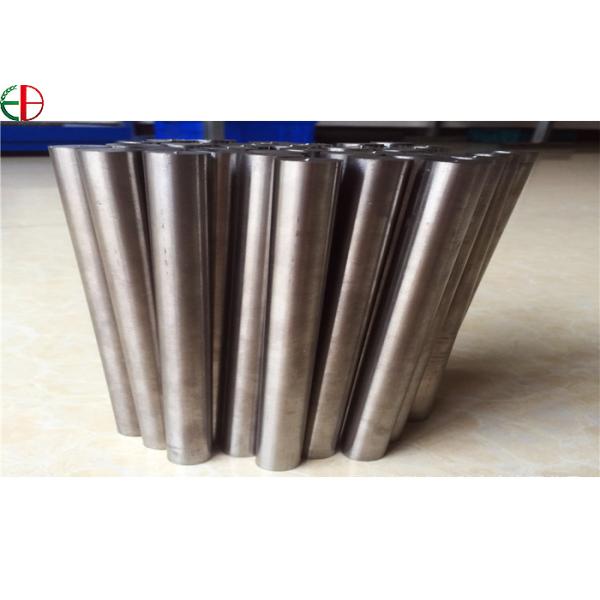

Product Photos:

ASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surfaceASTM B392 R04200 Type1 Nb1 99.95% Niobium Rod Bar polished surface
