Specifications
Brand Name :
XUNSHI
Model Number :
2J10
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
20kg
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500kg per week
Delivery Time :
45-50 days
Packaging Details :
Plywood case
Density :
8.1g/cm3
Melting range :
1530-1600°C
Cuire piont :
860°C
Resistance rate :
0.71μΩ·m
Forms of supply :
Bar, wire, strip
Thickness range :
0.05~2.0mm
Width :
20~200mm
Product Name :
Permanent Magnet Alloy
Description

XUNSHI is a professional supplier of 2J10 permanent magnetic alloy in Bars, strips, Wire etc.

Chemical compositions

Elements Weight(%)
C ≤0.12
P ≤0.25
S ≤0.02
Si ≤0.70
Mn ≤0.70
Co 51.0~53.0
V 9.5~10.5
Ni ≤0.70
Fe Rem

2J10 Magnetic performance

Hμ(kA/m)

(Hμ/Oe)

Bμ/T

(Bμ/Gs)

Pμ(104J/m3) Kμ
14.4~18.4(180~230) 0.9~1.2(9000~12000) 3.0 0.58

Application

2J10 is used to produce high efficiency hysteresis motor rotor and hysteresis brake. 2J10 wire can be used to make weigand wire in weigand sensor.

The corrosion resistance of 2J10 is good and it does not rust in the atmosphere.

2J10 Density:8.1g/cm3

Forms of supply

Strip: thickness: 0.05-1.0mm

Width 5-200mm

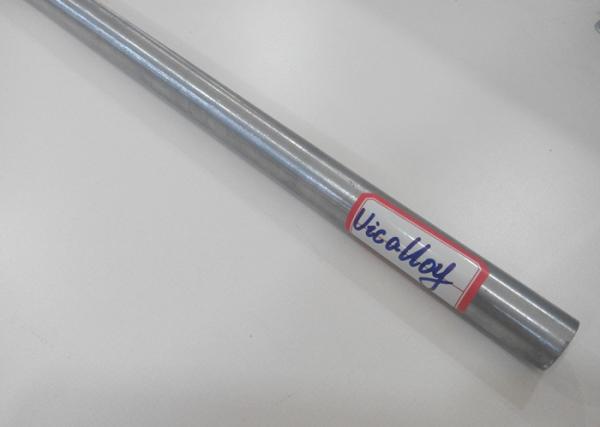

Round bar Specification range: Φ5-200mm

Wire Specification range: Φ0.1~6.0mm

2J10 Similar model: Vicalloy I
