Specifications
Model NO. :
NM217
Product Name :
Mitsubishi PLC Metal Roof Roll Forming Machine
Raw Material :
PPGI Sheet. Gi Sheet
Thickness Range :
0.3-1.0mm
Machine Power :
5.5kw+4kw
Work Speed :
10-15m/Min
Shaft Material :
45# Forged Steel
Diameter of Shaft :
76mm
Machine Weight :
About 6 Tons
Warranty :
12 Months
Afer-Sales Service :
Engineer Is Availble to Overseas
Trademark :
NEXUS MACHINERY
Transport Package :
Plastic Film & Steel Wire Fixed
Specification :
6500mm*1500mm*1500mm(L*W*H)
Origin :
China
HS Code :
8455221000
Port :
Tianjin, China
Supply Ability :
30 Sets / Months
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Tile Type :
Colored Steel
Certification :
CE, ISO
Condition :
New
Customized :
Customized
Usage :
Roof, Wall
Transmission Method :
Electric
Description

Product Description

Customer Question & Answer
Ask something for more details

Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing

Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.3mm to 1.0mm. We adopt guide pin with gearbox transmission type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing


2. Profile Drawings for Reference:
Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing

3. Technical parameters:
Manual decoiler
Capacity5ton
Feeding widthMAX 1300mm
Expanding range460-520mm
Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing
Main motor power4kw
Drive1'' single chain
Type:Wall board
Main shaft dia¢70mm
material45# forge steel and quenched
Roller material45# high grade forge steel ,chrome coated 0.05mm
Roll station14-18 groups
Raw material0.3-1.0mm
Coil width 1000mm
Working speed10m--15m/min(Exclude cutting time)
Length Tolerance±1.5mm
Weight of machineAbout 6 ton
Size of machineAbout 7500×1800×1500mm L x W x H
Color of machineYellow and Blue
CoderOmron, made in Japan
ControlPLC Mitsubishi, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating paneltouching screen
Other electrical elementSchneider
CuttingHydraulic cutting. Auto cutting when reach the set length
Hydraulic power3KW
Blade materialCr12mov,quenched 58°-62°
Working pressure16mpa
Cutting tolerance+/- 1.0mm

4. Equipment list :
No.Product Name QTY
15T Manual decoiler 1
2Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing
(Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		 1
3Passive Output table 2
Sum 4

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

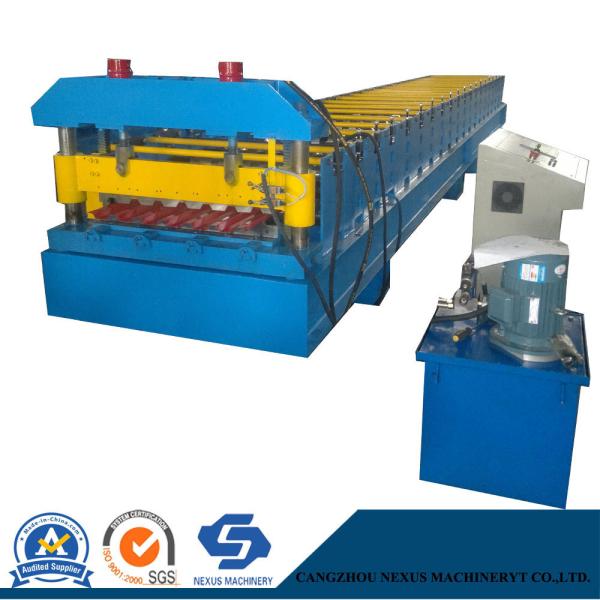

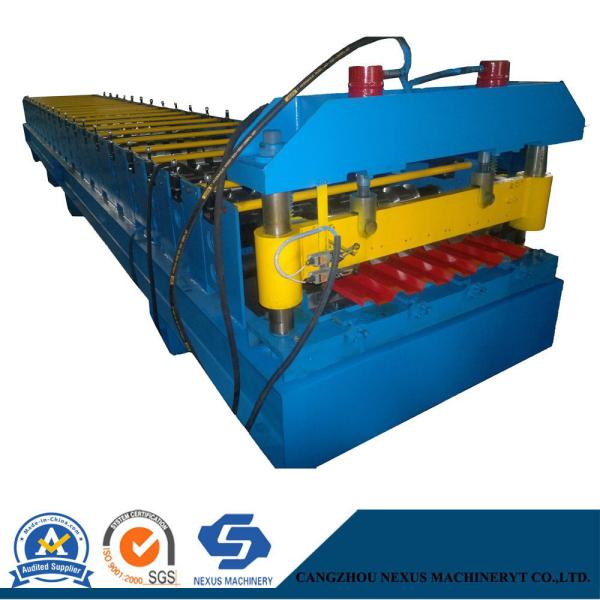

6. Photos of Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing for Reference:
Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing
Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing
Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing
Packing Photos:
Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing
Exhibition Photos:
Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing
7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.

Mitsubishi PLC Metal Roof Roll Forming Machine Automatic Cutting for Roofing
