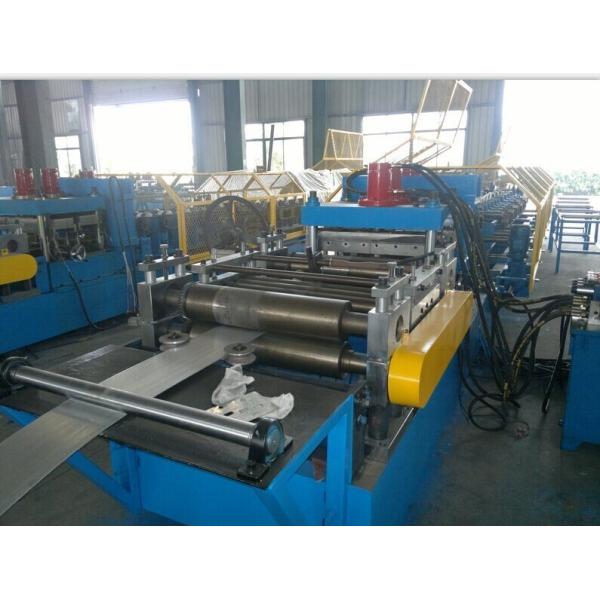

C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
Specifications
Model NO. :
NX80--300
Coil Material Thickness :
1--3mm
Processing Material :
Galvanized Steel
Roller Material :
Cr12MOV
Trademark :
Nexus Machinery
Transport Package :
Plastic Film
Specification :
80-300
Origin :
Cangzhou
Port :
Tianjin, China
Supply Ability :
10
Payment Terms :
L/C, T/T, Western Union, Money Gram
Warranty :
1 Year
Certification :
CE, ISO9001
Customized :
Customized
Condition :
New
Control Type :
Electric
Automatic Grade :
Automatic
Description

Product Description

Customer Question & Answer
Ask something for more details

C and Z Purlin Steel Channel Fast Quick Change
Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine

C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine

Echnical parameters:

ConfigurationsManual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control SystemPLC Inverter Encoder Touch Screen
Main Frame400mm H-Beam
Total Power22 kw
Power Supply380V, 3-Phase,50Hz
Forming Speed12-24m/min
Roll Station18 stands
Decoiler capacity3.5 tons
Roller Diameter80mm
Effective Width80-300mm
Feeding Thickness1-3.0mm
Backboard Thickness20mm
Cutter StandardGCr12
Roller StandardGcr15#
Overall SizeAbout 8500×1000×1400mm
Total WeightAbout 10T
CustomAccording to customer's requirements

C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine


ABOUT US:

C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
C and Z Purlin Steel Channel Fast Quick Change Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine
