Specifications
Model Number :
XH-12057ABM
Application :
Ideal for moving signs, industrial instruments, and elevator displays
Certification :
RoHS, REACH
Lifespan :
50,000 hours
Payment Terms :
T/T,Western Union
Surface Color: :
Black
Display Function :
Graphics
Supply Ability :
60000pcs/Day
Certificate: :
RoHS/REACH
MOQ :
1000 pieces
Delivery Time :
15-20 days
Electricity Polarity: :
Common Anode/Cathode all available
Packaging Details :
Inserting foam cotton and then into the carton box
Brand Name :
Newshine
Product name :
LED Dot Matrix Display
Place of Origin :
Guangdong, China
Warranty :
2 Years
Description
Parameter Specifications
Part No. XH-12057ABM
Matrix Dimension 5x7 (22.8x39.1mm)
Dot Diameter 3mm
Emitting Color Red / Green / Yellow / Blue / White / Bi-color / RGB

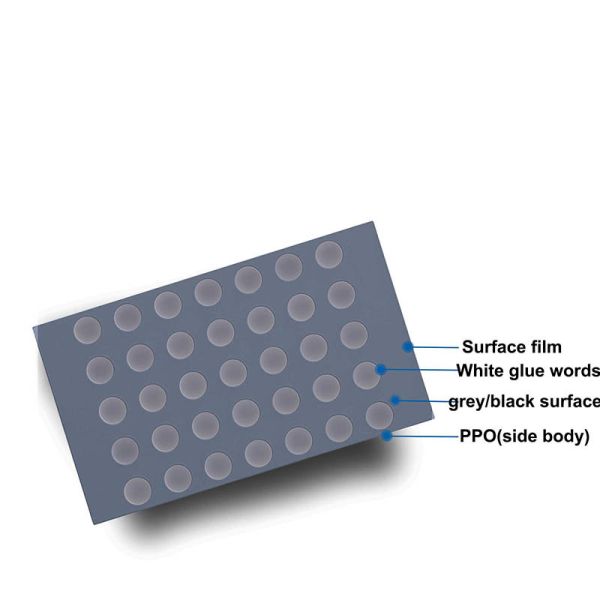

Surface Color Black / Gray face with white/clear dots
Polarity Common Anode (CA) / Common Cathode (CC)
Forward Voltage (VF) Red: 1.8V - 2.2V | Green/Blue: 3.0V - 3.4V
Luminous Intensity High intensity options available (mcd tailored to requirements)
Operating Temperature -40°C to +85°C


Product Details:

22.8x39.1mm 5x7 Round Type LED Dot Matrix Display 3mm (Ultra Bright Red/Green/Blue/RGB, Common Anode/Cathode)

22.8x39.1mm 5x7 Round Type LED Dot Matrix Display 3mm (Ultra Bright Red/Green/Blue/RGB, Common Anode/Cathode)

22.8x39.1mm 5x7 Round Type LED Dot Matrix Display 3mm (Ultra Bright Red/Green/Blue/RGB, Common Anode/Cathode)

22.8x39.1mm 5x7 Round Type LED Dot Matrix Display 3mm (Ultra Bright Red/Green/Blue/RGB, Common Anode/Cathode)


Main Features:

  • High Brightness & Contrast: Delivers clear visibility even under ambient light conditions.

  • Low Power Consumption: Optimized energy efficiency for long-term continuous operation.

  • Excellent Uniformity: Advanced chip matching ensures consistent color and brightness across all dots.

  • Robust Reliability: Solid-state construction with a long lifespan of over 50,000 hours.

  • Wide Viewing Angle: Provides excellent readability from multiple perspectives.

  • RoHS & CE Certified: Compliant with international environmental and safety standards.


Applications:

  • Digital Signage: Moving message signs, bus/train destination displays, and billboard tickers.

  • Industrial Automation: Instrument panels, weighing scales, and control systems.

  • Public Displays: Elevator floor indicators, queuing systems, and clocks.

  • Smart Home Appliances: Display screens for ovens, air conditioners, and smart hubs.

22.8x39.1mm 5x7 Round Type LED Dot Matrix Display 3mm (Ultra Bright Red/Green/Blue/RGB, Common Anode/Cathode)

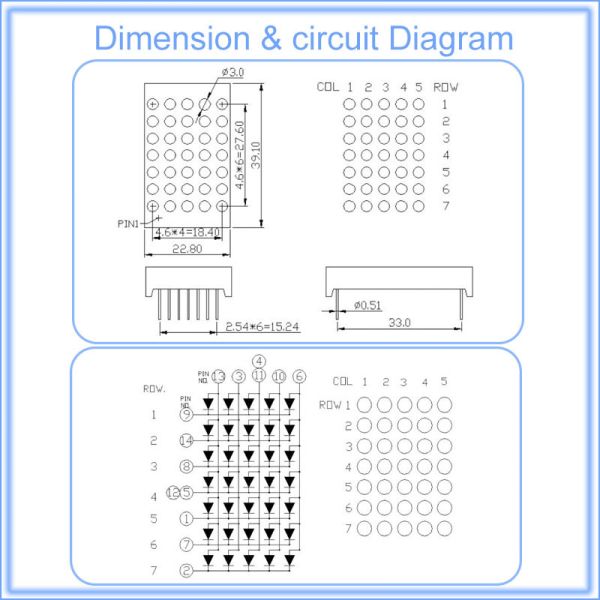

Package dimension & Internal Circuit Diagram:

22.8x39.1mm 5x7 Round Type LED Dot Matrix Display 3mm (Ultra Bright Red/Green/Blue/RGB, Common Anode/Cathode)

Packaging:
1. Using EPE foam and paper carton

2. Using blister package tube or pallet

22.8x39.1mm 5x7 Round Type LED Dot Matrix Display 3mm (Ultra Bright Red/Green/Blue/RGB, Common Anode/Cathode)
