Specifications
Capacity :
10CMB
power source :
Gas
storage / tankless :
Storage
type :
Gas Water Heaters
Brand Name :
OEM
Place of Origin :
Hubei, China
after-sales service provided :
Field Maintenance and Repair Service
App-Controlled :
No
application :
Commercial, Hotel, Household, Outdoor
Housing Material :
Stainless Steel
installation :
Freestanding
Power (W) :
1500
private mold :
No
warranty :
1 Year
Model Number :
See details
voltage (v) :
220
Function :
House Heating Cooling Hot Water
Refrigerant :
R32
COP :
4.0~4.5
Certification :
CE
Heat exchanger :
High Efficient Heat Exchanger
Color :
Color OEM
Water tank :
Enameled Stainless Steel
Sound Level :
55dB
Power Supply :
Electric
MOQ :
1
MOQ :
1 piece
Price :
$1,740 / piece
Description
Product Description

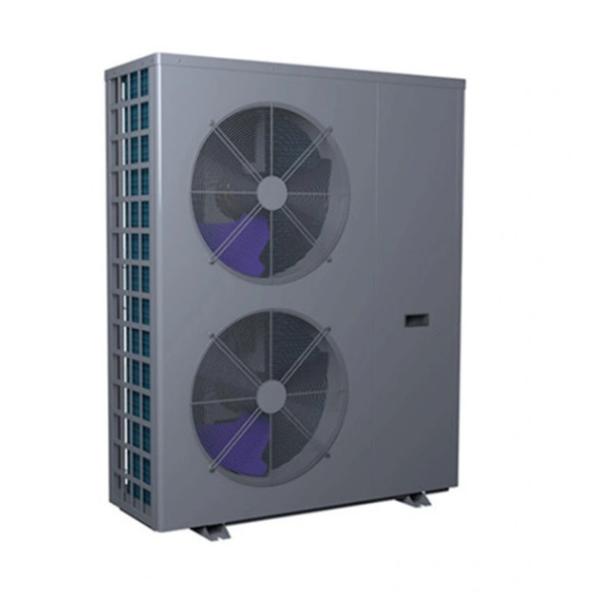

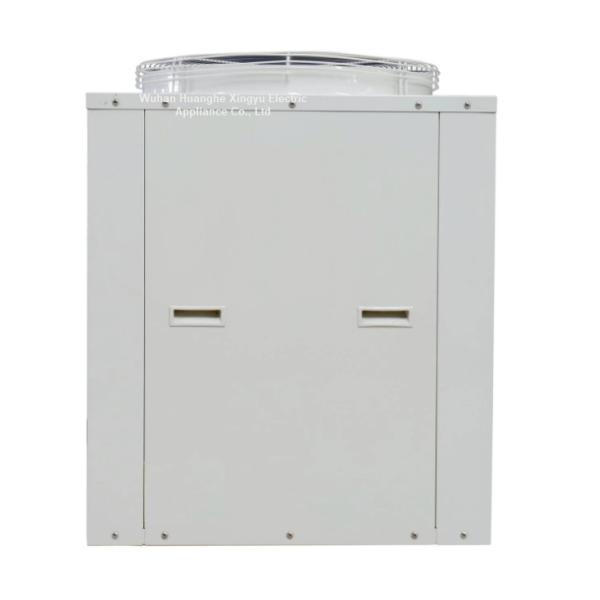

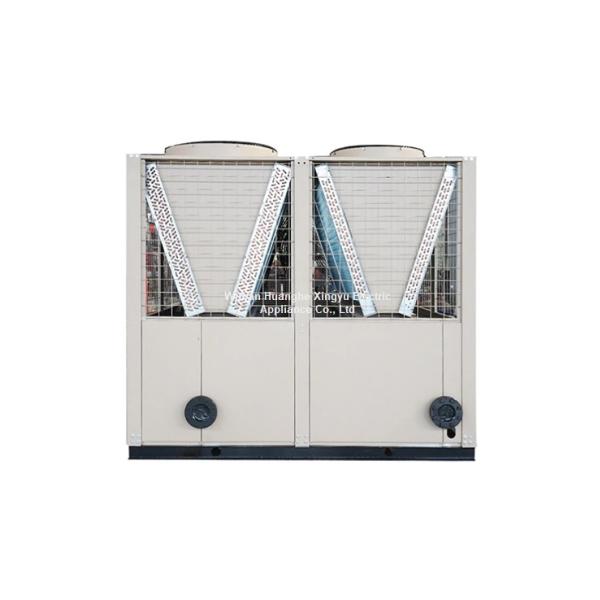

Heat Pump Water Heater for Commercial Hot Water

This heat pump functions in the same way as a heat pump with conventional refrigerants. By using as a refrigerant, the heat pump can operate much more efficiently in a high temperature range and performs more efficiently at low ambient temperatures.

Due to the maximum outlet temperature of 90°C, the heat pumps can be used for the production of domestic hot water. The heat pump in combination with buffer tanks can also be used to replace existing gas boilers for space heating. Existing central heating installations often require a minimum supply temperature of 80°C. The heat pumps are therefore an excellent device to make existing buildings more sustainable.

The heat pumps are suitable for collective heating in apartment buildings, small district heating systems, sanitary hot water production for swimming pools, sports accommodations, hotels and holiday parks. By combining the central heating system with hot water production, the Seasonal Performance Factor (SPF) becomes even better.

Specifications:

Power supply 3Ph/400V/50Hz + N + E
Max outlet temperature 90°C
Heating mode Heating only
Rated current 67 A
Maximum starting current 155 A pressure drop gas cooler ± 35-40 kPa
Maximum power input 39000 W
Refrigerant code R744
Refrigerant charge 20 kg
Noise level ≤ 68 db(A)
Maximum starting current 155 A pressure drop gas cooler ± 35-40 kPa
Water side connections 2 x 2"
Applicable ambient temperature -25~+43 ºC
Casing material Hot-dip galvanized sheet metal plate Finishing powder coating
Colour Dark grey (RAL7043)
Dimensions W2300xD2201xH2308 mm
Weight 1400 kg
TEST CONDITIONS: NOMINAL STANDARD
Ambient temperature DB/WB: 7/6°C DB/WB: 20/15°C
Inlet temperature 30°C 15°C
Outlet temperature: 80°C 60°C
Heating power 87300 W 140000 W
Power input 37400 W 38000 W
COP 2.34 3.68
Water flow: 1.55 m³/h 2.2 m³/h
FAQ

Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.

Q3: What about the lead time?

A3: 15 days for
Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what’s the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement
