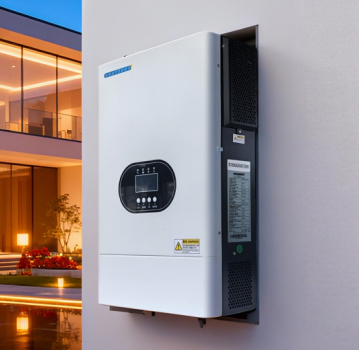

HYBRID SOLAR INVERTER LACT3.5KW-WIFI
HYBRID SOLAR INVERTER LACT3.5KW-WIFI
HYBRID SOLAR INVERTER LACT3.5KW-WIFI
HYBRID SOLAR INVERTER LACT3.5KW-WIFI
Specifications
Model Number :
LACT3.5KW-WIFI
Output Wave Form :
Pure Sine Wave
Operating Temperature :
0℃～50℃
Application :
off-grid solar system
Parallel Function :
optional
Delivery Time :
5-8 work days
Cycle Time :
≧4000 Times(100%DOD)
Mppt Efficiency :
99.5%
Payment Terms :
T/T,L/C
Solar Charge Type :
MPPT
Price :
$610-650 / piece
Operating Voltage :
140 V ~ 980 V
Parallel Capability :
Up To 9 Units (45kva)
Port :
Shenzhen
MOQ :
1 pieces
Nominal Voltage :
220/230/240VAC
Tansfer Time :
10ms (For PC), 20ms (For Home Appliance)
Product Capacity :
1-5kva
Place of Origin :
hubei,china
Brand Name :
Huanghexingyu
Maximum Pv Power :
60VDC ~ 115VDC
Mppt Max Efficiency :
99%
Description
Product Parameter
Model LACT3.5KW-WIFI
PV Input
MAX. Input Power 5200W
Max.PV Open Circuit Voltage 500vdc
MPPT Voltage Range 90-450 Vdc
Start-up Voltage 90 Vdc
Max. MPPT Input Current 18A
Max.Short-circuit Current 23A
MPPT Quantity/Strings 1/1
Optimal PV Voltage Range 240~360 V
AC Input(Grid&Generator)
Nominal Input Voltage 230Vac,L/N/PE
Input Voltage Range 90-280 Vac
Maximum Input Current 25A
Rated Input Power 5700 W
AC Frequency Range 50/60Hz(Automaticfollowing)
AC Output(On-Grid)
Rated Output Power 3500W
Max.Apparent Power 8400 VA
Nominal Output Current from Grid 18.3 A
Max.Output Current 18.3 A
Nominal Voltage/Frequency 208/220/230/240Vac,50/60Hz,L+N+PE
Automatic Switch Time 10 ms
THDV <3%(linear load)
Overload Capacity 30s@102%-110%load;10s@110%-130%load; 5s@130%-150%load;200ms@2150%load
AC Output(OFF-Grid)
Rated Output Power 3500 W
Max.Apparent Power 8400 VA
Rated Output Current 18.3A
Max.Output Current 18.3A
Nominal Voltage/Frequency 208/220/230/240Vac,50/60Hz,L+N+PE
Automatic Switch Time 10ms
Overload Capacity 30s@102%-110%load;10s@110%-130%load;5s@130%-150%load;200ms@2150%load
Battery
Battery Type Li-lon
Rated Battery Voltage 25.6V
Battery Voltage Range 20~30V
Max.Discharge Current 137A
Li-lon Battery Activation Yes
BMS Communication CAN/RS485
Max.Solar Charge Current 120A
Max.AC Charge Current 100 A
Max.Charge Current(PV+AC) 120A
Effciency
Peak Effciency 94%
MPPT EffcienCy ≥99.9%
