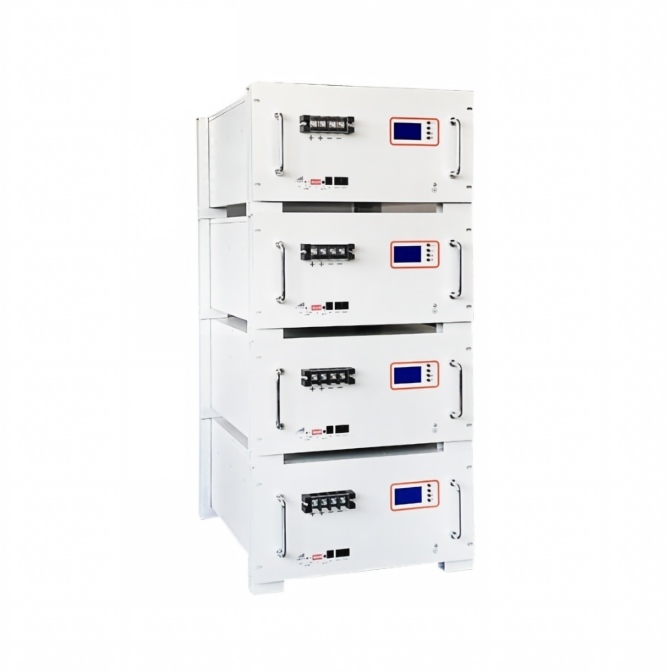

Rack-Mounted Lithium Battery Pack 10kWh Energy Storage 51.2V 100Ah / 200Ah LiFePO4 Battery for Solar Energy Storage
Rack-Mounted Lithium Battery Pack 10kWh Energy Storage 51.2V 100Ah / 200Ah LiFePO4 Battery for Solar Energy Storage
Rack-Mounted Lithium Battery Pack 10kWh Energy Storage 51.2V 100Ah / 200Ah LiFePO4 Battery for Solar Energy Storage
Rack-Mounted Lithium Battery Pack 10kWh Energy Storage 51.2V 100Ah / 200Ah LiFePO4 Battery for Solar Energy Storage
Specifications
Packaging Details :
EPE foam-lined plywood case with UN38.3 documentation, 1 pc per export-grade wooden crate
Certification :
CE, RoHS, UN38.3, MSDS
Payment Terms :
T/T
Delivery Time :
7-10 working days for sample, 20-30 days for bulk order
Supply Ability :
3000 Pieces per Month
Place of Origin :
Shenzhen, China
Brand Name :
MEISAEN
MOQ :
5 Piece
Description

GBP-R rack-mounted lithium iron phosphate solid state battery supports customized processing, built-in intelligent BMS multi-protection system with explosion-proof valve, 5000+ long cycle life, perfect for off-grid solar power storage, villa backup power, guest house power supply, island solar energy system.

Basic Product Attributes

  • Origin: Made in China
  • Battery Type: Solid State Lithium Battery
  • Model: 854 / GBP-R Series
  • Item NO.: 085
  • SKU: 215
  • Rated Voltage: 48V
  • Rated Capacity: 280Ah
  • Product Name: Rack-mounted Lithium Battery
  • Series Code: GBP-R Series Rack-mounted Lithium Battery
  • Customization Support: Yes (Custom charge/discharge current, size, connector, logo available)
  • Gross Weight: 134kg (134000g)

Core Protection Functions

Built-in all-round safety protection system:

Overcharge Protection, Over-discharge Protection, Temperature Control Protection, Short Circuit Protection, Intelligent BMS Management System, Pressure Relief Explosion-proof Valve, anti-explosion & thermal runaway prevention.
Item Parameter
Nominal Voltage 48V
Nominal Capacity 280Ah
Nominal Energy 13.44kWh
Operating Voltage Range 42V ~ 54.75V
Recommended Charging Voltage 51.75V
Recommended Discharge Cut-off Voltage 45V
Standard Charge & Discharge Current 0.5C
Max Continuous Charge/Discharge Current 0.5C, 1C Customization Available
Max Dimension (DWH) 904465252mm
Product Weight 134kg
Cycle Life Over 5000 Cycles @ 80% DOD
Protection Grade IP20
Cooling Method Natural Air Cooling / Intelligent Cooling Fan

Temperature Working Conditions

  • Operating Humidity: ≤85%RH
  • Storage Temperature: -10℃ ~ 55℃ (Recommended storage: 10℃ ~ 35℃)
  • Charging Temperature: 0℃ ~ 55℃
  • Discharging Temperature: -10℃ ~ 55℃

Available Model Options for GBP Series

24-100R / 24-200R / 48-100R / 48-200R / 48-280R / 48-314R / 51.2-100R / 51.2-200R / 51.2-280R / 51.2-314R

Key Advantages

  1. Ultra Long Service Life: 5000+ deep cycles under 80% depth of discharge, far longer than lead-acid batteries, lower long-term replacement cost.
  2. Full Safety Design: Integrated BMS + physical explosion-proof valve, avoid overcharging, short-circuit and high-temperature safety hazards.
  3. Rack-mounted Cabinet Design: Standard rack installation, neat layout, easy for series & parallel expansion for larger energy storage bank.
  4. Wide Temperature Adaptability: Stable discharge in low-temperature environment, ideal for tropical islands, coastal areas, off-grid remote houses.
  5. OEM & ODM Available: Customize current, cable terminals, housing logo, communication protocol for inverter matching.

Application Scenarios

  • Off-grid solar power system (Match 585W solar panels for daytime power generation & night power supply)
  • Villa, Guest House, Driveway Solar Lighting Energy Storage
  • Island / Caribbean Region Home Backup Power
  • Commercial Energy Storage, UPS Emergency Power Supply
  • RV, Yacht, Mobile Solar Power Station

Packing & Shipment

Standard export wooden case packing, complete UN38.3, MSDS certification for sea & air transportation, suitable for shipping to San Juan, US Virgin Islands and Caribbean ports.
