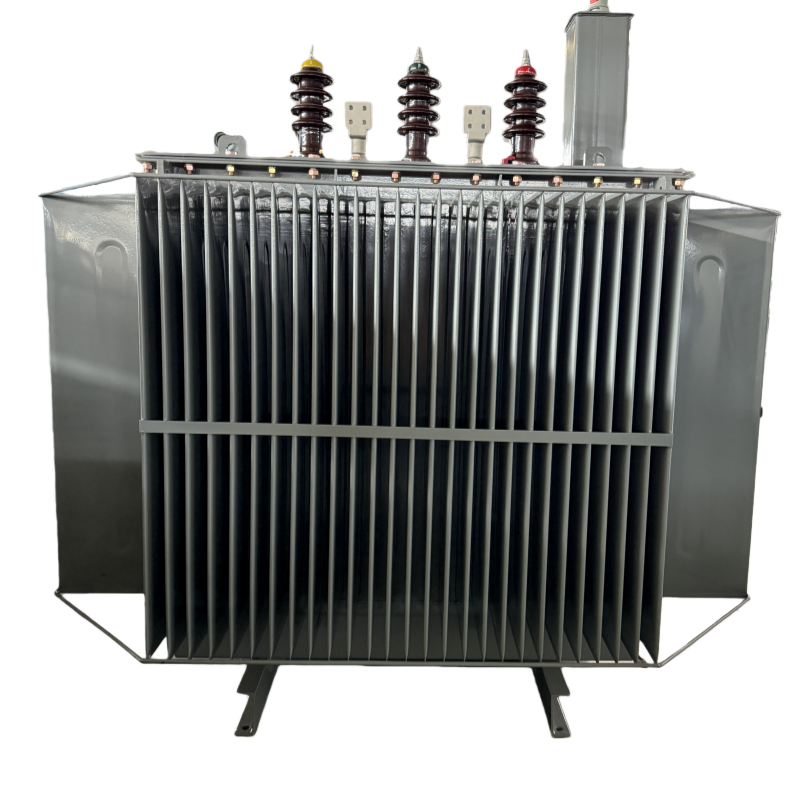

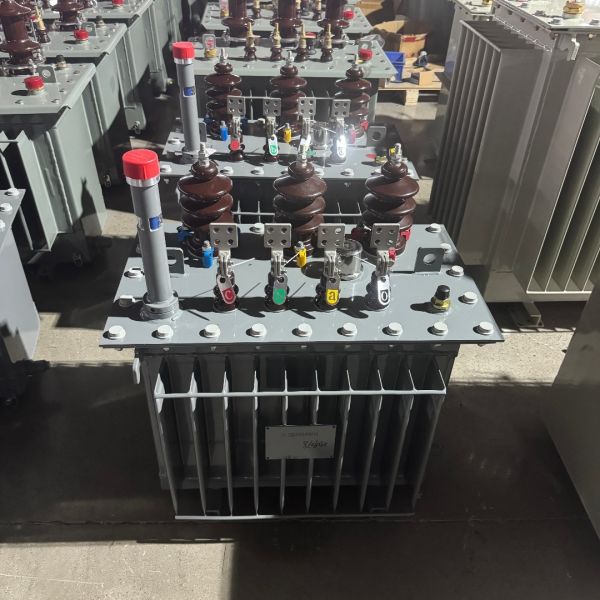

100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
100kva 10kv Output Electric Power Distribution Step up and Down Transformer Oil Power Transformer supplier
Specifications
Model Number :
S11/S10/S9
Brand Name :
New Electric Power
Place of Origin :
Henan, China
MOQ :
1 set
Price :
$500-6,000 / set
Coil Number :
3
Coil Structure :
Toroidal
Phase :
three
application :
Power
Capacity/KVA :
100kva
Voltage/KV :
6KV 10KV 11KV 15KV 20KV 33KV 66KV
Connection group label :
Customization
impedance voltage :
Customization
Standard :
IEC/IEEE/ANSI
Rated frequency :
50Hz/60Hz
Type of cooling :
ONAN oil is self-cooled
insulation level :
LI 75 AC 35/AC 5
Description
[Product Functions]:
Covering 10kv-40kv full voltage segment and 30kva-5000kva full capacity range, suitable for power distribution needs in multiple fields such as industry, mining and chemical industry, realizing efficient power transmission and precise voltage conversion; built-in intelligent temperature control system, which can automatically adjust heat dissipation efficiency to adapt to different ambient temperature changes; equipped with multiple protections against leakage, overload and short circuit, low operation loss, good power supply stability, and can ensure 24-hour continuous trouble-free operation of equipment.
[Product Selling Points]:
Stable operation at 10kv-40kv high voltage, 30kva-5000kva capacity customized on demand, suitable for various power distribution scenarios from small workshops to large substations; adopts energy-saving core and winding design, no-load loss and load loss are lower than the industry average, more energy-saving for long-term use; mineral oil adopts environmentally friendly formula, non-toxic, tasteless and recyclable, meeting green industrial requirements; protection level upgraded to IP67, waterproof, dustproof and corrosion-resistant, can operate stably for a long time in high-temperature, high-humidity and dusty outdoor environments.
