Product Details

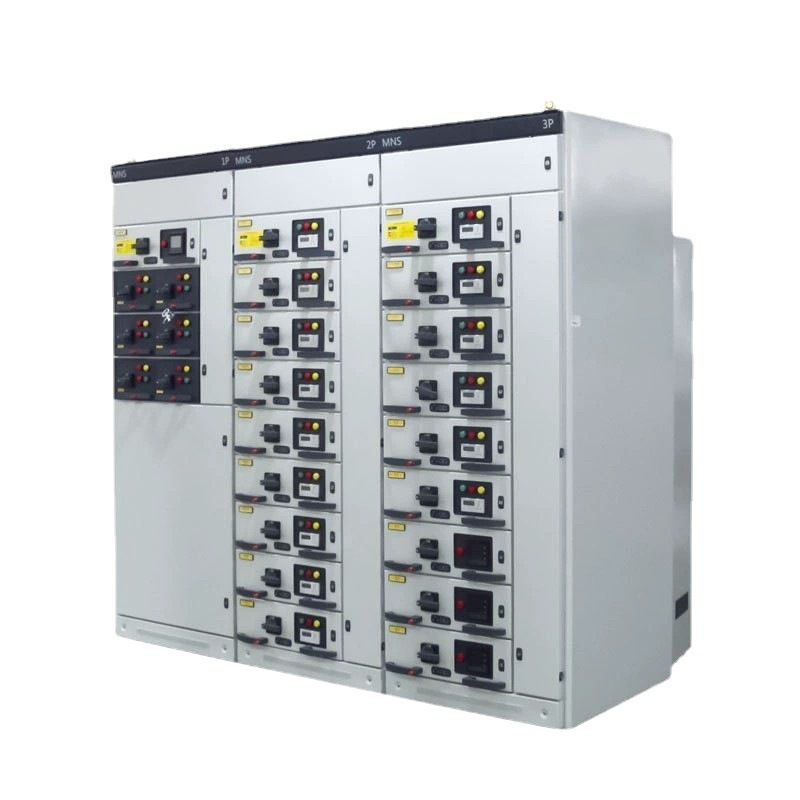

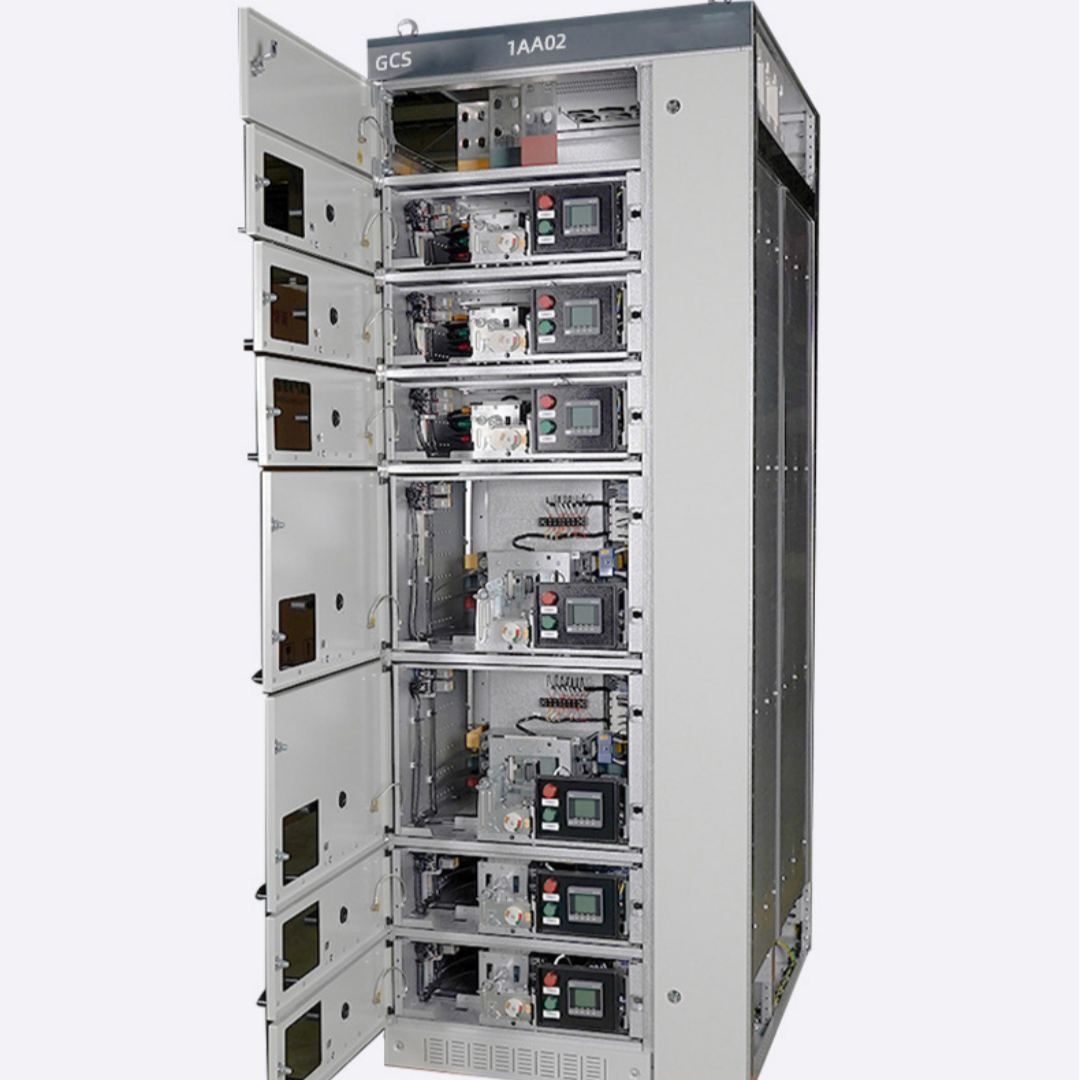

This IEC low-voltage drawout switchgear is developed for applications requiring flexible circuit management, high operational reliability and convenient maintenance. The withdrawable ACB design separates the functional unit from the main cabinet, allowing inspection and replacement with reduced maintenance downtime. The switchboard supports multiple incoming, outgoing and bus-coupler configurations and can be engineered according to the customer's single-line diagram. Cabinet dimensions, busbar systems, protection devices, cable entry and feeder arrangements can all be customized. It provides a practical solution for modern commercial and industrial LV distribution networks.

Applications

Suitable for commercial buildings, office complexes, hospitals, data centers, industrial facilities, airports and infrastructure projects. The drawout configuration is particularly useful where continuous power supply and rapid maintenance are important. It can be used as a main distribution board, power control cabinet, feeder distribution board or bus-coupler system. The equipment can be engineered for different load capacities and network configurations to meet project-specific electrical distribution requirements.

Core Technical Parameters

• Rated Voltage: 400V–690V
• Rated Current: 400A–6300A
• Frequency: 50/60Hz
• Protection Level: Up to IP54
• Short-Circuit Rating: Up to 100kA
• Standard: IEC 61439-1/-2

FAQ

Q1: Can the switchboard be designed according to our SLD?
Yes. We can design the switchgear according to your single-line diagram.

Q2: What protection devices are available?
ACB, MCCB, protection relays and other components can be configured.

Q3: Is IP54 available?
Yes. The enclosure protection level can be customized according to the installation environment.

Q4: Can cable entry direction be customized?
Yes. Top or bottom cable entry can be provided.

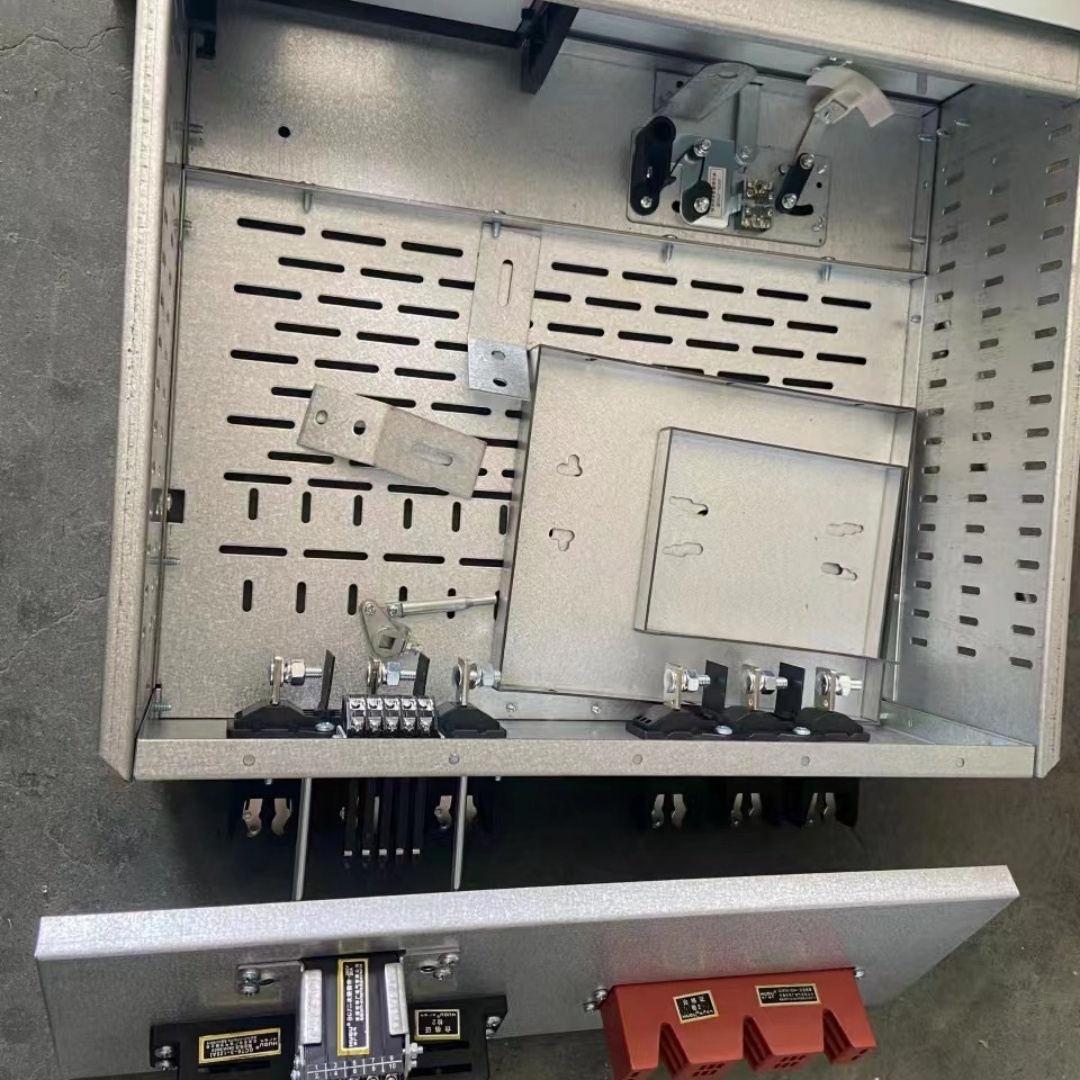

Q5: Can you supply replacement withdrawable units?
Yes. Spare functional units and replacement components can be supplied.
