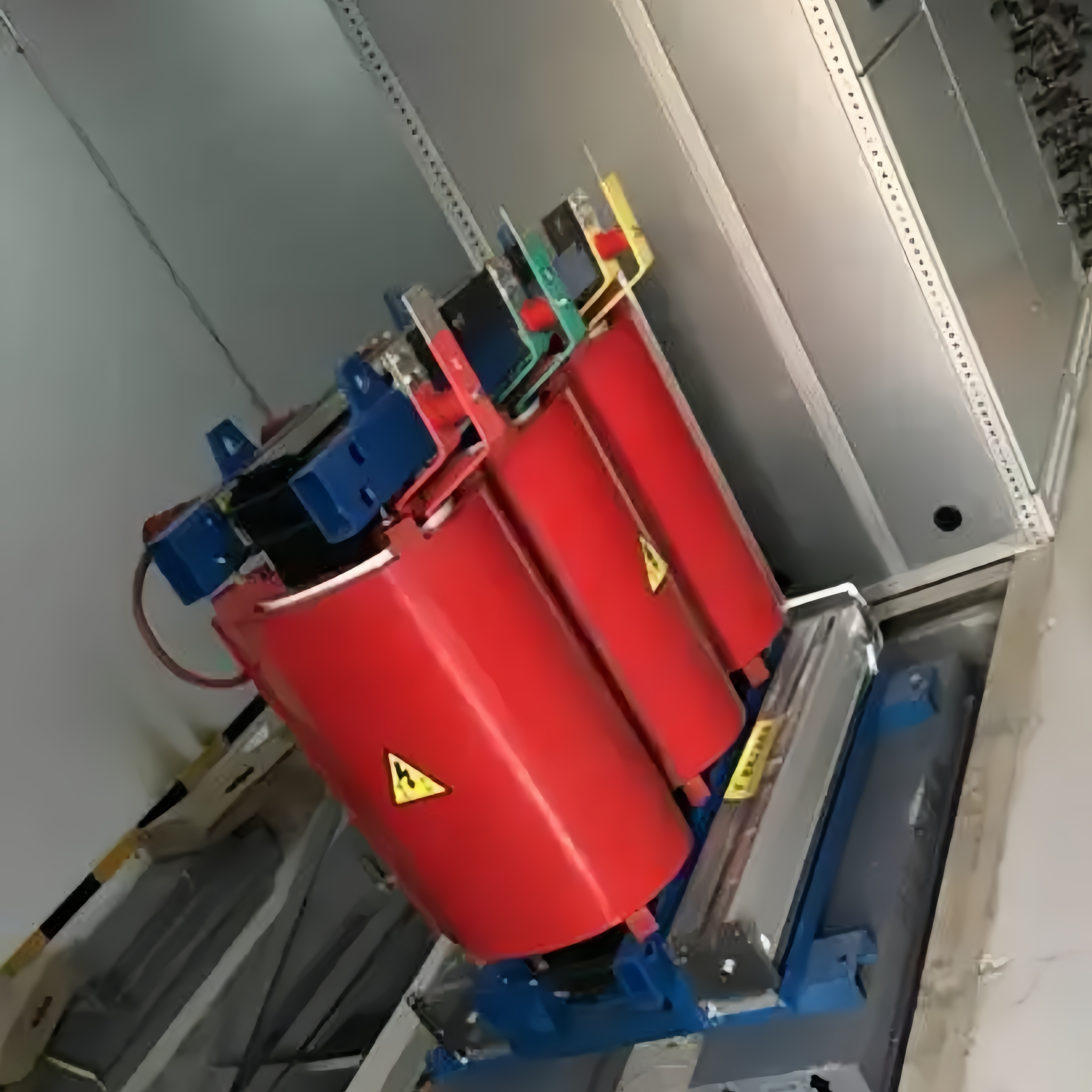

10kV 1600kVA VPI Dry Type Transformer Vacuum Pressure Impregnated Power Transformer for Industrial Distribution
10kV 1600kVA VPI Dry Type Transformer Vacuum Pressure Impregnated Power Transformer for Industrial Distribution
10kV 1600kVA VPI Dry Type Transformer Vacuum Pressure Impregnated Power Transformer for Industrial Distribution
10kV 1600kVA VPI Dry Type Transformer Vacuum Pressure Impregnated Power Transformer for Industrial Distribution
10kV 1600kVA VPI Dry Type Transformer Vacuum Pressure Impregnated Power Transformer for Industrial Distribution
10kV 1600kVA VPI Dry Type Transformer Vacuum Pressure Impregnated Power Transformer for Industrial Distribution
Specifications
Model Number :
SCB
Cooling way :
AN/AF
Input Voltage :
11 kV, 10.5 kV, 3 kV, 12.47 kV, 6.6 kV, 6.3 kV, 6 kV, 35 kV,
Coil Structure :
Shell-Type Coil
Connection group label :
Dyn11
Output Voltage :
10 kV, 380 V, 13.8kv
Coil Number :
Three Windings, Two Windings
Price :
$2,249.10-4,319.10 / piece
Frequency :
50 Hz, 60 Hz
Rated frequency :
50Hz/60Hz
Application :
Distribution System
Phase :
Three
Capecity :
upto5000kva
Type :
Isolation Transformer, Dry Type Transformer, Autotransformer
Place of Origin :
Henan, China
MOQ :
2 pieces
Brand Name :
TNNPI
Description

1. Core Selling Points

  • Advanced VPI Insulation Technology
    Vacuum pressure impregnation improves insulation strength and moisture resistance.
  • Strong Mechanical Performance
    Excellent resistance against thermal stress and short circuit forces.
  • Suitable for Harsh Industrial Conditions
    Designed for factories, mining plants and heavy industrial applications.
  • Reliable Continuous Operation
    Stable performance under high load and demanding working environments.

2. Application Fields

  • Manufacturing Plants
  • Mining Industry
  • Metallurgical Industry
  • Chemical Plants
  • Industrial Power Distribution

3. Core Technical Parameters

Item Specification
Voltage 6kV-35kV
Capacity 500kVA-5000kVA
Insulation VPI Epoxy Resin
Cooling AN/AF
Protection IP20-IP54
Insulation Class F/H
Core Material Grain Oriented Silicon Steel
