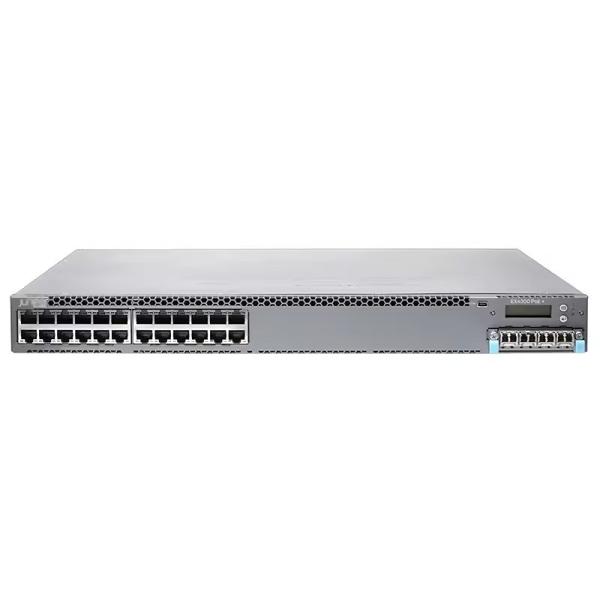

Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Juniper EX4100-24P Ethernet Switch with 24 Ports PoE+ Support and 10/100/1000Mbps Speed for Enterprise Networks
Specifications
Price :
$1,468-$1,526
Model Number :
EX4100-24P
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,D/P,D/A
Delivery Time :
5
private mold :
NO
products status :
Stock
ports :
24
transmission rate :
10/100/1000Mbps
function :
LACP, POE, QoS, SNMP
communication mode :
Full-Duplex & Half-Duplex
switch capacity :
/
brand name :
/
model number :
EX4100-24P
place of origin :
Shanghai, China
Size :
Customized Size
Color :
Customizable
Suitable for :
Workstation, Laptop, Desktop
Description
Juniper EX4100 Series Ethernet Switches
High-performance network switches featuring Power over Ethernet (PoE+) support, multi-gigabit connectivity, and advanced management capabilities for enterprise and campus environments.
Technical Specifications
Specification Details
Form Factor Fixed 1U Access
Port Density EX4100-24P/T: 24 x 1GbE PoE/Non-PoE, 4 x 1/10GbE uplinks, and 4 x 10/25GbE stacking/uplinks
EX4100-48P/T: 48 x 1GbE PoE/Non-PoE, 4 x 1/10GbE uplinks, and 4 x 10/25GbE stacking/uplinks
Wired Assurance Yes
Campus Fabrics 10-member Virtual Chassis, EVPN-VXLAN
Cloud Managed Yes
Dimensions (W x H x D) 1.72" (H) x 17.4" (W) x 13.8" (D)
Backplane Speed 200 Gbps Virtual Chassis Interconnect
Data Rate EX4100-24P/T: 164/328 Gbps, EX4100-48P/T: 188/376 Gbps
Throughput EX4100-24P/T: 244 Mpps, EX4100-48P/T: 279 Mpps
Resiliency Redundant internal load-sharing power supplies; redundant variable speed fans
Traffic Monitoring sFlow, IPFIX, flow based telemetry
Quality-of-Service (QoS) 12 queues/port (8 unicast, 4 multicast)
MAC Addresses 64,000
Jumbo Frames 9,216 bytes
IPv4 Routes 16,000 unicast/multicast
IPv6 Routes 8,000 unicast/multicast
ARP Entries 32,000
Available Models
Model Description
EX4100-24MP 24-Port Multi-Gig with 16x 1G, 8x 1G/2.5G/5G/10G PoE++, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-920-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-24MP-CHAS 24-Port Multi-Gig PoE++ switch chassis only. No Fans or PSUs
EX4100-24P 24-Port 10/100/1000BaseT PoE+, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-920-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-24P-CHAS 24-Port PoE+ switch chassis only. No Fans or PSUs
EX4100-24T 24-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-150-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-24T-CHAS 24-Port switch chassis only. No Fans or PSUs
EX4100-24T-DC 24-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, 1 DC PSU JPSU-150-DC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48MP 48-Port Multi-Gig with 32 x 1G, 16 x 1G/2.5G PoE++, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-920-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48MP-CHAS 48-Port Multi-Gig PoE++ switch chassis only. No Fans or PSUs
EX4100-48P 48-Port 10/100/1000BaseT PoE+, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-920-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48P-CHAS 48-Port PoE+ switch chassis only. No Fans or PSUs
EX4100-48T 48-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, 1 AC PSU JPSU-150-AC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48T-AFI 48-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, redundant fans, back-to-front airflow, 1 AC PSU JPSU-150-AC-AFI included (optics sold separately) with Standard SW. TAA Compliant.
EX4100-48T-CHAS 48-Port switch chassis only. No Fans or PSUs
EX4100-48T-DC 48-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 25G SFP28 Stacking/Uplink ports, 1 DC PSU JPSU-150-DC-AFO included (optics sold separately) with Standard SW. TAA Compliant.
Fanless Models
Model Description
EX4100-F-12P 12-Port Fanless 10/100/1000BaseT PoE+, 2x 1G/2.5G/10GBaseT Uplink ports, 4x 10G SFP+ Stacking/Uplink ports (optics sold separately) with Standard SW. PoE++ Powered.
EX4100-F-12T 12-Port Fanless 10/100/1000BaseT, 2x 1G/2.5G/10GBaseT Uplink ports, 4x 10G SFP+ Stacking/Uplink ports (optics sold separately) with Standard SW.
EX4100-F-24P 24-Port 10/100/1000BaseT PoE+, 4x 10G SFP+ Uplink ports, 4x 10G SFP+ Stacking ports (optics sold separately) with Standard SW. TAA Compliant.
EX4100-F-24T 24-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 10G SFP+ Stacking ports (optics sold separately) with Standard SW. TAA Compliant.
EX4100-F-48P 48-Port 10/100/1000BaseT PoE+, 4x 10G SFP+ Uplink ports, 4x 10G SFP+ Stacking ports (optics sold separately) with Standard SW. TAA Compliant.
EX4100-F-48T 48-Port 10/100/1000BaseT, 4x 10G SFP+ Uplink ports, 4x 10G SFP+ Stacking ports (optics sold separately) with Standard SW. TAA Compliant.
Frequently Asked Questions
What are your advantages?
We are a premium selected partner and professional supplier in the network equipment field for over seven years. We supply original products at competitive prices with 24-hour free consulting from our professional sales team, supported by technical experts and dedicated after-sales departments.
What's the warranty of your products?
One year warranty (except for used products).
What's the MOQ for your products?
Minimum order quantity is 1 piece.
What are the payment terms?
Pre T/T, PayPal, Western Union, or Trade Assurance orders.
What's the packaging?
Original packaging with additional protective outer box to ensure goods arrive in perfect condition during transportation.
