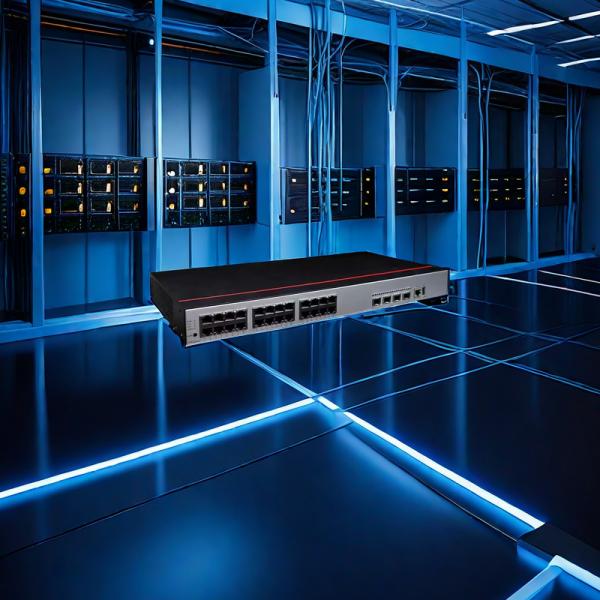

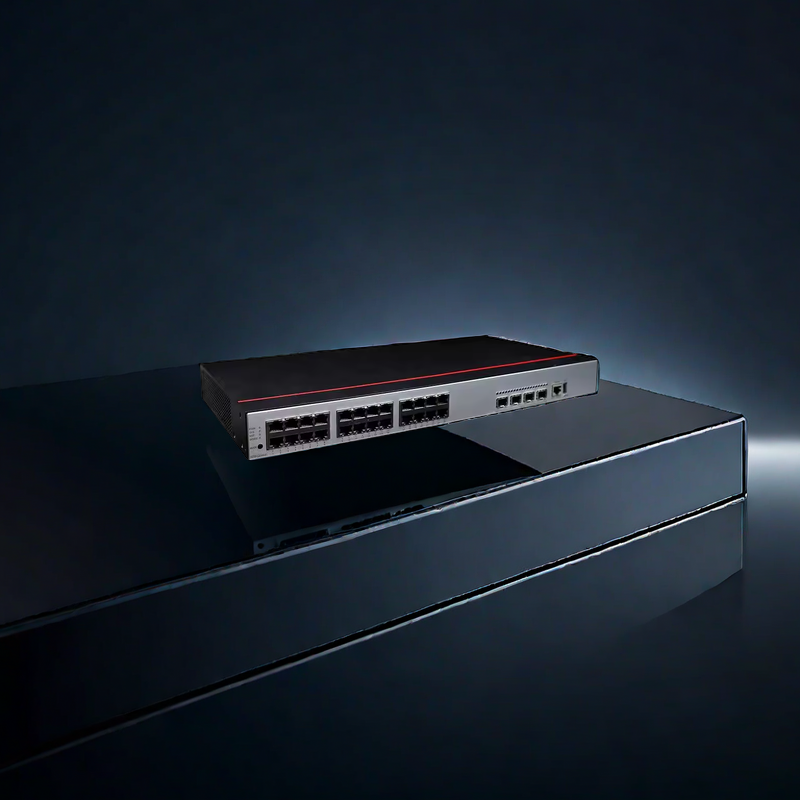

S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
S6730-H28Y4C Managed Core Switch with 28 25GE and 4 100GE Ports for High-Speed Networking
Specifications
Price :
$2760-$2980
Model Number :
S6730-H28Y4C
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,D/P,D/A
Delivery Time :
5
private mold :
NO
products status :
Stock
ports :
28
transmission rate :
10/100/1000Mbps
function :
LACP, POE, QoS, SNMP
communication mode :
Full-Duplex & Half-Duplex
switch capacity :
/
brand name :
/
model number :
S6730-H28Y4C
place of origin :
Shanghai, China
Size :
Customized Size
Color :
Customizable
Suitable for :
Workstation, Laptop, Desktop
Description
Description S6730-H28Y4C (28*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module)
Part Number 02353LGV-003
Model S6730-H28Y4C
First supported version V200R021C10SPC600
Supported Patch Version If the device is used in V200R021C00SPC100, install V200R021SPH013 or a later patch.
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.40 in. x 9.09 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 115 mm x 545 mm x 360 mm (4.53 in. x 21.46 in. x 14.17 in.)
Weight without packaging [kg(lb)] 3.4 (7.5)
Weight with packaging [kg(lb)] 4.65 (10.25)
Typical power consumption [W] 186
Typical heat dissipation [BTU/hour] 634.65
Maximum power consumption [W] 253
Maximum heat dissipation [BTU/hour] 863.26
Static power consumption [W] 116
MTBF [year] 54.68
MTTR [hour] 2
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 64.5
Noise at normal temperature (acoustic pressure) [dB(A)] 51.7
Number of power slots 2
Number of fans modules 3
Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] - AC input: 100 V AC to 240 V AC; 50/60 Hz
- High-voltage DC input: 240 V DC
- DC input: –48 V DC to –60 V DC
Input voltage range [V] - AC input: 90–290 V AC; 45–65 Hz
- High-voltage DC input: 190 V DC to 290 V DC
- DC input: -38.4 V DC to -72 V DC
Memory 4 GB
Flash memory 2 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
Power supply surge protection [kV] - AC power module configured: ±6 kV in differential mode, ±6 kV in common mode
- DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
Types of fans Built-in
Certification EMC certification
Safety certification
Manufacturing certification
Product Model
CloudEngine S6730-H48X6C
CloudEngine S6730-H24X6C
CloudEngine S6730-H24X4Y4C
Switching Capacity2
2.16/2.4 Tbit/s
1.68/2.4 Tbit/s
1.48Tbps/2.4Tbps
Fixed Ports
48 x 10 GE SFP+, 6 x 40/100 GE QSFP28
24 x 10 GE SFP+, 6 x 40/100 GE downlink QSFP28
24 x 10 Gig SFP+, 4 x 25 Gig SFP28, 4 x 100 Gig QSFP28
