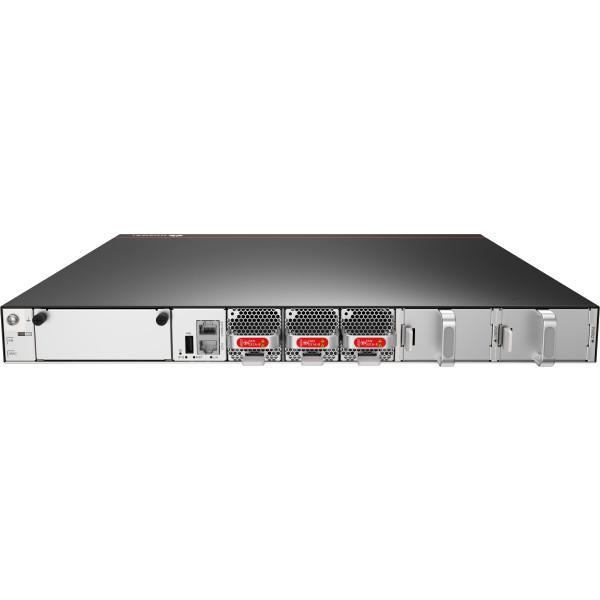

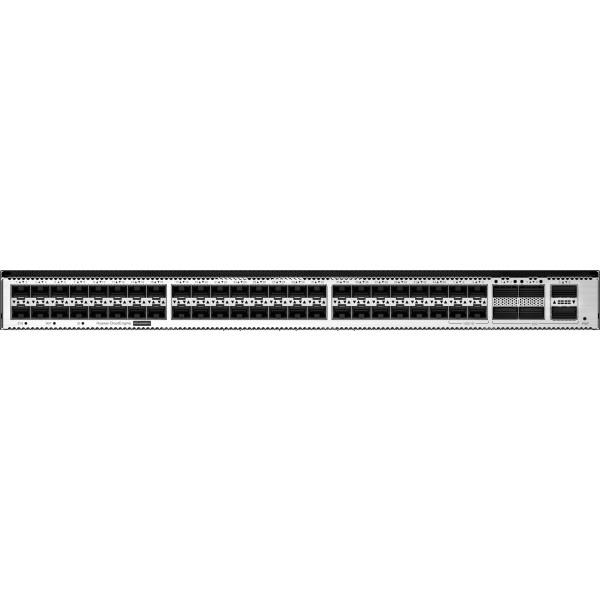

S6730-H48X6CZ-V2 Huawei Switch 48x10G + 6x100G Ports SDN & Cloud Ready
S6730-H48X6CZ-V2 Huawei Switch 48x10G + 6x100G Ports SDN & Cloud Ready
S6730-H48X6CZ-V2 Huawei Switch 48x10G + 6x100G Ports SDN & Cloud Ready
S6730-H48X6CZ-V2 Huawei Switch 48x10G + 6x100G Ports SDN & Cloud Ready
S6730-H48X6CZ-V2 Huawei Switch 48x10G + 6x100G Ports SDN & Cloud Ready
S6730-H48X6CZ-V2 Huawei Switch 48x10G + 6x100G Ports SDN & Cloud Ready
Specifications
Brand Name :
Huawei
Model Number :
S6730-H48X6CZ-V2
Packet Buffer Size :
4 MB
Dimensions :
442mm x 220mm x 43.6mm
Stacking Support :
Yes
Operating Temperature :
0°C to 45°C
Forwarding Rate :
56 Gbps
Port Type :
10/100/1000Base-T
Power Supply :
AC 100-240V
Vlan Support :
IEEE 802.1Q
Price :
¥500-130000
Place of Origin :
China
Packaging Details :
According to customer needs
Delivery Time :
7-15 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Description

High-Performance Huawei Switch S6730-H48X6CZ-V2 - 48x10G + 6x100G Ports , SDN & Cloud-Ready

The Huawei S6730-H48X6CZ-V2 is a next-generation high-performance Ethernet switch designed for enterprise networks, data centers, and cloud environments. Featuring 48x 10G SFP+ ports and 6x 100G QSFP28 uplinks, it delivers ultra-high bandwidth and low-latency switching, making it ideal for bandwidth-intensive applications like virtualization, AI/ML workloads, and high-speed storage.

Key Features & Benefits

✔ High-Speed Connectivity – 48x 10G ports + 6x 100G uplinks (breakable into 40G/25G for flexible deployment).
✔ SDN & Cloud-Ready – Supports OpenFlow, NETCONF/YANG, and seamless integration with Huawei CloudCampus and third-party SDN controllers.
✔ AI-Driven Intelligence – Huawei iPCA technology enables real-time network quality monitoring with zero packet loss detection.
✔ Enterprise-Grade Reliability – Dual power supplies (1+1 redundancy), hot-swappable fans, and M-LAG for uninterrupted operations.
✔ Advanced Security – MACsec encryption, ACLs, DDoS protection, and 802.1X authentication for secure access control.
✔ Energy Efficiency – IEEE 802.3az (EEE) compliance reduces power consumption by up to 30%.

Technical Specifications

Parameter Specification
Port Configuration 48x 10G SFP+, 6x 100G QSFP28
Forwarding Capacity Up to 1.44 Tbps
Switching Capacity 3.6 Tbps
Power Supply Dual AC/DC (hot-swappable)
Security Features MACsec, ACL, DAI, IP Source Guard
Management eSight NMS, CLI, SNMP, Telemetry
Cooling Smart fan with variable speed control

Ideal Use Cases

  • Data Center Aggregation – High-density 10G/100G switching for cloud and virtualization.

  • Enterprise Core Network – Reliable backbone for campus and office environments.

  • SDN & NFV Deployments – Supports network automation and virtualized services.

Optimized for scalability, intelligence, and efficiency, the Huawei S6730-H48X6CZ-V2 is a future-proof solution for modern networking demands. Explore now for seamless high-speed connectivity!
