Industrial Ethernet Switch 2xGE 1xSFP Wide-Temp Dual Power
Industrial Ethernet Switch 2xGE 1xSFP Wide-Temp Dual Power
Specifications
Brand Name :
H3C
Model Number :
LS-IE100-2FT1FSSC-DC
Application :
Data Center Networking
Flash Memory :
16 GB
Product Warranty :
Limited lifetime warranty
Port Count :
48
Chassis Options :
Fixed or Modular
Stacking Capability :
Up to 8 switches
Quality Of Service :
IEEE 802.1p, DSCP, and QoS policies
Advanced Features :
QoS, MPLS, VXLAN
Supported Protocols :
TCP/IP, IPv4, IPv6, OSPF, BGP, MPLS
Stacking Bandwidth :
160 Gbps
Latency :
1 microsecond
Network Protocols :
BGP, OSPF, EIGRP, IS-IS, and more
Security Features :
MACsec, ACL, IPsec
Traffic Monitoring :
NetFlow, SPAN, ERSPAN
Description

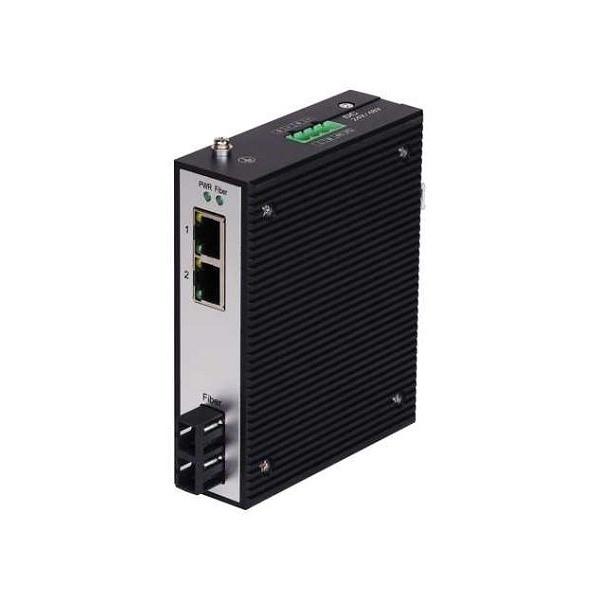

Industrial-Grade Ethernet Switch With Wide-Temp & Dual Power , 2xGE + 1xSFP For Harsh Environments

The H3C LS-IE100-2FT1FSSC-DC is a rugged industrial Ethernet switch designed for mission-critical applications in extreme conditions. Built to withstand -40°C to 75°C temperatures, this fanless, metal-cased switch ensures stable operation in challenging environments like power substations, factories, and outdoor installations.

Key Features & Benefits

✔ Industrial Durability – High resistance to shock, vibration, and electromagnetic interference (EMC IEC61000-4 compliant).
✔ Dual DC Power Input (12-48V) – Supports redundant power supply for uninterrupted network uptime.
✔ Flexible Port Configuration – 2x 10/100/1000M RJ45 ports + 1x SFP slot (fiber or copper) for versatile connectivity.
✔ Fast Network Redundancy – ERPS (Ethernet Ring Protection Switching) with <20ms recovery time, ideal for industrial automation.
✔ Easy Management – Web, CLI, and SNMP (v1/v2c/v3) support for remote monitoring and configuration.

Technical Specifications

Category Specification
Ports 2x 10/100/1000Base-T, 1x 1000Base-X SFP
Power Supply 12-48V DC (redundant input supported)
Operating Temp. -40°C to 75°C
Protection IP30 metal housing, anti-surge, EMC compliant
Protocols ERPS, STP/RSTP, VLAN, QoS, SNMP
Dimensions 135mm x 105mm x 44mm (compact DIN-rail mountable)

Ideal Applications

  • Industrial IoT (IIoT) – Factory automation, PLC networks.

  • Critical Infrastructure – Power grids, oil & gas, transportation.

  • Outdoor Deployments – Solar farms, traffic control, smart city systems.

This H3C industrial switch delivers reliable, high-speed networking with military-grade resilience, making it a top choice for harsh-environment deployments. Searching for a durable switch? The LS-IE100-2FT1FSSC-DC ensures zero downtime in extreme conditions.
