H3C Industrial Gigabit Ethernet Switch with Dual Power and SFP Ports
H3C Industrial Gigabit Ethernet Switch with Dual Power and SFP Ports
Specifications
Brand Name :
H3C
Model Number :
LS-IE200-2GT1GSSC-AC
Management Protocol :
SNMP, Telnet, SSH, CLI
Flash Memory :
16 GB
Switching Capacity :
12.8 Tbps
Uplink Interfaces :
Up to 8 x 40/100-Gbps QSFP28 ports
Weight :
22.5 lbs
Maximum Power Consumption :
3.6 kW
Virtual Network Services :
VXLAN
Operating Humidity :
10-90%
Stacking Bandwidth :
160 Gbps
Layer Support :
Layer 2 and Layer 3
Number Of Ports :
48/96/192/384
Operating Temperature :
32 to 104°F (0 to 40°C)
Port :
48/96/144/192/288/384/768
Ports :
48 x 10/25/40/100 Gigabit Ethernet
Description

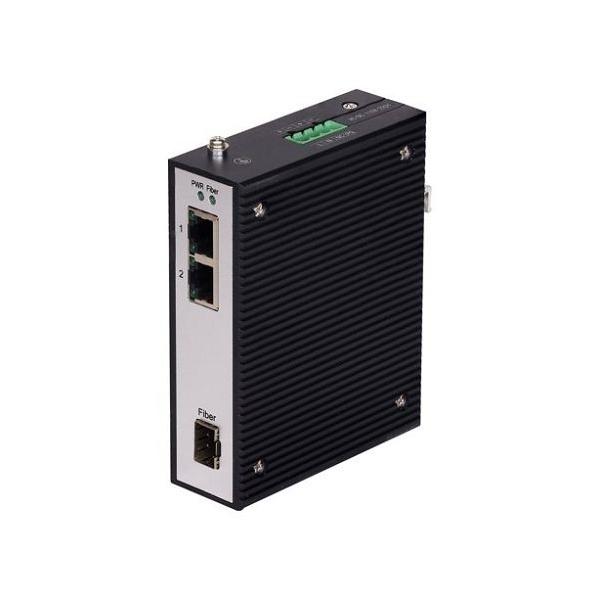

Industrial-Grade Gigabit Ethernet Switch With Dual Power & SFP Ports - H3C LS-IE200-2GT1GSSC-AC

The H3C LS-IE200-2GT1GSSC-AC is a rugged industrial-grade Gigabit Ethernet switch designed for demanding environments such as smart grids, manufacturing plants, and outdoor deployments. With dual power inputs, fiber-optic connectivity, and a wide operating temperature range, this switch ensures stable performance in extreme conditions.

Key Features & Benefits

✔ Industrial Durability

  • Operates in -40°C to 75°C temperatures, ideal for harsh climates

  • IP40-rated metal housing for dust and interference protection

  • EMC Industrial Level 4 certification for high noise immunity

✔ High-Speed Gigabit Connectivity

  • 2× 10/100/1000M RJ45 ports for flexible copper connections

  • 1× 1000M SFP slot for fiber-optic uplinks (supports up to 20km)

  • Non-blocking wire-speed forwarding for zero latency

✔ Enhanced Reliability

  • Dual 12-48V DC power inputs (redundant PSU support)

  • ERPS ring protection (<20ms failover) for mission-critical networks

  • DIN rail or wall mounting for easy installation in control cabinets

✔ Smart & Secure Networking

  • Supports VLAN, QoS, port mirroring, and storm control

  • Compatible with Modbus, PROFINET, and other industrial protocols

  • Web & CLI management for easy configuration

Technical Specifications

Parameter Specification
Ports 2× 10/100/1000M RJ45, 1× 1000M SFP
Power Input 12-48V DC (dual redundant)
Operating Temp. -40°C to 75°C
Protection Rating IP40, EMI Level 4
Switching Capacity 6Gbps
Dimensions (W×D×H) 44×135×99 mm
Certifications CE, FCC, RoHS

Ideal Applications

  • Industrial automation (PLC/SCADA networks)

  • Smart transportation (railway, traffic control)

  • Outdoor solar/wind power monitoring

  • Mining, oil & gas, and utility networks

This H3C industrial switch delivers high reliability, fast Gigabit speeds, and flexible deployment options, making it a top choice for critical infrastructure. Searching for a durable networking solution? The LS-IE200-2GT1GSSC-AC ensures uninterrupted connectivity in the toughest environments.
