H3C LS-IE4120U-8E Industrial 8-Port Gigabit Ethernet Switch Wide Temp
H3C LS-IE4120U-8E Industrial 8-Port Gigabit Ethernet Switch Wide Temp
Specifications
Brand Name :
H3C
Model Number :
LS-IE4120U-8E
Flash Memory :
16 GB
Application :
Data Center Networking
Modular :
Yes
Port Count :
48
Latency :
1-3 microseconds
Qos Features :
Intelligent Traffic Director (ITD) and Network Analytics Engine (NAE)
Port :
48/96/144/192/288/384/768
Security :
ACL, CoPP, MACsec
Management Interfaces :
CLI, SNMP, REST API
Product Warranty :
Limited lifetime warranty
Operating Humidity :
5 to 95% non-condensing
High Availability Features :
Virtual PortChannel (vPC), FabricPath, and Virtual Device Context (VDC)
Virtualization Support :
VMware, Microsoft Hyper-V, and OpenStack
Model :
Nexus 9000 Series
Description

Industrial-Grade 8-Port Gigabit Ethernet Switch Wide Temp , PoE Support & ERPS Ring H3C LS-IE4120U-8E

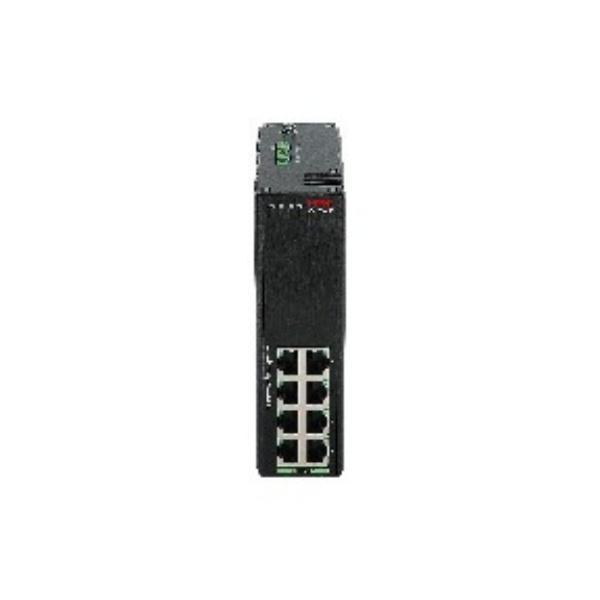

The H3C LS-IE4120U-8E is a rugged 8-port Gigabit Industrial Ethernet Switch designed for harsh environments like factories, power plants, and transportation systems. With wide-temperature operation (-40°C to 75°C), high EMI immunity (EMC Level 4), and optional PoE support, it ensures reliable connectivity in mission-critical applications.

Key Features:

✔ Industrial Durability – Operates in extreme temperatures (-40°C~75°C) with IP40 protection and vibration-resistant design.
✔ High-Speed Gigabit Ports – 8x 10/100/1000Mbps RJ45 ports with optional SFP slots for fiber uplinks.
✔ Fast Network Redundancy – Supports ERPS (Ethernet Ring Protection Switching) and STP/RSTP, ensuring <20ms failover for uninterrupted operations.
✔ PoE Support (Optional) – Provides power to IP cameras, wireless APs, and sensors (check LS-IE4120U-8E-P for PoE model).
✔ Advanced Security & QoS – Features 802.1X authentication, ACL, and VLAN for secure networks, plus traffic prioritization for real-time data.
✔ Easy Deployment – DIN rail or wall-mountable, 12~48V DC wide voltage input, and fanless silent operation.

Technical Specifications:

Parameter Specification
Ports 8x 10/100/1000M RJ45, optional SFP
PoE Support Available in LS-IE4120U-8E-P model
Operating Temp. -40°C to 75°C
Protection IP40, EMC Level 4
Redundancy ERPS, RSTP/MSTP (<20ms recovery)
Power Input 12~48V DC or 24V AC (varies by model)
Management Web, CLI, SNMP

Ideal Applications:

  • Industrial Automation (PLC, SCADA, Robotics)

  • Smart Transportation (Railway, Traffic Control)

  • Energy & Utilities (Solar/Wind Farms, Substations)

  • Outdoor & Harsh Environments (Mining, Oil & Gas)

The H3C LS-IE4120U-8E delivers high reliability, fast redundancy, and flexible deployment, making it a top choice for industrial networking. Contact us for pricing and customization options!
