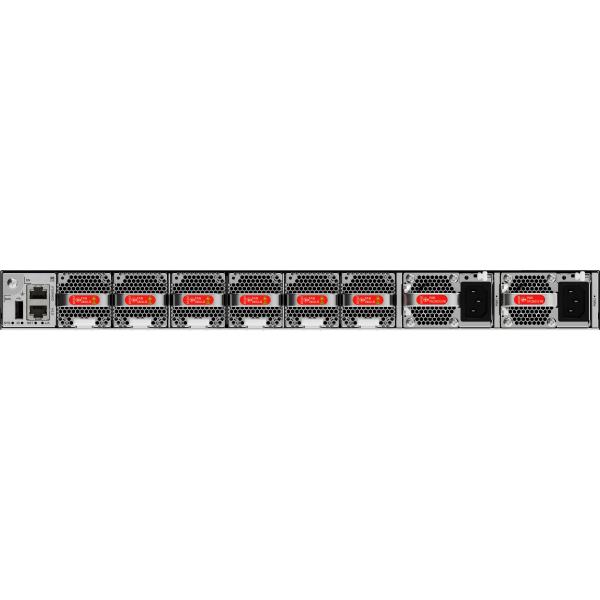

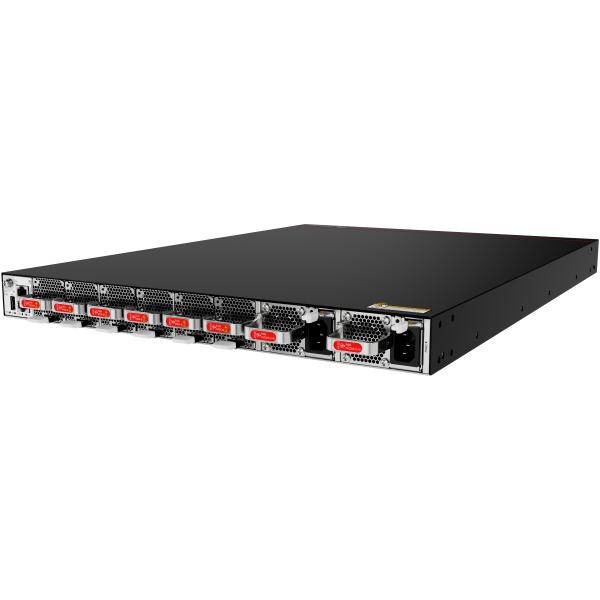

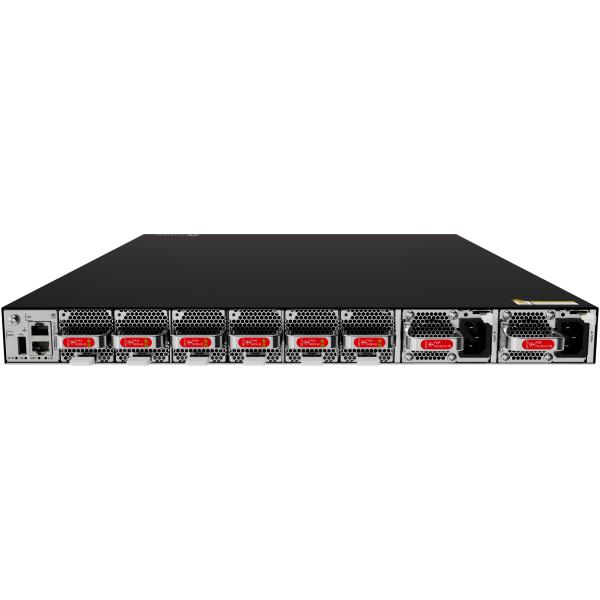

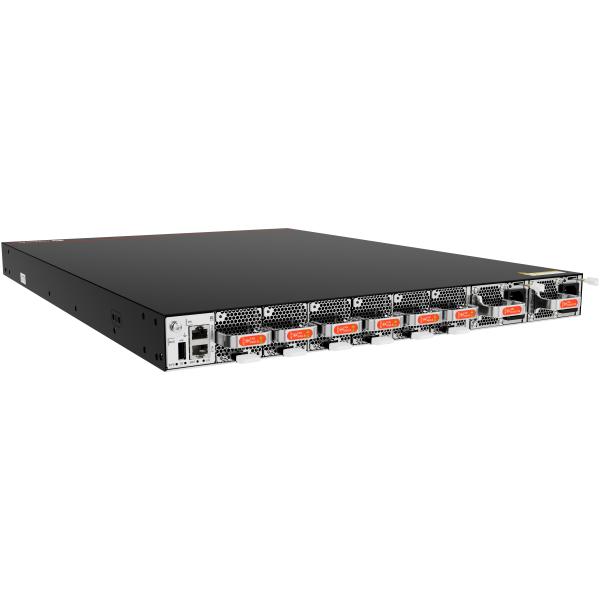

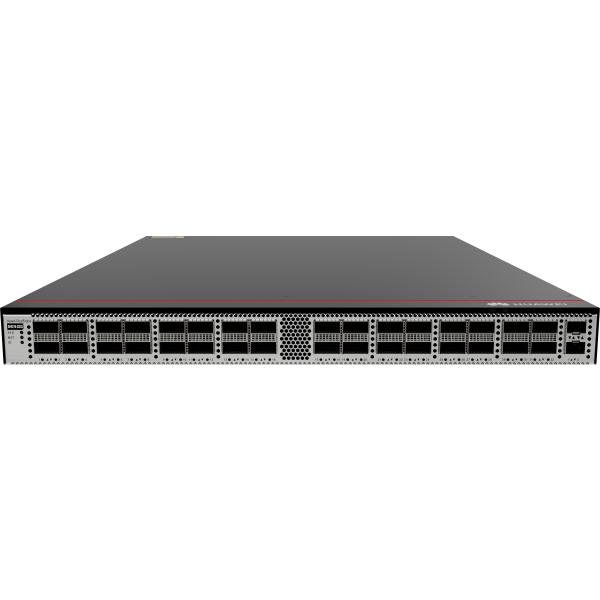

Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Huawei XH9210-32DQ 32-Port 100G Data Center Switch
Specifications
Brand Name :
Huawei
Model Number :
XH9210-32DQ
Packet Buffer :
2 MB
Link Aggregation :
Static LAG, dynamic LACP, and Smart Link
Humidity :
5% to 95%, non-condensing
Vlan Standards :
IEEE 802.1Q
Model :
S5700-28P-LI-AC
Switch Capacity :
176Gbps
Memory :
1 GB
Port Type :
10/100/1000BASE-T
High Availability :
In-Service Software Upgrade (ISSU)
Poe Support :
Yes
Stacking Bandwidth :
160 Gbps
Qos Support :
IEEE 802.1p, DSCP
Product Qos :
Supports 8 queues per port
Transmission Rate :
10/100/1000Mbps
Description

High-Density 100G Ports & Low-Latency Huawei Switch Data Center & Cloud Networking

The Huawei XH9210-32DQ is a high-performance data center switch designed for modern cloud, AI, and high-performance computing (HPC) environments. Featuring 32x 100G QSFP28 ports, it delivers ultra-high bandwidth and ultra-low latency, making it ideal for leaf-spine architectures, storage networks, and large-scale virtualization.

Key Features & Benefits

High-Density 100G Connectivity – Supports 32x 100G ports with flexible speed options (40G/25G/10G via breakout cables).
Ultra-Low Latency – Huawei’s proprietary chips reduce forwarding delays to microseconds, critical for HPC and financial trading.
Smart O&M with CloudEngine OS – Enables real-time Telemetry, AI-powered traffic analysis, and automated fault detection.
Enterprise-Grade Reliability – 1+1 redundant power supplies & fan modules ensure 99.999% uptime.
Energy Efficient – Dynamic power adjustment cuts operational costs (typical ~300W power consumption).

Technical Specifications (XH9210-32DQ)

Parameter Specification
Ports 32x 100G QSFP28 (40G/25G/10G capable)
Switching Capacity 6.4 Tbps (full line-rate)
Forwarding Rate 4.8 Bpps
Latency <1 μs (cut-through mode)
Power Supply Dual 650W (AC/DC, hot-swappable)
Cooling Front-to-back airflow, redundant fans
OS Huawei CloudEngine OS (VXLAN/EVPN support*)
Dimensions 442mm x 420mm x 44mm (1U)

*Requires license for advanced features (e.g., VXLAN, SDN integration).

Ideal Use Cases

  • Cloud Data Centers – Scalable 100G spine/leaf deployments.

  • AI/ML Workloads – Low-latency interconnect for GPU clusters.

  • Financial Networks – High-speed trading with microsecond latency.

  • Storage Networks – Lossless traffic handling for NVMe-oF.

Why Choose This Huawei Switch?

The XH9210-32DQ combines future-proof 100G density, carrier-grade reliability, and smart automation, reducing TCO for enterprises and hyperscalers. Its open SDN compatibility (via NETCONF/YANG) ensures seamless integration with multi-vendor cloud ecosystems.
