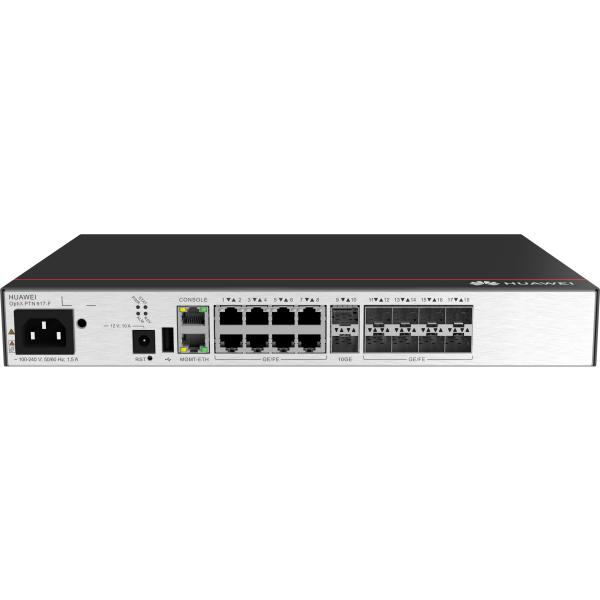

Huawei PTN 917-F Compact Router with PTN/IP RAN Dual Mode
Huawei PTN 917-F Compact Router with PTN/IP RAN Dual Mode
Specifications
Brand Name :
Huawei
Model Number :
OptiX PTN 917-F
Lan Port :
3 x 10 / 100 / 1000 Mbps Ethernet ports
Warranty :
1 year
Wan Port :
1 x 10 / 100 / 1000 Mbps Ethernet port
Security Features :
Firewall, VPN, ACL, NAT
Usb Ports :
2 x USB 2.0
Usb Port :
1 x USB 3.0 port
Maximum Wireless Speed :
Up to 300Mbps
Connectivity Technology :
Wireless
Frequency Band :
2.4 GHz, 5 GHz
Vpn Support :
IPSec VPN, L2TP VPN, PPTP VPN
Color :
White
Security Protocol :
WPA/WPA2, WPA-PSK/WPA2-PSK
Guest Network :
Yes
Wireless Frequency Bands :
2.4 GHz and 5 GHz
Description

Compact Huawei Router With PTN/IP RAN Dual Mode & 5G Sync For Reliable Backhaul
The Huawei OptiX PTN 917-F is a high-performance, 1U compact router designed for 5G mobile backhaul, enterprise private lines, and multi-service convergence. Combining PTN and IP RAN dual-stack support, it delivers carrier-grade reliability with MPLS-TP/SR-TP protocols, ultra-low latency, and precise 1588v2 synchronization for 5G networks.

Key Features

  1. Dual-Mode Flexibility

    • Supports both PTN (MPLS-TP) and IP RAN architectures, enabling seamless integration with legacy SDH and modern IP networks.

  2. 5G-Optimized Performance

    • Sub-50ms protection switching ensures zero service interruption.

    • IEEE 1588v2 (PTP) + SyncE for nanosecond-level clock synchronization, critical for 5G fronthaul/backhaul.

  3. Space-Saving & High Density

    • 1U height design saves rack space while offering 8xGE, 4xE1, and optional 10GE/PON ports.

  4. Enterprise-Grade Security

    • Hardware-based encryption and L3 VPN support for secure multi-tenant services.

  5. Simplified O&M

    • Managed via U2000/iManager UMF with ZTP (Zero Touch Provisioning) for rapid deployment.

Technical Specifications (Key Parameters)

Category Specification
Dimensions 442mm (W) x 220mm (D) x 44mm (H), 1U
Interfaces 8xGE, 4xE1, 2x10GE (optional), PON (optional)
Protocols MPLS-TP, IP RAN, SR-TP, L3 VPN, QoS
Sync Accuracy ±30ns (1588v2), SyncE
Protection <50ms failover (MPLS-TP 1:1, ring protection)
Power Dual 48V DC or 220V AC (redundant optional)
Operating Temp -40°C to +65°C (industrial-grade)

Why Choose Huawei PTN 917-F?

  • Future-Proof: Ready for 5G/5.5G latency-sensitive applications.

  • Multi-Service: Converges TDM (E1), Ethernet (GE/10GE), and PON on a single platform.

  • Energy-Efficient: <50W power consumption, reducing OPEX.

Ideal For: Mobile operators, ISPs, and enterprises needing compact, reliable transport for 5G, IoT, or mission-critical private lines.
