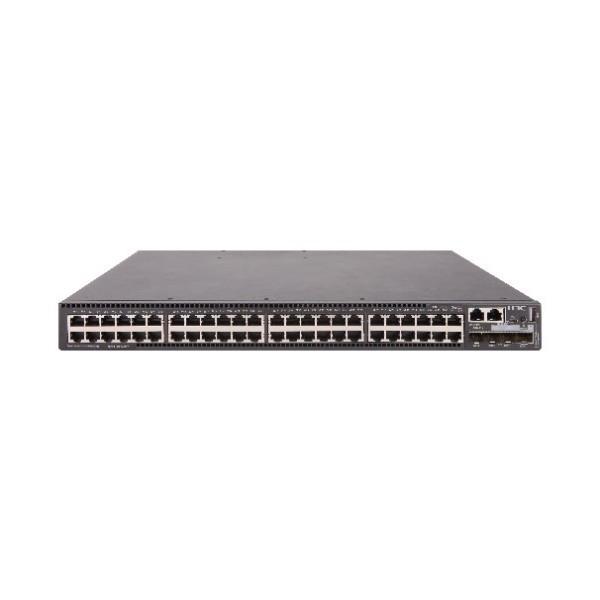

H3C LS-5560S-52P-EI 52-Port PoE+ Switch Layer 3 Routing & High Power Budget
H3C LS-5560S-52P-EI 52-Port PoE+ Switch Layer 3 Routing & High Power Budget
Specifications
Brand Name :
H3C
Model Number :
LS-5560S-52P-EI
Switching Capacity :
up to 9.6 Tbps
Scalability :
Up to 9216 ports in a single fabric
Network Protocols :
TCP/IP, IPv4, IPv6, OSPF, BGP, EIGRP
Traffic Management :
QoS, ACL, CoS, DCB, FCoE
Stacking Capability :
Up to 8 switches
Number Of Ports :
up to 768
Application :
Data Center Networking
Multicast Support :
PIM-SM, PIM-SSM, PIM-BIDIR
Security Features :
ACL, MACsec, TrustSec
Chassis Options :
Fixed or Modular
Modular :
Yes
Redundancy :
1+1 or N+1 power supply redundancy
Description

H3C LS-5560S-52P-EI 52-Port PoE+ Switch Layer 3 Routing & High Power Budget

The H3C LS-5560S-52P-EI is a 52-port enterprise-grade Gigabit PoE+ switch designed for high-density deployments, offering Layer 3 routing, robust Power over Ethernet (PoE+) support, and advanced security features. Ideal for business networks, IP surveillance, and wireless access point (WAP) deployments, this switch ensures high-speed connectivity, reliable power delivery, and seamless scalability.

Key Features & Benefits

✔ High-Density PoE+ Support – 48x 10/100/1000BASE-T PoE+ ports (IEEE 802.3af/at) with 740W total power budget, perfect for IP cameras, VoIP phones, and WiFi 6 access points.
✔ Layer 3 Routing Capabilities – Supports static routing, OSPF, RIP, and BGP, enabling efficient inter-VLAN and multi-subnet communication.
✔ Enterprise-Grade Reliability – Dual power supply (optional) + IRF2 stacking for redundancy and simplified management.
✔ Advanced Security & QoS – Features 802.1X authentication, ACLs, DHCP Snooping, and traffic prioritization for VoIP/video.
✔ SDN & Cloud-Ready – OpenFlow support for future-proof SDN deployments.

Technical Specifications

Category Specifications
Ports 48x 10/100/1000BASE-T PoE+, 4x 1G SFP (Combo)
PoE Budget 740W (Max 30W per port)
Switching Capacity 336 Gbps
Forwarding Rate 126 Mpps
Routing Protocols Static, RIP, OSPF, BGP
Security Features ACL, 802.1X, Port Isolation, IP Source Guard
Management CLI, Web, SNMP, H3C iMC
Power Supply AC, Optional Redundant PSU

Ideal Use Cases

✅ Corporate & Campus Networks – High-speed access & PoE for VoIP and wireless.
✅ IP Surveillance Systems – Powers multiple 4K IP cameras with ease.
✅ SDN & Cloud Networking – Ready for software-defined networking (SDN) integration.

With high PoE power, Layer 3 intelligence, and carrier-class reliability, the H3C LS-5560S-52P-EI is a future-proof solution for demanding enterprise environments.
