Specifications
Brand Name :
Cisco
Model Number :
AIR-AP3802E-H-K9
Wireless Standards :
802.11a/b/g/n/ac Wave 2
Product Family :
Cisco Catalyst Series
Quantity :
Ensured
Connectivity Technology :
Wired
Redundancy :
Hot Standby Router Protocol (HSRP)
Data Transfer Rate :
10/100/1000 Mbps
Layer :
Layer 2/Layer 3
Ports :
6 x 1GbE (Gigabit Ethernet) Ports
Power Consumption :
25W
Compatibility :
Cisco routers and switches
Antennas :
Internal omnidirectional antennas
Frequency Band :
2.4 GHz and 5 GHz
Supported Features :
VLAN tagging, Jumbo Frames, Wake-on-LAN
Maximum Number Of Clients :
200
Description

High-Speed 802.11ac Wave 2 & MU-MIMO Support For Dense Networks Cisco Wireless AP

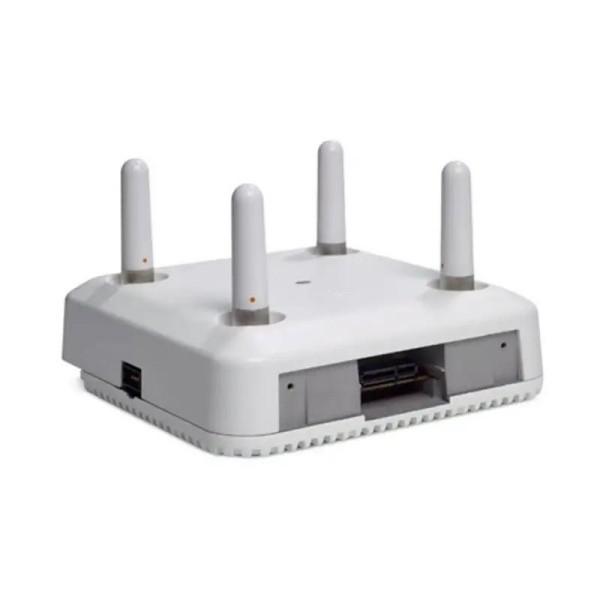

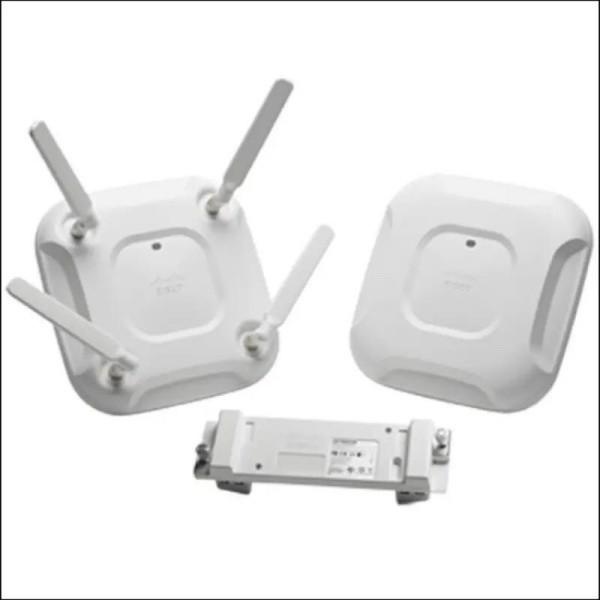

The Cisco AIR-AP3802E-H-K9 is a high-performance 802.11ac Wave 2 wireless access point (AP) designed for enterprise environments requiring ultra-fast speeds, reliable connectivity, and superior performance in high-density deployments. With 4×4 MU-MIMO technology, this Cisco Wireless AP delivers up to 2.9 Gbps aggregate throughput, ensuring seamless support for bandwidth-intensive applications like 4K video streaming, VoIP, and cloud-based services.

Key Features & Benefits

✔ 802.11ac Wave 2 with MU-MIMO – Enables simultaneous data transmission to multiple clients, reducing latency in crowded networks.
✔ 4×4 MIMO & Beamforming – Enhances signal strength and coverage for both 5GHz (2.34 Gbps) and 2.4GHz (600 Mbps) bands.
✔ Cisco CleanAir Technology – Automatically detects and mitigates RF interference for optimal performance.
✔ Enterprise-Grade Security – Supports WPA3, AES encryption, and Cisco ISE integration for advanced threat protection.
✔ Flexible Deployment – Works in local, monitor, FlexConnect, or bridge mode, ideal for offices, campuses, and IoT deployments.
✔ Future-Ready & Modular – Upgradable with 802.11ax (Wi-Fi 6) modules for long-term investment protection.

Technical Specifications (AIR-AP3802E-H-K9)

Parameter Specification
Wi-Fi Standard 802.11ac Wave 2 (Dual-band)
Max Data Rate 2.9 Gbps (2.34 Gbps 5GHz + 600 Mbps 2.4GHz)
MIMO Configuration 4×4:4 (4 spatial streams)
Ethernet Ports 2x Gigabit (PoE+ supported)
Security WPA3, WPA2, 802.1X, AES, WIDS/WIPS
Management Cisco DNA Center, Meraki (conversion required)
Operating Temp. -20°C to 55°C (-4°F to 131°F)
Mounting Wall, ceiling, pole (IP67 rugged option available)

Ideal Use Cases

✅ High-density offices & conference rooms
✅ Universities & stadiums with heavy Wi-Fi traffic
✅ Healthcare & manufacturing with IoT/BLE devices
✅ Outdoor deployments (with IP67-rated housing)

Why Choose This Cisco Wireless AP?

The Cisco AIR-AP3802E-H-K9 combines cutting-edge Wi-Fi performance, enterprise-grade security, and scalability, making it a top choice for businesses needing future-proof, high-speed wireless networking. Whether deploying in corporate offices, retail spaces, or industrial sites, this Cisco Aironet 3800 series AP ensures reliable, secure, and high-capacity connectivity.
