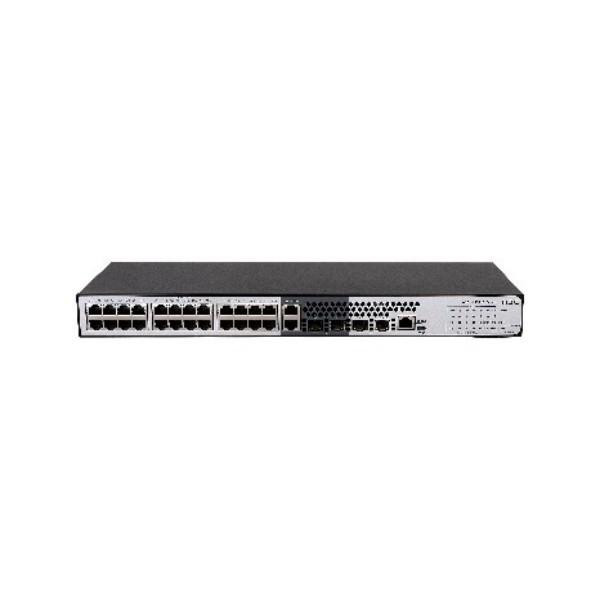

24-Port PoE+ Switch With Cloud Management & 370W Power - H3C LS-WS5820-28TP
24-Port PoE+ Switch With Cloud Management & 370W Power - H3C LS-WS5820-28TP
Specifications
Brand Name :
H3C
Model Number :
LS-WS5820-28TP-POE-WiNet-H1
Modular Design :
Yes
Port :
48/96/144/192/288/384/768
Throughput :
Up to 9.6 Bpps
Stackable :
Yes
Product Type :
Switch
Product Forwarding Rate :
357.14 Mpps
Product Series :
Data Center
Supported Protocols :
Ethernet, Fibre Channel, FCoE, VXLAN
Power Supply :
Dual, hot-swappable
Latency :
Less than 1 microsecond
Product Warranty :
Limited lifetime warranty
Virtualization :
VXLAN, EVPN, VRF, MPLS
Speed :
10 Gbps
Security Features :
ACL, MACsec, and TrustSec
Description

24-Port PoE+ Switch With Cloud Management & 370W Power - H3C LS-WS5820-28TP

The H3C LS-WS5820-28TP-POE-WiNet-H1 is a high-performance 24-port Gigabit PoE+ switch designed for small to medium businesses, campuses, and surveillance networks. With 370W total PoE power and cloud-based management, it delivers reliable connectivity for IP cameras, wireless APs, VoIP phones, and other PoE devices while simplifying remote administration.

Key Features:

✅ 24× Gigabit PoE+ Ports – Supports IEEE 802.3af/at (30W per port), providing power to devices like IP cameras and WiFi 6 APs without extra cabling.
✅ 4× Gigabit SFP Uplinks – Enables fiber connectivity for long-distance network expansion.
✅ WiNet Cloud Management – Monitor and configure the switch remotely via H3C Cloud, reducing on-site IT maintenance.
✅ Layer 2 Smart Switching – Supports VLAN, QoS, STP/RSTP, and port security for optimized traffic control.
✅ Robust & Energy-Efficient – 6KV surge protection and intelligent power saving for stable operation.

Technical Specifications:

Category Specifications
Ports 24× 10/100/1000M PoE+ RJ45, 4× 1G SFP
PoE Budget 370W total (IEEE 802.3af/at)
Switching Capacity 56Gbps
Management Web, CLI, SNMP, H3C Cloud (WiNet)
Security Port isolation, MAC binding, storm control
Power Supply 100-240V AC, 50/60Hz
Dimensions 440×160×43.6mm (Rack-mountable)

Ideal For:

✔ IP Surveillance Systems – Powers PoE cameras with stable bandwidth.
✔ Business WiFi Networks – Supports high-density wireless APs.
✔ Voice & IoT Deployments – Prioritizes VoIP and real-time traffic with QoS.

This H3C PoE switch combines plug-and-play installation with enterprise-grade features, making it a cost-effective solution for scalable, cloud-managed networks.
