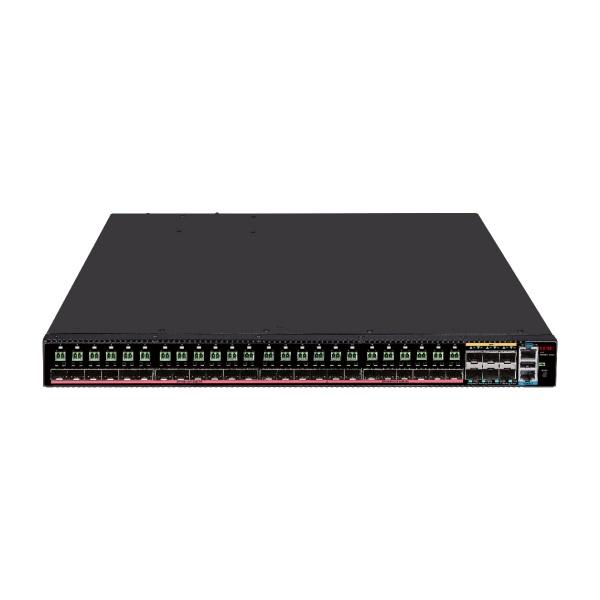

24-Port SFP & 6x 10G Uplink Fiber Switch Layer 3 Managed H3C FS5300-24UXS6X-EI
24-Port SFP & 6x 10G Uplink Fiber Switch Layer 3 Managed H3C FS5300-24UXS6X-EI
Specifications
Brand Name :
H3C
Model Number :
FS5300-24UXS6X-EI
Network Protocols :
BGP, OSPF, EIGRP, IS-IS, and more
Flash Memory :
16 GB
Traffic Management :
QoS, ACL, CoS, DCB, FCoE
Application :
Data Center Networking
Port Count :
48
Management Interfaces :
CLI, SNMP, REST API
Virtualization Features :
VXLAN, NVGRE, MPLS
Quality Of Service :
DCB, PFC, ETS, FCoE
Traffic Monitoring :
NetFlow, SPAN, ERSPAN
Throughput :
1.44 Tbps
Latency :
Less than 5 microseconds
Stacking Capability :
Up to 8 switches
Security :
ACL, CoPP, MACsec
Scalability :
Yes
Description

24-Port SFP & 6x 10G Uplink Fiber Switch Layer 3 Managed H3C FS5300-24UXS6X-EI

The H3C FS5300-24UXS6X-EI is a high-performance 24-port SFP fiber switch with 6x 10G SFP+ uplinks, designed for enterprise networks requiring reliable, high-bandwidth connectivity. Ideal for data centers, campus networks, and fiber-to-the-desktop (FTTD) deployments, this Layer 3 managed switch delivers advanced security, scalability, and low-latency forwarding.

Key Features & Benefits

  • High-Density Fiber Connectivity: 24 x 1G SFP ports support long-distance fiber links (up to 40km with optional modules), while 6x 10G SFP+ uplinks ensure seamless aggregation to core networks.

  • Enterprise-Grade Performance: 128Gbps switching capacity and 95.2Mpps forwarding rate enable wire-speed traffic handling for bandwidth-intensive applications like video surveillance and cloud storage.

  • Layer 3 Routing: Supports static routing, RIP, OSPF, and IPv6, enabling flexible inter-VLAN routing and future-proof networking.

  • Advanced Security: Features 802.1X authentication, ACLs, DHCP snooping, and IP Source Guard to prevent unauthorized access and attacks.

  • Smart Management: CLI, Web UI, and H3C iMC compatibility simplify deployment, while sFlow provides real-time traffic monitoring.

Technical Specifications

Parameter Details
Ports 24 x 1G SFP + 6 x 10G SFP+
Switching Capacity 128Gbps
Forwarding Rate 95.2Mpps
Routing Protocols Static/RIP/OSPFv2/v3, IPv6
Security ACLs, 802.1X, Port Security, SSH/SSL encryption
QoS Priority queuing, traffic shaping
Power Supply AC (redundant optional)
Dimensions (WxDxH) 440 x 260 x 44 mm

Why Choose This Switch?

The H3C FS5300-24UXS6X-EI combines scalability, reliability, and advanced management in a compact form factor. Its energy-efficient design (supports IEEE 802.3az EEE) reduces operational costs, making it a cost-effective solution for growing networks.

Ideal for:
✔ Fiber-based campus networks
✔ Data center access/aggregation
✔ High-security environments (e.g., government, healthcare)
