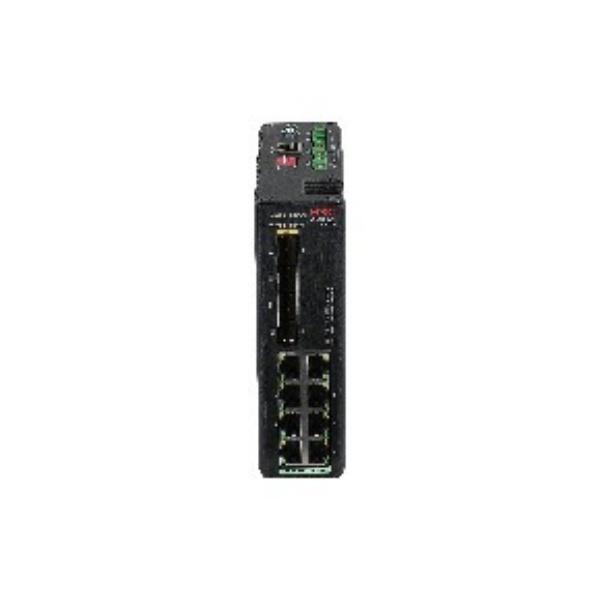

Industrial-Grade PoE++ Switch With 60W UPoE & Wide-Temp Support H3C LS-IE4320-12P-UPWR
Industrial-Grade PoE++ Switch With 60W UPoE & Wide-Temp Support H3C LS-IE4320-12P-UPWR
Specifications
Brand Name :
H3C
Model Number :
LS-IE4320-12P-UPWR
High Availability :
Virtual PortChannel, FabricPath, ISSU
Ports :
Up to 1280 10/25/40/50/100 Gbps ports
Buffer Size :
9 MB
Uplink Interfaces :
Up to 8 x 40/100-Gbps QSFP28 ports
Stacking Capability :
Up to 8 switches
Latency :
Less than 1 microsecond
Chassis Options :
Fixed or Modular
Security :
ACL, CoPP, MACsec
Data Transfer Rate :
1/10/25/40/100 Gbps
Warranty :
Limited Lifetime Warranty
Operating Temperature :
0-40°C
Modular Design :
Yes
Quality Of Service :
DCB, PFC, ETS, FCoE
Vlan Support :
Yes
Description

Industrial-Grade PoE++ Switch With 60W UPoE & Wide-Temp Support H3C LS-IE4320-12P-UPWR

The H3C LS-IE4320-12P-UPWR is a high-performance industrial-grade PoE++ switch designed for harsh environments, delivering 60W Ultra PoE (UPoE) per port, extended temperature support (-40°C to 75°C), and robust reliability for industrial IoT, smart manufacturing, and outdoor deployments.

Key Features & Benefits

✔ Industrial-Grade Durability – Operates in extreme conditions with IP40 protection, fanless design, and compliance with IEC 61000-4 EMC standards for anti-interference.
✔ High-Power PoE++ (IEEE 802.3bt) – Supports 60W per port to power high-demand devices like industrial cameras, wireless APs, and automation controllers.
✔ 12-Port Gigabit Flexibility – 8x 10/100/1000BASE-T ports + 4x 1000BASE-X SFP slots (Combo) for versatile connectivity.
✔ Fast Redundancy & Reliability – ERPS (<20ms failover) and STP/RSTP/MSTP ensure uninterrupted operations.
✔ Secure & Easy Management – Supports CLI, Web, SNMP, and H3C iMC for remote monitoring, plus 802.1X, ACL, and port security.

Technical Specifications (Parameters Table)

Category Specifications
Ports 8x 10/100/1000BASE-T (PoE++), 4x 1000BASE-X SFP (Combo)
PoE Budget Up to 240W total, 60W per port (IEEE 802.3bt)
Temperature -40°C to 75°C (operating)
Protection IP40, DIN-rail/wall mountable
Redundancy ERPS, RSTP/MSTP (<20ms recovery)
Security ACL, 802.1X, Port Isolation, SSH/SSL encryption
Management Web, CLI, SNMP, H3C iMC

Ideal Applications

✅ Industrial Automation – PLCs, motor controls, and robotic systems.
✅ Smart Transportation – Traffic signals, railway communications.
✅ Outdoor & Harsh Environments – Oil/gas, mining, and power substations.

Why Choose This Switch?

The H3C LS-IE4320-12P-UPWR combines high-power PoE++, industrial ruggedness, and gigabit speeds in a compact, reliable package—perfect for mission-critical networks.
