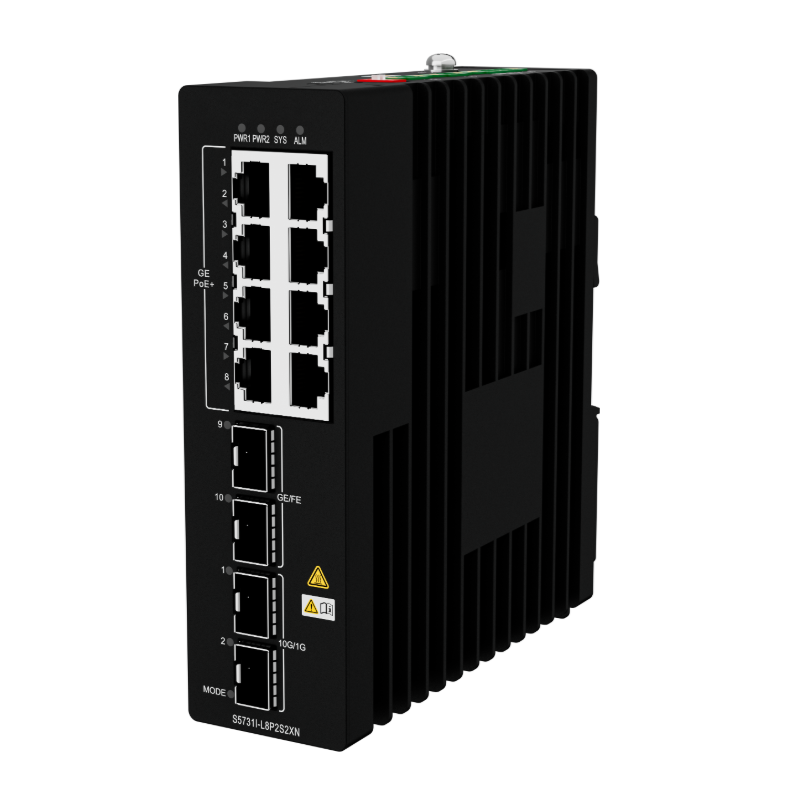

S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports
S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports
S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports
S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports
S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports
S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports
S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports
S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports
Specifications
Delivery Time :
7 work days
Place of Origin :
China
Flash :
1 GB
Brand Name :
Huawei
Price :
180-250USD
Memory :
4 GB
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
MOQ :
1 unit
Chassis material :
Metal
Packaging Details :
Original brand carton
function :
LACP, POE, QoS, SNMP, Stackable, VLAN Support
communication mode :
Full-Duplex & Half-Duplex
Product Name :
Gigabit Switch
Supply Ability :
1000 units
transmission rate :
8 X10/100/1000Mbps
Model Number :
S5731I-L8P2S2XN
Description

S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports


Description

The S5731I-L8P2S2XN is a Huawei DIN rail mounted two-layer industrial grade PoE+10G uplink Gigabit switch designed for harsh industrial scenarios such as power, transportation, intelligent manufacturing, and security monitoring. It supports PoE+power supply, 10G uplink, and dual power redundancy, meeting the high bandwidth, high reliability, and PoE device access requirements of industrial networks


Pictures

S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports


Specification

Item Specification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 44.0 mm x 142.0 mm (6.38 in. x 1.73 in. x 5.59 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.)
Chassis height [U] 3.65 U
Chassis material Metal
Weight without packaging [kg(lb)] 0.986 kg (2.17 lb)
Weight with packaging [kg(lb)] 1.35 kg (2.98 lb)
Typical power consumption [W] 15.56 W
Typical heat dissipation [BTU/hour] 53.09 BTU/hour
Maximum power consumption [W]
  • Without PoE: 16.24 W
  • Full PoE load: 257.6 W (PoE: 240 W)
Maximum heat dissipation [BTU/hour]
  • Without PoE: 55.41
  • Full PoE load: 878.96 (PoE: 240)
Static power consumption [W] 9.52 W
MTBF [years] 133.599 years
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans)
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans)
Number of card slots 0
Number of power slots 0
Number of fans modules 0
Redundant power supply 1+1
Long-term operating temperature [°C(°F)]

0–1800 m (0–5906 ft.) altitude, industrial optical modules:

  • Sealed cabinet: –40°C to +60°C (–40°F to +140°F)
  • Vented cabinet (≥ 80 LFM): –40°C to +70°C (–40°F to +158°F)
  • Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F)

Configured with PEN optical modules:

  • Sealed cabinet: 0°C to +45°C (32°F to 113°F)
  • Vented cabinet (≥ 80 LFM): 0°C to +55°C (32°F to 131°F)
  • Blower-equipped cabinet (≥ 200 LFM): 0°C to +60°C (32°F to 140°F)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)] -40°C to +85°C (-40°F to +185°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode DC external
Rated input voltage [V] DC input: 56 V DC
Input voltage range [V]

DC input:

54 V DC to 57 V DC (PoE/PoE+)

48 V DC (PoE)
Maximum input current [A] 5.6 A
Flash memory Physical space: 16 MB
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±6 kV
Power supply surge protection [kV] DC power: ±2 kV in common mode and ±1 kV in differential mode
Ingress protection level (dustproof/waterproof) IP40
Types of fans None
Heat dissipation mode Natural heat dissipation
Airflow direction -
PoE Supported
Certification

EMC certification

Safety certification

Manufacturing certification

S5731I-L8P2S2XN 98012424 Gigabit Switch 8 Port With 8 X 10/100/1000BASE-T Ports
