Specifications
Brand Name :
Huawei
Model Number :
AirEngine 6760R-51
Certification :
CQC
Place of Origin :
China
MOQ :
1 unit
Price :
378-435 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Product Name :
Wireless Wifi 6 Access Point
Machine speed :
5.95 Gbps
Spatial stream count :
8
Fixed port :
1 x 5GE Ethernet port (PoE_IN) + 1 x GE Ethernet port + 1 x 10GE SFP+ optical port
Power supply :
Supports PoE power supply (802.3bt/at)
size :
270 mm x 220 mm x 85 mm
Description

AirEngine 6760R-51 02353KCM Wireless Wi-Fi 6 Outdoor Access Point With Smart Antenna


Description


The AirEngine 6760R-51 is Huawei's new generation Wi-Fi 6 (802.11ax) outdoor wireless AP in the AirEngine series. It features a high overall speed of 5.95Gbps, high-density access with 8×8 MU-MIMO, built-in smart antennas, and IP68 industrial-grade protection. It adopts a 2.4G+5G dual-radio 4×4 dual architecture, making it suitable for medium to high-density outdoor wireless coverage scenarios such as squares, pedestrian streets, playgrounds, and parks. It balances high-speed transmission, anti-interference, and adaptability to extreme environments, making it a cost-effective choice for small to medium-sized outdoor networks.

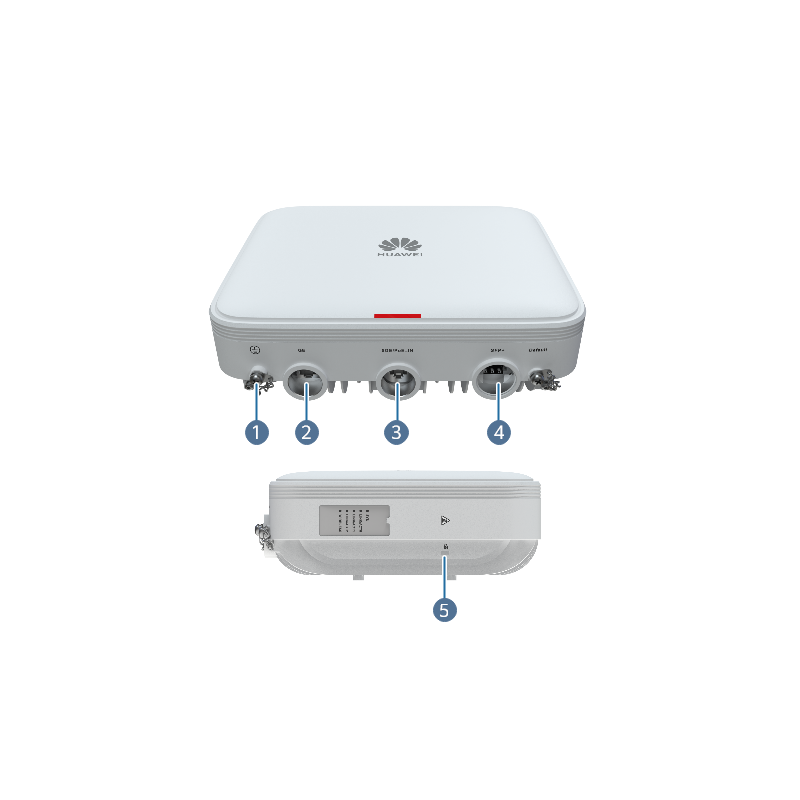

Pictures


AirEngine 6760R-51 02353KCM Wireless Wi-Fi 6 Outdoor Access Point With Smart Antenna


Specification



Parameters Specification Description
Product Series AirEngine 6700 series
Wireless Standard Wi-Fi 6 (802.11ax), Backward compatible with 802.11a/b/g/n/ac/ac wave2
Operating Frequency Band 2.4 GHz and 5 GHz
Spatial Stream Count The whole machine supports 8 spatial streams (2.4GHz: 4x4:4, 5GHz: 4x4:4)
Overall Speed Up to 5.95 Gbps
Antenna Type Built in smart antenna (directional antenna)
Antenna Gain 2.4G: 10 dBi; 5G: 11 dBi
Beamwidth 2.4G horizontal plane at 60 °, vertical plane at 40 °; 5G horizontal plane 60 °, vertical plane 20 °
Maximum Transmit Power 2.4G: 30 dBm (combined power); 5G: 30 dBm (combined power)
Network Interface 1x 5GE electrical port (PoE_IN)+1x GE electrical port+1x 10GE SFP+optical port
Maximum Number of Users ≤ 1024
Power Supply Method Supports PoE power supply (802.3bt/at)
Power Supply Description All functions are not restricted when powered by 802.3bt; When powered by 802.3at, the RF drops to 2.4G (2x2)+5G (2x2), and the 5GE electrical port slows down to GE
PoE_OUT Not supported
Maximum Power Consumption 35.3 W
Mounting Method Holding poles, hanging walls
Physical Dimensions 270 mm x 220 mm x 85 mm (width x depth x height)
Weight About 3 kg
Operating Temperature -40°C ~ +65°C
Protection Rating IP68 (dustproof and waterproof)
Surge Protection Rating Business port lightning protection common mode 6KA/6KV, antenna feeder lightning protection 5KA
Bluetooth Bluetooth 5.2, used for zero configuration deployment and local operation and maintenance
USB/IoT Interface Not supported

AirEngine 6760R-51 02353KCM Wireless Wi-Fi 6 Outdoor Access Point With Smart Antenna
