QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)
QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)
QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)
QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)
QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)
QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)
QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)
QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)
Specifications
Brand Name :
Huawei
Model Number :
QSFP28-100G-LR4
Place of Origin :
china
MOQ :
1 unit
Price :
60-85 USD
Payment Terms :
L/C,D/A,D/P,Western Union,T/T,MoneyGram
Supply Ability :
1000 units
Delivery Time :
3-7work days
Packaging Details :
Original carton
transmission rate :
100 Gbit/s
Interface type :
Duplex LC connector
Fiber type :
Single mode fiber (SMF, G.652)
Description

QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)

Product Description

QSFP28-100G-LR4 is a 100Gbps high-speed optical module packaged in QSFP28. Its core function is to provide 100G Ethernet connectivity within a range of 10 kilometers for network devices such as core switches, routers, OLT upstream ports, etc

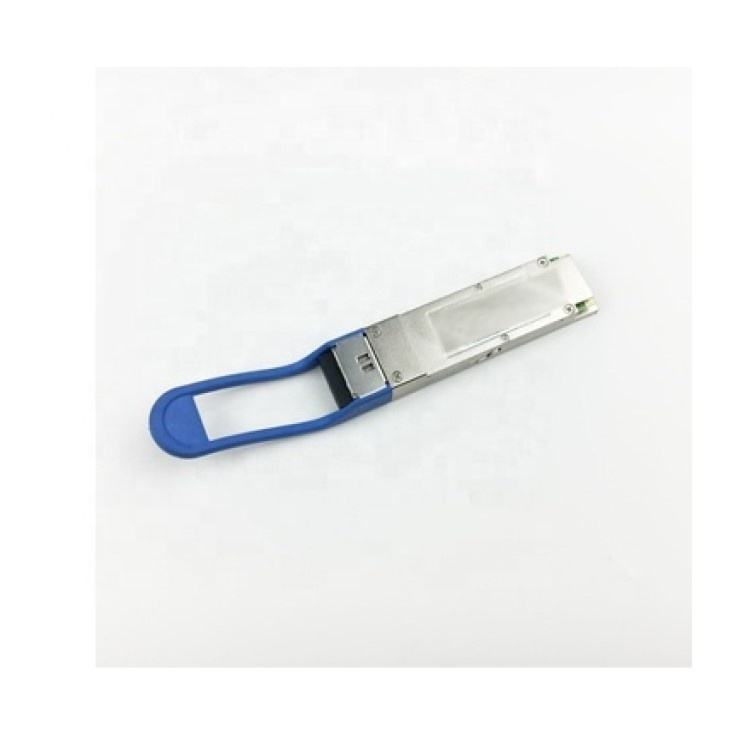

Details Images

QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)



Specification

Item Value
Basic Information
Module name QSFP28-100G-LR4
Part Number 02311KNU
Model QSFP28-100G-LR4
Form factor QSFP28
Application standard 100GBase-LR4
Connector type LC
Optical fiber type SMF
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s] 100 Gbit/s
Target transmission distance [km] Single-mode (G.652) optical fiber: 10 km
Transmitter Optical Characteristics
Center wavelength [nm] 1295 nm,1300 nm,1304 nm,1309 nm
Maximum Tx optical power [dBm] 4.5 dBm
Minimum Tx optical power [dBm] -4.3 dBm
Minimum extinction ratio [dB] 4 dB
Receiver Optical Characteristics
Rx sensitivity (AVG) [dBm] -8.6 dBm
Overload power (AVG) [dBm] 4.5 dBm
