S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch
S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch
S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch
S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch
S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch
S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch
S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch
S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch
Specifications
Brand Name :
Huawei
Model Number :
S5731-L8P2HT-RUA
Place of Origin :
China
MOQ :
1 unit
Price :
140-185USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Product Name :
Campus Fixed Switch
Maximum number of 10GE ports :
8
Maximum number of 100GE ports :
6 (with a license activated)
Console port :
RJ45
Power consumption :
165W
Part Number :
98011782
Chassis material :
Metal
Description

S5731-L8P2HT-RUA 98011782 1*GE Hybrid Optical-electrical SFP Port Campus Fixed Switch

Description

Huawei S5731-L8P2HT-RUA network switch is a Campus Fixed Switches, mainly positioned at the core layer of enterprise networks, the service access layer of data centers, and the aggregation core layer of campus networks. It is renowned for its flexible port combinations, high-performance forwarding capabilities, and rich cloud management features.
Huawei S5731-L8P2HT-RUA Campus Fixed Switches is a comprehensive, powerful and future-oriented intelligent core switch. It has 48 10-gigabit ports and 6 expansion slots, and can be smoothly upgraded to 40G/100G according to network development.TheS5731-L8P2HT-RUA is a very classic and popular model of Campus Fixed Switches.

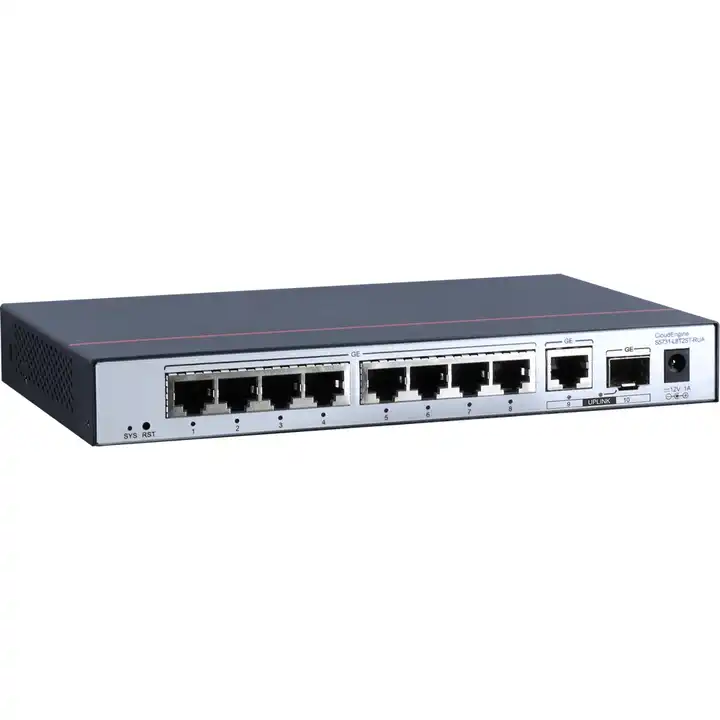

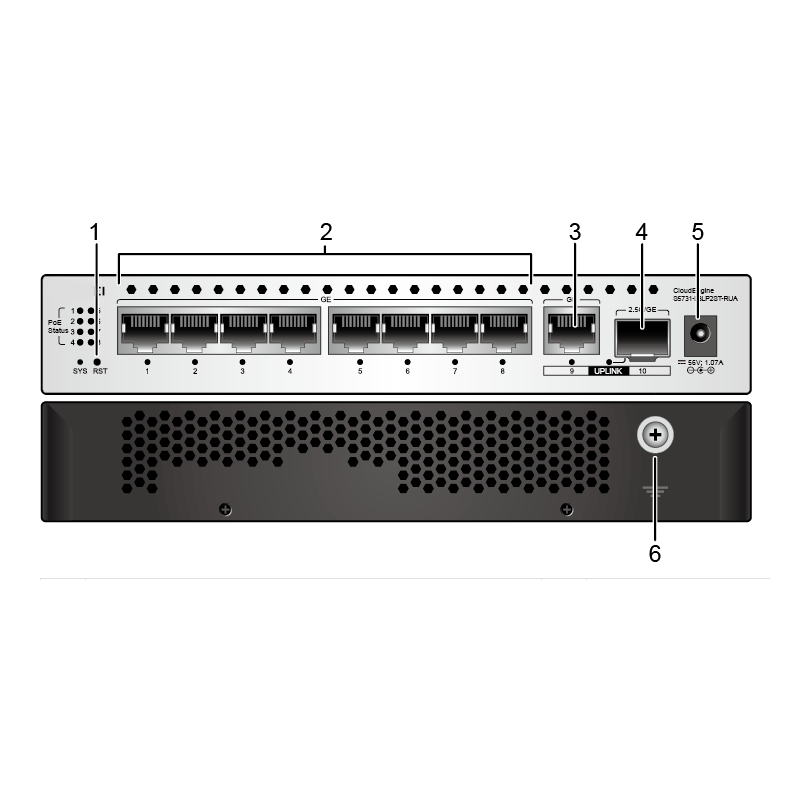

Pictures

S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch

S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch

Specification

Item Specification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 38.0 mm x 210.0 mm x 130.0 mm (1.5 in. x 8.27 in. x 5.12 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 38.0 mm x 210.0 mm x 130.0 mm (1.5 in. x 8.27 in. x 5.12 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 82.0 mm x 275.0 mm x 196.0 mm (3.23 in. x 10.83 in. x 7.72 in.)
Chassis height [U] 0.86 U
Chassis material Metal
Weight without packaging [kg(lb)] 0.75 kg (1.65 lb)
Weight with packaging [kg(lb)] 0.94 kg (2.07 lb)
Typical power consumption [W]

8.82 W (device)

10.82 W (device + power adapter)
Typical heat dissipation [BTU/hour]

30.09 (device)

36.92 (device + power adapter)
Maximum power consumption [W]
  • Without PoE: 9.60 W (device)/11.60 W (device + power adapter)
  • Full PoE load: 146 W (PoE: 131 W)
Maximum heat dissipation [BTU/hour]
  • Without PoE: 32.76 (device)/39.58 (device + power adapter)
  • Full PoE load: 498.17
Static power consumption [W] 5.6 W
MTBF [years] 71.36 years
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans): < 20
Number of card slots 0
Number of power slots 0
Number of fans modules 0
Redundant power supply Cold backup of uplink hybrid optical-electrical ports or electrical ports and power adapters, cold backup of uplink hybrid optical-electrical ports and electrical ports, and preferential power supply by power adapters (By default, no power adapter is provided, and the power adapter 02221024 can be used.)
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.).

The device cannot start when the temperature is lower than 0°C (32°F).

The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules:

- GE optical modules with a transmission distance of less than or equal to 10 km
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode
  • Power adapter
  • PoE_IN
Rated input voltage [V]

Power adapter input: 100–240 V AC; 50/60 Hz

PoE input: 56 V DC
Input voltage range [V]

Power adapter input: 90–290 V AC; 47–63 Hz

PoE input: 54–57 V DC
Maximum input current [A] 2.68 A
Memory -
Flash memory -
Console port Not supported
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±6 kV
Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof) IP20
Types of fans None
Heat dissipation mode Natural heat dissipation
Airflow direction -
PoE Supported
Certification

EMC certification

Safety certification

Manufacturing certification

S5731-L8P2HT-RUA 1*GE Hybrid Optical Electrical SFP Switch Campus Fixed Switch

Our Service

100% Low Price Guarantee:

networks-equipments.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are brand new and factory-sealed.For added assurance, each unit can be fully tested and verified to be in perfect working condition by engineer—upon your request.

100% Money Back Guarantee:

If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support:

networks-equipments.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Contact Us

Tel +86 135 9465 3689
Skype +86 135 9465 3689
WhatsApp/Wechat +86 135 9465 3689
Email KingKomosity@gmail.com
Website www.networks-equipments.com

FAQ

1. Why choose us?

We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.

2. What's the quality of the products?

All the items are brand original.

3. How to place an order?

After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,Wester,Union, Orders, Alipy and etc.

4. How about the shipment?

We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.

5. How about the warranty?

1 Year warranty.

6. Do you test all your goods?

A: Yes, we have professional engineer to test all devices before shipping.

7. What if machine not work during warranty?

Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.

8. How about your main products?

Our product lines include Switches, Routers, Server, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.

9. What brand of products do you offer?

A: We can provide all common brands in the market
