NE9000-8 02351PMK NetEngine 9000 Series Integrated Chassis Enterprise Service Router
NE9000-8 02351PMK NetEngine 9000 Series Integrated Chassis Enterprise Service Router
NE9000-8 02351PMK NetEngine 9000 Series Integrated Chassis Enterprise Service Router
NE9000-8 02351PMK NetEngine 9000 Series Integrated Chassis Enterprise Service Router
Specifications
Brand Name :
Huawei
Model Number :
NE9000-8
Place of Origin :
CHINA
MOQ :
1
Price :
3200-5400USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
3-7 work days
Packaging Details :
Original carton
Type :
Enterprise Router
Use :
core, aggregation, and access networks
Network :
Wireless Lan, Wired LAN, ONVIF, SDK, TCP, POE
Description

Product Description

The NetEngine 9000 series are large-capacity, high-reliability, energy-efficient routers designed to meet interconnection requirements in the cloud era. NetEngine 9000 series routers serve as core nodes on large Data Center Interconnect (DCI) networks, large enterprise networks, and metro networks, and as super-core nodes on carriers’ backbone networks.

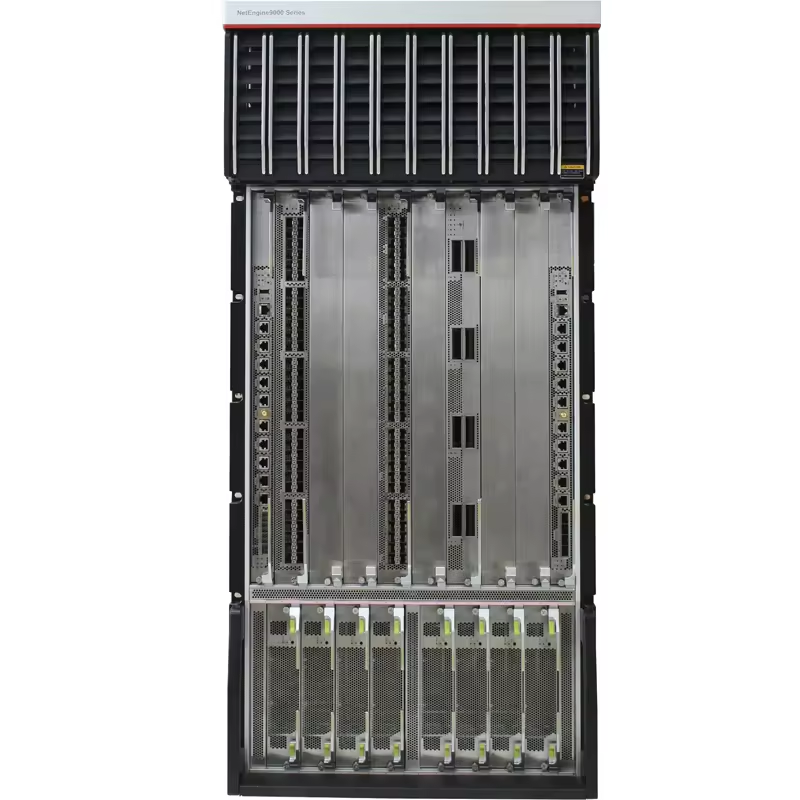

Details Images


NE9000-8 02351PMK NetEngine 9000 Series Integrated Chassis Enterprise Service Router

NE9000-8 02351PMK NetEngine 9000 Series Integrated Chassis Enterprise Service Router


Specification


Item
Specification
Cabinet installation standards
Can be installed in an 1000 mm-deep standard 19-inch cabinet and is installed in a 2200 mm-high HW N610E cabinet by default.
Dimensions without packaging (H x W x D) [mm(in.)]
1016 mm x 442 mm x 945 mm (40 in. x 17.4 in. x 37.2 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
1016 mm x 442 mm x 945 mm (40 in. x 17.4 in. x 37.2 in.)
Chassis height [U]
23 U
Weight without packaging [kg(lb)]
181 kg (399.0 lb)
Weight without packaging (full configuration) [kg(lb)]
374kg (824.5 lb)
Typical power consumption (with configuration) [W]
Typical 7970W (include 8 PMs, 3 LPU FANs, 2 SFU FANs)
2 MPU + 8 SFU + 8 20x100G QSFP28
Typical 13500W (include 9 PMs, 3 LPU FANs, 2 SFU FANs)
2 MPU + 8 SFU + 8 40x100G QSFP28
Typical 9079W (include 8 PMs, 3 LPU FANs, 2 SFU FANs)
2 MPU + 8 SFU + 20 20x100G QSFP28 (03058864)
Typical heat dissipation (with configuration) [BTU/hour]
25858 BTU/hour (include 8 PMs, 3 LPU FANs, 2 SFU FANs)
2 MPU + 8 SFU + 8 20x100G QSFP28
43799.7 BTU/hour (include 9 PMs, 3 LPU FANs, 2 SFU FANs)
2 MPU + 8 SFU + 8 40x100G QSFP28
29456.1 BTU/hour (include 8 PMs, 3 LPU FANs, 2 SFU FANs)
2 MPU + 8 SFU + 20 20x100G QSFP28 (03058864)
MTBF [year]
18.87 year
MTTR [hour]
0.5 hour
Availability
0.99999
Power supply mode
DC built-in
Maximum number of power chassis inputs
(8 channels/PEM)*3 PEM=(2 channels/PM)*4 PM*3 PEM=24 channels
Rated input voltage [V]
-48 V / -60 V
Input voltage range [V]
–40 V to –72 V
Maximum input current [A]
63 A/single-module
Maximum input cable size [mm²]
35 mm²/channel
Front-end circuit breaker/fuse [A]
2 channels of 63 A/single-module
[4T bundle] DC device: 6 PMs, with a total of 12 channels of 63 A
Noise at normal temperature (acoustic power) [dB(A)]
77.2dBA, NEBS-compliance (< 78 dBA @ 27°C)
Number of slots
18
Number of service board slots
8
Switching capacity
83.78 Tbit/s
Redundant MPUs
1:01
Redundant Switch fabrics
7+1
Redundant CMUs
1:01
Redundant power supply
[4T bundle] 5+1
Redundant fans
The device has two fan partitions. The LPU partition has three fan assemblies, which support 2+1 fan assembly redundancy. The SFU
partition has two fan assemblies, which support 1+1 fan assembly redundancy.
Long-term operating temperature [°C(°F)]
0 °C ~ 40°C(32 °F ~ 104.0°F)
Short-term operating temperature [°C(°F)]
-5 °C ~ 50°C (23 °F ~ 122.0°F)
Storage temperature [°C(°F)]
-40 °C ~ 70 °C (-40.0°F ~ 158.0°F)
Long-term operating relative humidity [RH]
5% to 85%, non-condensing
Short-term operating relative humidity [RH]
5% to 95% RH, non-condensing
Storage relative humidity [RH]
5% to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]
≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature
of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].)
Storage altitude [m(ft.)]
< 5000 m (16404.2 ft.)
