USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall
USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall
USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall
USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall
USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall
USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall
Specifications
Brand Name :
Huawei
Model Number :
USG6636F
Certification :
CQC
Place of Origin :
China
MOQ :
1 unit
Price :
3400-3700USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Product Name :
USG6636F
Type :
Firewalls
PoE :
Not supported
Description

USG6636F-AC 02356NLG 02356NLK AC Host Network Firewall

Description

HiSecEngine USG6500F series AI firewalls are new-generation AI firewalls launched by Huawei for small enterprises, industry branches, and chain business organizations. With unique content detection engine (CDE), the USG6500F series can detect viruses with over 100 layers of compression and multi-layer hidden viruses. Through integrated deployment of the network and security controllers, network and security policies can be configured and delivered in a unified manner, reducing OPEX by 80%.

Pictures

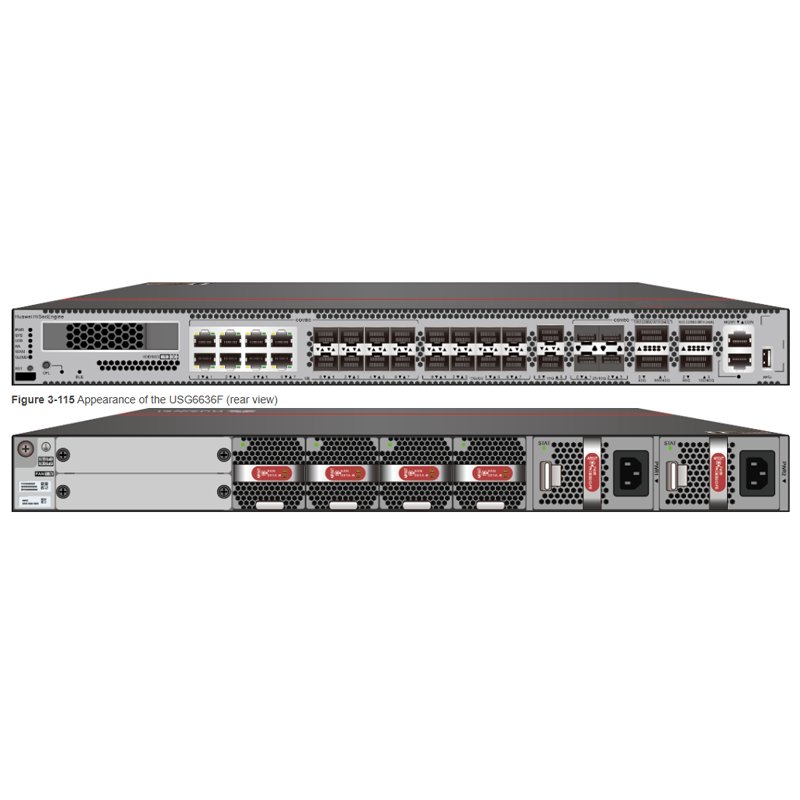

USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall

Specification

Item Specification
Installation Type Rack
Cabinet installation standard Cabinet with a depth of 600 mm or above
Dimensions without packaging (H x W x D) [mm(in.)]
  • Typical dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442 mm x 470 mm (1.72 in. x 17.4 in. x 18.5 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 550 mm x 650 mm (7.28 in. x 21.65 in. x 25.59 in.)
Chassis height [U] 1 U
Weight with packaging [kg(lb)]
  • USG6636F-AC (02356NLG): 11.005 kg (24.26 lb)
  • USG6636F-DC (02356NLK): 9.673 kg (21.33 lb)
Weight without packaging [kg(lb)]
  • USG6636F-AC (02356NLG): 8.035 kg (17.71 lb)
  • USG6636F-DC (02356NLK): 6.703 kg (14.78 lb)
CPU One CPU, 16 cores/CPU, 2.0 GHz dominant frequency
Memory DDR4 32GB with ECC
NOR Flash 64 MB
NAND Flash 4GB
Hard disk Optional. You can purchase a 2.5-inch SATA hard disk from Huawei based on the site requirements. The hard disk is hot swappable. For details, see the description of HDD and SDD in Storage Devices > Hard Disk.
Console port RJ45
Eth Management port RJ45
Typical power consumption [W]
  • USG6636F-AC (02356NLG): 137.6 W
  • USG6636F-DC (02356NLK): 129.2 W
Typical heat dissipation [BTU/hour]
  • USG6636F-AC (02356NLG): 469.51 BTU/hour
  • USG6636F-DC (02356NLK): 440.85 BTU/hour
Maximum power consumption [W]
  • USG6636F-AC (02356NLG): 183 W
  • USG6636F-DC (02356NLK): 178 W
Maximum heat dissipation [BTU/hour]
  • USG6636F-AC (02356NLG): 624.42 BTU/hour
  • USG6636F-DC (02356NLK): 607.36 BTU/hour
MTBF [years] 37.04 years
MTTR [hours] 1.62 hours
Availability
  • USG6636F-AC (02356NLG): 0.999997
  • USG6636F-DC (02356NLK): 0.999998
Power supply mode
  • USG6636F-AC (02356NLG): AC pluggable
  • USG6636F-DC (02356NLK): DC pluggable
Number of power modules 2
Redundant power supply 1+1
Rated input voltage [V]
  • USG6636F-AC (02356NLG):
    • AC: 100 V to 240 V, 50 Hz/60 Hz
    • High-voltage DC: 240 V, DC
  • USG6636F-DC (02356NLK):
    • +48 V DC
    • -48 V DC to -60 V DC
Input voltage range [V]
  • USG6636F-AC (02356NLG):
    • AC: 90 V to 290 V, 45 Hz to 65 Hz
    • High-voltage DC: 190–290 V, DC
  • USG6636F-DC (02356NLK):
    • +40 V DC to +57 V DC
    • -38.4 V DC to -72 V DC
Maximum input current [A]
  • USG6636F-AC (02356NLG): 8 A/power module
  • USG6636F-DC (02356NLK): 12 A/power module
Rated output power [W]
  • USG6636F-AC (02356NLG): 600W/12V
  • USG6636F-DC (02356NLK): 400 W/12 V
Maximum output power [W]
  • USG6636F-AC (02356NLG): 600 W/power module
  • USG6636F-DC (02356NLK): 400 W/power module
Types of fans Pluggable
Number of fan modules 4
Automatic fan speed adjustment Supported
Heat dissipation mode Absorbing cold air into the device
Airflow direction Front-to-back airflow
Redundant fans 3+1
PoE Not supported
Noise at normal temperature (acoustic power) [db(A)] ≤72dB(A)
Long-term operating temperature [°C(°F)]
  • Without HDDs: 0°C to 45°C (32°F to 113°F)
  • With HDDs: 5°C to 40°C (41°F to 104°F)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Storage environment

ETSI EN 300 019-1-1 Class 1.2

NOTE:
  • The product has a valid storage period of one year.
  • The valid storage period refers to the period during which the product maintains the required quality when stored with packing materials in an environment that meets the preceding requirements.
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]
  • Without HDDs: 0 m to 5000 m (0 ft to 16404 ft)
  • With HDDs: 0 m to 3000 m (0 ft to 9843 ft)
Storage altitude [m(ft.)] 0 m to 5000 m (0 ft to 16404 ft)
