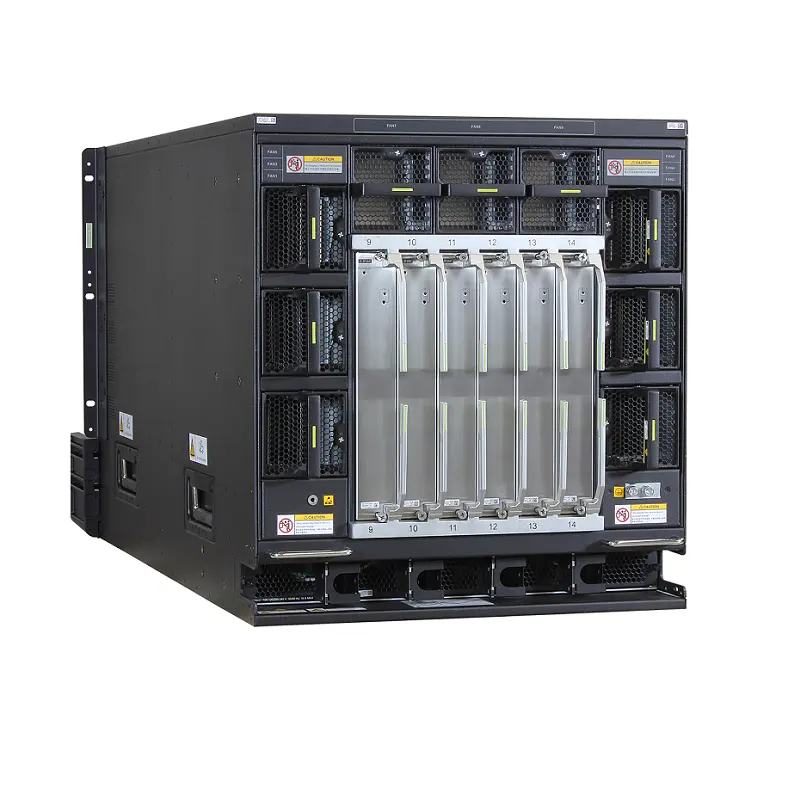

CE12804-AC CE12804-AH Huawei CE12800 02113774 Data Center Core Enterprise Switch
CE12804-AC CE12804-AH Huawei CE12800 02113774 Data Center Core Enterprise Switch
CE12804-AC CE12804-AH Huawei CE12800 02113774 Data Center Core Enterprise Switch
CE12804-AC CE12804-AH Huawei CE12800 02113774 Data Center Core Enterprise Switch
CE12804-AC CE12804-AH Huawei CE12800 02113774 Data Center Core Enterprise Switch
CE12804-AC CE12804-AH Huawei CE12800 02113774 Data Center Core Enterprise Switch
CE12804-AC CE12804-AH Huawei CE12800 02113774 Data Center Core Enterprise Switch
CE12804-AC CE12804-AH Huawei CE12800 02113774 Data Center Core Enterprise Switch
Specifications
Brand Name :
Huawei
Model Number :
CE12804
Certification :
CQC
Place of Origin :
China
MOQ :
1 unit
Price :
2420-3900 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Product Name :
Data Center Core Switch
Part number :
02113774 02114450
Packet forwarding rate :
17280Mpps
Backplane bandwidth :
40T/80Tbps
Function :
PoE VLAN QoS
Description

CE12800 Series CE12804-AC CE12804-AH High-performance Data Center Core Enterprise Switch

Description

CE12804 is an enterprise-level switch, mainly applied in the core or aggregation layer of data centers and large enterprise networks, providing high-performance data exchange services.
This device adopts a modular design, supports flexible expansion of various business boards, and has the ability to configure high-density ports. The hardware is based on distributed forwarding technology, supporting dual protocol stacks of IPv4/IPv6 and network protocols such as VXLAN, and is suitable for construction in complex network environments
Supports QoS and combined flow classification based on Layer2, Layer3, Layer4 priorities, etc
Supports VLAN function, supports Access, Trunk, Hybrid methods, default VLAN and QinQ

Pictures

CE12804-AC CE12804-AH Huawei CE12800 02113774 Data Center Core Enterprise Switch

Specification

Remarks
Not supported in V200R005C20 and V200R020C00.
Depth[mm]
970 mm
Chassis height[U]
11
Wide[mm]
442 mm
Height[mm]
486.15 mm
Weight without packaging[kg(lb)]
91 kg (200.62 lb)
Heat dissipation mode
The power module has its own fans, which use a front-to-back airflow design.
Power supply mode
AC/HVDC pluggable
Rated input voltage[V]
- AC: 110 V AC/220 V AC; 50 Hz/60 Hz
- High-voltage DC (HVDC): 240 V DC
Input voltage range[V]
- AC: 100 V AC to 120 V AC/200 V AC to 240 V AC
Maximum voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz (PAC-2700WA)/47 Hz to 63 Hz (PHD-3000WA)
- High-voltage DC (HVDC): 188 V DC to 288 V DC
Maximum input current[A]
AC input. Maximum input current:
Using PAC-2700WA power modules: 16 A
Using PHD-3000WA power modules: 18.5 A
Maximum output power[W]
Maximum output power of AC power modules when PAC-2700WA power modules are used:
380 V three-phase, 220 V single-phase, or 110 V dual-live-wire AC input:
N+N backup, N+1 backup, and N+0 (N ≤ 2): 2700 W x 2 = 5400 W
110 V single-live-wire AC input:
N+1 backup (N ≤ 3): 1200 W x 3 = 3600 W
N+0 (N ≤ 4): 1200 W x 4 = 4800 W
Using PHD-3000WA power modules:
380 V three-phase, 220 V single-phase, or 110 V dual-live-wire AC input:
N+N backup, N+1 backup, and N+0 (N ≤ 2): 3000 W x 2 = 6000 W
110 V single-live-wire AC input:
N+1 backup (N ≤ 3): 1500 W x 3 = 4500 W
N+0 (N ≤ 4): 1500 W x 4 = 6000 W
Maximum output power of high-voltage DC power modules in N+N, N+1, or N+0 (N≤2) backup mode: 3000 W x 2 = 6000 W
Switching capacity[bps,bit/s]
To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Redundant fans
Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Redundant power supply
- Dual-input power supply system: N+N backup is recommended.
- Single-input power supply system: N+1 backup
Dual-input power supply is recommended to ensure reliability.
Redundant Switch fabrics
The SFUs complete switching of service data in the entire system and work in load balancing and redundancy mode.
Redundant MPUs
1:1
Number of power modules
4
Airflow direction
Front-to-back airflow
Storage temperature[°C(°F)]
–40°C to +70°C (–40°F to +158°F)
Long-term operating temperature[°C(°F)]
0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Note:
When the altitude is 1800–4000 m (5096–13123.20 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage relative humidity[RH]
5% RH to 85% RH, noncondensing
Long-term operating altitude[m(ft.)]
＜4000 m
MTBF[year]
40.28 years
MTTR[hour]
1 hour
Number of LPU slots
4
Number of SFU slots
6
Number of MPU slots
2
Number of slots
12
Availability
0.9999972
