Quidway S9300X-4 POE Network Switch S9300X Series 10U 100GE L2/L3 Layer Core Routing Switch
Quidway S9300X-4 POE Network Switch S9300X Series 10U 100GE L2/L3 Layer Core Routing Switch
Quidway S9300X-4 POE Network Switch S9300X Series 10U 100GE L2/L3 Layer Core Routing Switch
Quidway S9300X-4 POE Network Switch S9300X Series 10U 100GE L2/L3 Layer Core Routing Switch
Quidway S9300X-4 POE Network Switch S9300X Series 10U 100GE L2/L3 Layer Core Routing Switch
Quidway S9300X-4 POE Network Switch S9300X Series 10U 100GE L2/L3 Layer Core Routing Switch
Specifications
Brand Name :
Huawei
Model Number :
S9300X-4
Certification :
CQC
Place of Origin :
China
MOQ :
1 unit
Price :
5700-14000 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Product Name :
Enterprise Data Center Switch
Maximum power consumption :
3344W
Switching capacity :
19.2 Tbps/256 Tbps (dual stack)
Packet forwarding rate :
5760 Mpps/19200 Mpps
Single slot bandwidth :
up to 4.8 Tbps
Maximum port density :
96 × 100GE/192 × 25GE/384 × 10GE
Description

Quidway S9300X-4 POE Network switch S9300X series 100GE L2/L3 layer core routing switch


Description

S9300X-4 is the flagship quad slot frame core switch of Huawei CloudEngine S9300X series. It adopts a Clos architecture that separates the main control and switch, with a maximum bandwidth of 4.8Tbps per slot. It focuses on compact and high-density, cloud network integration, intelligent operation and maintenance, and green energy saving.
Positioning: Core/aggregation of medium and large industrial parks, edge of metropolitan area networks, core of small and medium-sized data centers, suitable for 100G/400G backbone deployment and VXLAN cloud networking.
Form: 10U rack mounted, with fully redundant key components, balancing performance and room space utilization.

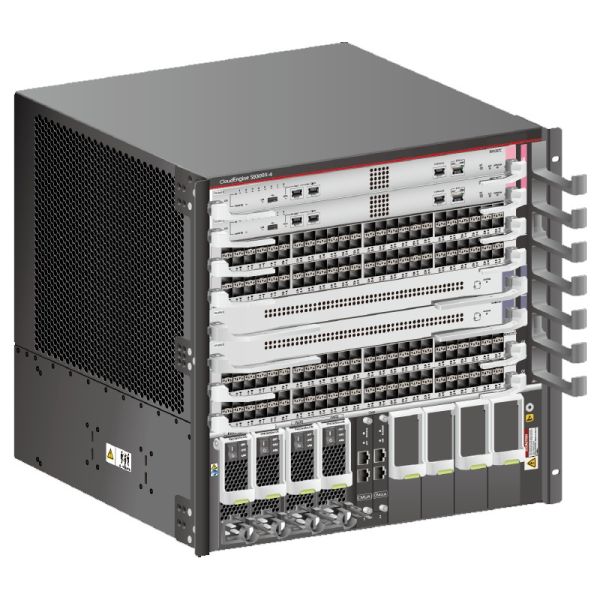

Pictures

Quidway S9300X-4 POE Network Switch S9300X Series 10U 100GE L2/L3 Layer Core Routing Switch


Specification


project Specifications
Business slot 4 (LPU)
Main control slot position 2 (1+1 redundancy, MPUE/MPUEC)
Exchange network slot position 2 (SFU-E/SFU-MX, supports upgrades)
Centralized monitoring slot 2 (CMU, real-time monitoring of hardware status)
Power slot position 4 (AC/DC optional, supporting N+N/N+1 redundancy)
Fan frame 2 (N+1 redundancy, intelligent speed regulation, ventilation and heat dissipation)
Whole machine form 10U rack mounted, size 442 × 517.4 × 441.7mm
Empty weight About 24.5kg
Maximum Power Consumption Approximately 3344W
cooling air duct Left and front air intake, rear air outlet
switching capacity 19.2 Tbps/256 Tbps (dual stack)
Packet forwarding rate 5760 Mpps/19200 Mpps
Single slot bandwidth Maximum 4.8 Tbps (can be upgraded through swapping network boards)
Maximum port density 96×100GE/192×25GE/384×10GE
Cache capacity Supports a maximum data cache of 200ms per port
MAC table ≥4M
routing table ≥1M(IPV4)/≥512K(IPV6)
forwarding delay ≤3μs
