Specifications
Brand Name :
Huawei
Model Number :
CE6866-48S8CQ-PB CE6866-48S8CQ-PF
Certification :
CQC
Place of Origin :
China
MOQ :
1 unit
Price :
2700-3300 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Product Name :
Ethernet Data Center Switch
size :
1U standard rack
Configure port :
48*25G SFP28, 8*100G QSFP28
Memory (RAM) :
4 GB
Switch Capacity :
3.6Tbps / 28.8Tbps
Packet forwarding rate :
2400Mpps
Description

CE6866-48S8CQ-PB CE6866-48S8CQ-PF 8*100G QSFP28 Ethernet Data Center Switch 48*25G SFP28


Description


CloudEngine CE6866-48S8CQ is a high-density switch in the HW CloudEngine 6800 series, designed specifically for the core or aggregation layer of data centers, providing high performance, low latency, and high scalability. ‌

Key hardware specifications: The Ethernet Data Center Switch provides 48 25G SFP28 ports and 8 100G SFP28 ports (supporting upgrades to 200G), adopts a modular design, includes 2 power slots and 4 fan slots, supports hot swapping and redundant configuration to enhance reliability; According to different air duct designs, there are two variants: port side inlet air (part code 02353EGM) and port side outlet air (part code 02353EGL), which users need to choose based on the computer room environment. ‌
CE6866-48S8CQ does not support stacking function

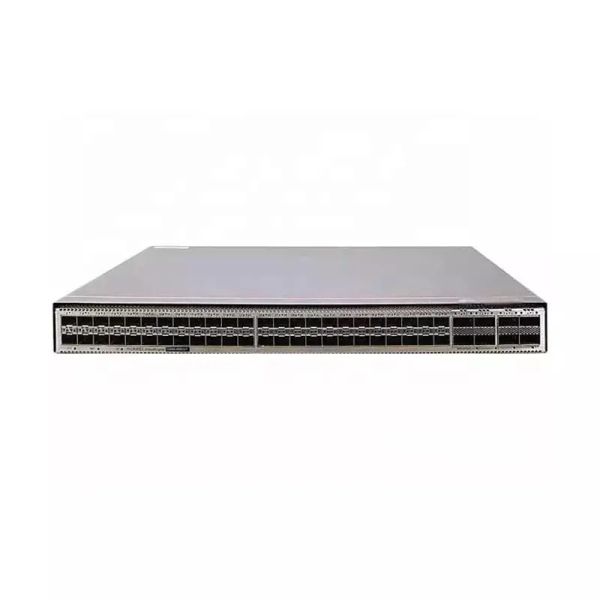

Pictures


CE6866-48S8CQ-PB CE6866-48S8CQ-PF 8*100G QSFP28 Ethernet Data Center Switch 48*25G SFP28


Specification



project CE6866-48S8CQ-PB CE6866-48S8CQ-PF
port configuration 48×10GE SFP+ + 8×100GE QSFP28 48×10GE SFP+ + 8×100GE QSFP28
port rate 48 × 10GE (backward compatible with GE); 8×100GE Ditto.
Port splitting 100GE port supports 1 × 40GE and 1 × 4 × 25GE Ditto.
exchange capacity 3.6Tbps / 28.8Tbps Ditto.
Forwarding performance 2400Mpps Ditto.
appearance 1U standard rack Ditto.
power supply Dual power redundancy, AC/DC optional Ditto.
heat dissipation Fan modularization, N+1 redundancy Ditto.
Airflow direction Port to Power (port inlet, power outlet) Power to Port (power inlet, port outlet)
typical scenario Cold aisle cabinet deployment Hot aisle cabinet deployment

CE6866-48S8CQ-PB CE6866-48S8CQ-PF 8*100G QSFP28 Ethernet Data Center Switch 48*25G SFP28
