Specifications
Brand Name :
C9300X-24Y-A
Model Number :
C9300X-24Y-A
Place of Origin :
Beijing
Packaging Details :
New original packaging Box
Supply Ability :
50 Piece/Pieces per Day
MOQ :
2 pieces
Price :
$5000-$5500/pieces 2-149 pieces
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
3 workingdays after payment
Private Mold :
NO
Products Status :
Stock
Ports :
24, 24*100/1000M Port
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
76G
Product Name :
C9300X-24Y-A
Device Type :
Switch - 24 Ports - Managed
Condition :
NIB Original
Warranty :
1 Year
Applications :
Telecommunication
Lead time :
3~7 Days
Shipping :
DHL FEDEX UPS
Description
Product Description

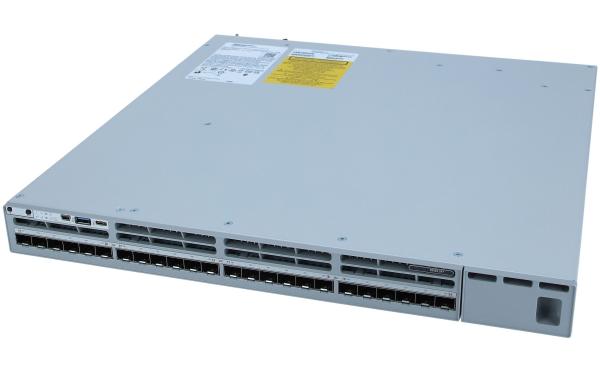

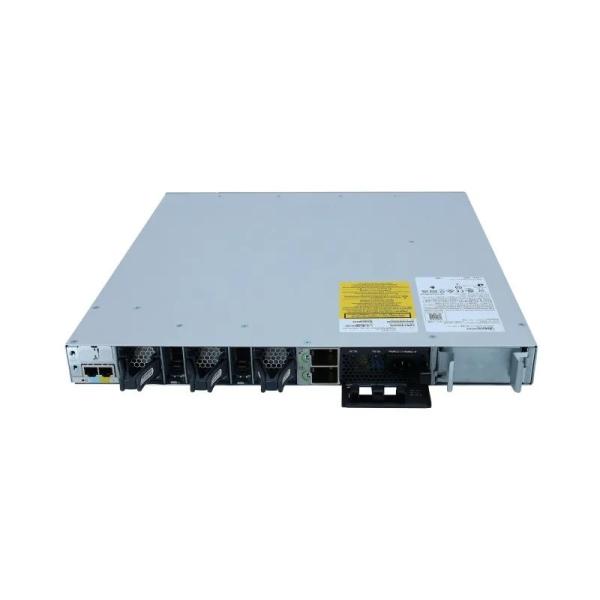

9300X series 24-port Poe+ Network Advantage Switch C9300X-24Y-A

The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued

innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid

workforce big and small. With Catalyst 9300 switches, you choose how you want to manage your network – on-premises,

virtual or from the cloud.

Product Code C9300X-24Y-A
Description 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage
General
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype 25 Gigabit Ethernet
Ports 24 x 1/10/25 Gigabit SFP28
Performance Switching capacity: 2000 Gbps ¦ Switching capacity with stacking: 3000 Gbps ¦ Forwarding rate: 1488 Mpps ¦ Forwarding rate with stacking: 2232 Mpps
Capacity IPv4 routing table entries: 39000 ¦ IPv6 routing table entries: 19500 ¦ Flexible NetFlow entries: 128000 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Packet buffer size: 32 MB ¦ MAC addresses: 32000 ¦ Multicast routing flow table: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 5000 ¦ PVST instances: 1000 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 1000 ¦ Jumbo frame size: 9198 byte
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm 128-bit AES
Features DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), StackWise-480 technology, StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, StackWise-1T technology
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM 16 GB
Flash Memory 16 GB
Status Indicators Status
Expansion / Connectivity
Interfaces 24 x 1/10/25GBase-X SFP28 ¦ 1 x USB 2.0
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply
Power Provided 715 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Dimensions & Weight
Width 17.5 in
Depth 17.6 in
Height 1.7 in

Cisco Catalyst 9300X Network Modules

9300X Series 24 Port Poe+ Switch Network Advantage Switch C9300X-24Y-A

Figure 1.

Cisco Catalyst 9300 Series Network Modules

Table 2. Network module numbers and descriptions

Network module Description
C9300X-NM-8M** Catalyst 9300X 8x 10G/1G Multigigabit Network Module
C9300X-NM-8Y** Catalyst 9300X 8x 25G/10G/1G Network Module
C9300X-NM-2C** Catalyst 9300X 2x 100G/40G Network Module
C9300X-NM-4C* Catalyst 9300X 4x 100G/40G Network Module
C9300-NM-4G Catalyst 9300 Series 4x 1G Network Module
C9300-NM-4M Catalyst 9300 Series 4x Multigigabit Network Module
C9300-NM-8X Catalyst 9300 Series 8x 10G/1G Network Module
C9300-NM-2Q Catalyst 9300 Series 2x 40G Network Module
C9300-NM-2Y Catalyst 9300 Series 2x 25G/10G/1G Network Module
