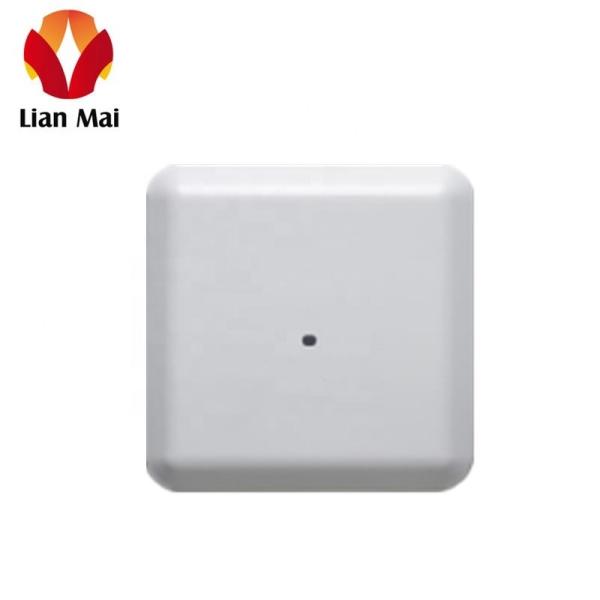

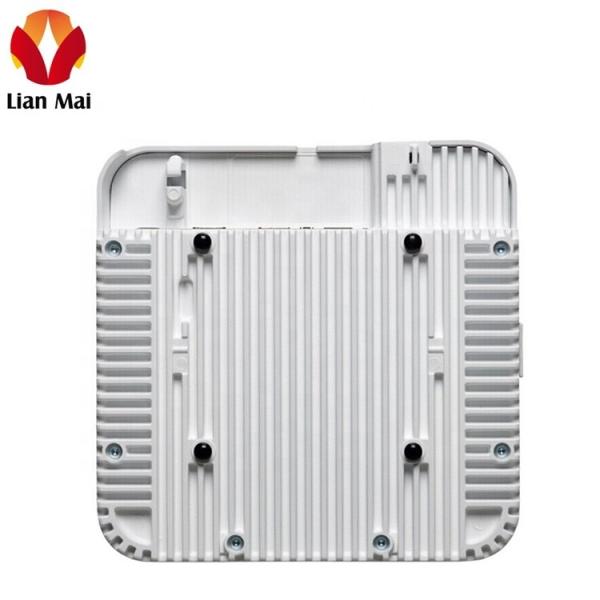

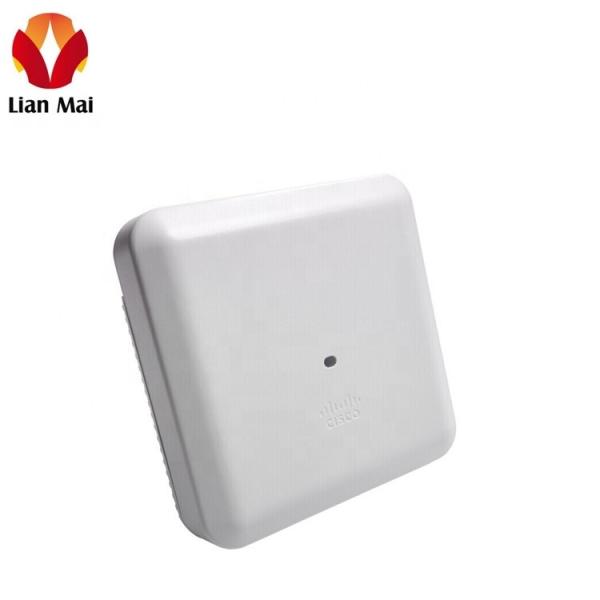

AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
AIR-AP2802I-H-K9 Cisco WAP PoE+ for Seamless Connectivity in Corporate Offices
Specifications
Brand Name :
Cisco
Place of Origin :
Beijing, China
Packaging Details :
New original packaging
MOQ :
2 pieces
Price :
$180.00/pieces 2-499 pieces
Model Number :
AIR-AP2802I-H-K9
Private Mold :
NO
Products Status :
Stock
Product name :
AIR-AP2802I-H-K9
Warranty :
1 Year
Wireless Type :
802.11G, 802.11n
Power :
802.3af Ethernet Switch Power Injectors Local Power supply
Flash Memory :
256 MB
RAM :
1 G
Dimensions (W x L x H) :
8.66 x 8.68 x 2.17 in.
Weight :
3.53 lb (1.6 kg)
Delivery time :
1~2 days
Antenna :
Internal Antenna
Description

Cisco AIR-AP2802I-H-K9: The Next Generation High-Performance Wi-Fi 5

The Cisco AIR-AP2802I-H-K9 is a premier indoor 802.11ac Wave 2 Cisco Wireless AP, engineered for large enterprises and high-density environments.

Unmatched Wave 2 Performance

This advanced Cisco Wireless AP boasts 4x4 MU-MIMO with three spatial streams, delivering up to 5.2 Gbps combined throughput. Its Flexible Radio Assignment allows for intelligent dual 5 GHz operation, providing superior capacity for bandwidth-intensive applications where traditional APs struggle.

Intelligent RF for Reliability

Leveraging Cisco's ClientLink 4.0 and CleanAir technology, the Aironet 2802I ensures robust and reliable connectivity. These features optimize client roaming and minimize interference, offering a seamless user experience beyond what a basic Cisco Network Switch setup can provide.

Robust & Future-Ready Connectivity

Equipped with dual Gigabit Ethernet ports (LACP supported) and PoE+/UPOE, the AIR-AP2802I-H-K9 provides strong backhaul. A USB 2.0 port also offers future IoT module expansion capabilities.

Scalable & Secure Management

Designed for large-scale networks, this Aironet 2802I is a controller-based access point, managed by Cisco Wireless LAN Controllers (WLCs) or Cisco DNA Center. This ensures centralized control, enhanced security, and simplified scalability.

Cisco AIR-AP2802I-H-K9 Detailed Parameters

For a comprehensive look at its technical capabilities, here are the detailed specifications:

Parameter Category Parameter Specification
Wireless Wi-Fi Standard 802.11ac Wave 2 (backward compatible with a/b/g/n)
Frequency Bands Dual-band (2.4 GHz & 5 GHz concurrent)
MIMO Configuration 4x4 MU-MIMO with 3 spatial streams (both 2.4 GHz and 5 GHz)
Maximum Data Rate (Combined) Up to 5.2 Gbps (PHY data rates)
Channel Support 20-, 40-, 80-, 160-MHz channels
Antenna Type Integrated (Omni-directional 2.4 GHz, Directional/Omni 5 GHz)
Flexible Radio Yes (can operate as dual 5 GHz or 5 GHz + Wireless Security Monitoring)
Wired Interfaces Ethernet Ports 2 x 100/1000BASE-T autosensing (RJ-45) with Link Aggregation (LACP)
Console Port 1 x RJ-45 (management)
USB Port 1 x USB 2.0 (Type A, enabled via future software)
Power over Ethernet (PoE) 802.3at PoE+, Cisco Universal PoE (UPOE)
Physical Dimensions (WxDxH) 22.0 x 22.05 x 5.51 cm (8.66 x 8.68 x 2.17 inches)
Weight Approx. 1.6 kg (3.53 lbs)
Mounting Ceiling, Wall (mounting bracket and clip included)
Power Power Consumption Typical 26W (max 30W with USB enabled)
Power Source 802.3at PoE+ or optional power injector (AIR-PWRINJ6=)
Environmental Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 10% to 90% (non-condensing)
Management Deployment Modes Controller-based (Cisco WLCs, Cisco DNA Center), Mobility Express (Limited)
Part Number Model Code AIR-AP2802I-H-K9
Regulatory Domain Domain Code H (Various countries including some in Asia, Europe, Middle East, Africa)
