Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Cisco 10GBASE-LR X2 Transceiver Module For 10km Single Mode Fiber 1310nm
Specifications
Brand Name :
Cisco SFP Module
Place of Origin :
Beijing, China
Packaging Details :
Original brand new box
Supply Ability :
100 Piece/Pieces per Day
MOQ :
2 pieces
Price :
$200.00/pieces 2-299 pieces
Model Number :
X2-10GB-LR
Private Mold :
NO
Products Status :
Stock
Product name :
X2-10GB-LR
Device Type :
10GBASE Module
Transmission distance :
10km
Wavelength (nm) :
1310
Warranty :
1 Year
Form Factor :
Plug-in module
Cabling Type :
10GBase-LR
Optical Wave Length :
1310 nm
Max Transfer Distance :
6.2 miles
Interfaces :
1 x Ethernet 10GBase-LR - SC/PC single-mode x 2
Description

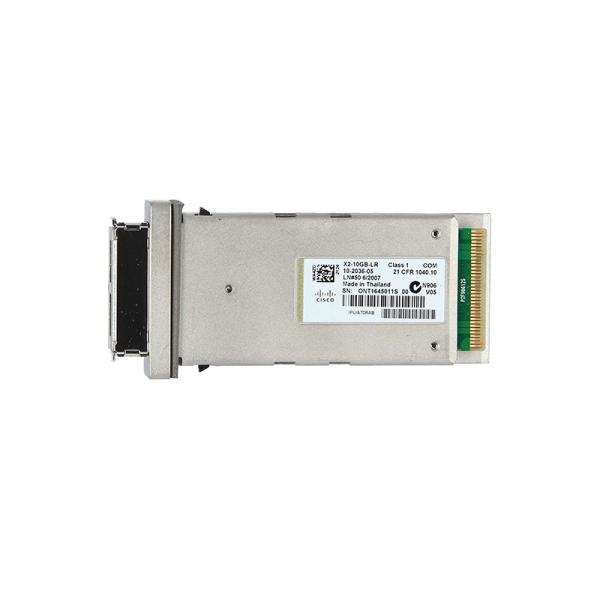

Cisco X2-10GB-LR: 10 Gigabit Ethernet Long Reach X2 Transceiver

The Cisco X2-10GB-LR is a robust 10 Gigabit Ethernet X2 transceiver module designed for reliable, long-distance network connections. Operating at a 1310nm wavelength over single-mode fiber (SMF), it supports links up to 10 kilometers. This module is ideal for extending 10GbE connectivity within large data centers, across enterprise campuses, or in service provider networks, commonly used with Cisco Network Switch platforms.

Extended 10Gbps Connectivity

This X2 module provides 10 Gigabit Ethernet connectivity for distances up to 10 km over single-mode fiber. It's an effective solution for interconnecting core network devices or extending reach in metropolitan area networks.

Reliable Performance with DOM

Featuring Digital Optical Monitoring (DOM) capabilities, the X2-10GB-LR allows real-time visibility into module performance parameters. This aids in network health monitoring and efficient troubleshooting, ensuring robust operation.

Legacy Form Factor, Proven Reliability

While the X2 form factor is larger than newer SFP+ modules, it offers proven reliability for existing deployments. It provides a straightforward upgrade path for older generation Cisco switches to 10 Gigabit Ethernet speeds.

Critical for High-Bandwidth Networks

The X2-10GB-LR serves as a vital component in 10 Gigabit backbones, providing necessary optical links for high-speed data flow. It supports connections between Cisco Network Switch devices and facilitates the high-capacity uplinks required by Cisco Wireless AP systems in large-scale deployments.

Cisco X2-10GB-LR Detailed Parameters

Parameter Category Parameter Specification
Device Type Model X2-10GB-LR
Product Type X2 Transceiver Module
Standard 10GBASE-LR
Connector SC Duplex
Performance Data Rate 10.3125 Gbps (10 Gigabit Ethernet)
Max Distance 10 km (6.2 miles)
Fiber Type Single-Mode Fiber (SMF, e.652)
Optical Characteristics Wavelength 1310 nm
Laser Type DFB (Distributed Feedback) Laser
DOM/DDM Support Yes (Digital Optical Monitoring)
Power Power Consumption Typically < 4.0 W
Voltage 3.3V
Physical Specifications Dimensions (H x W x D) 12.5 x 36 x 91 mm (0.49 x 1.42 x 3.58 inches)
Weight (Approximate) 65 g (0.14 lbs)
Environmental Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 10% to 90% non-condensing
Compliance Standards IEEE 802.3ae, X2 MSA Compliant
Safety Class 1 Laser Product
