Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Cisco Gigabit Ethernet Switch 4 Port Network Interface Module For Flexible Network Expansion
Specifications
Brand Name :
Cisco Router Module
Place of Origin :
Beijing, China
Packaging Details :
Original brand new box
Supply Ability :
30 Piece/Pieces per Day
MOQ :
2 pieces
Price :
$190.00/pieces 2-299 pieces
Model Number :
NIM-ES2-4
Private Mold :
NO
Products Status :
Stock
Model :
NIM-ES2-4
Condition :
New
Product Type :
Module
Warranty :
1 Year
Weight :
79g (0.17 lb)
Description

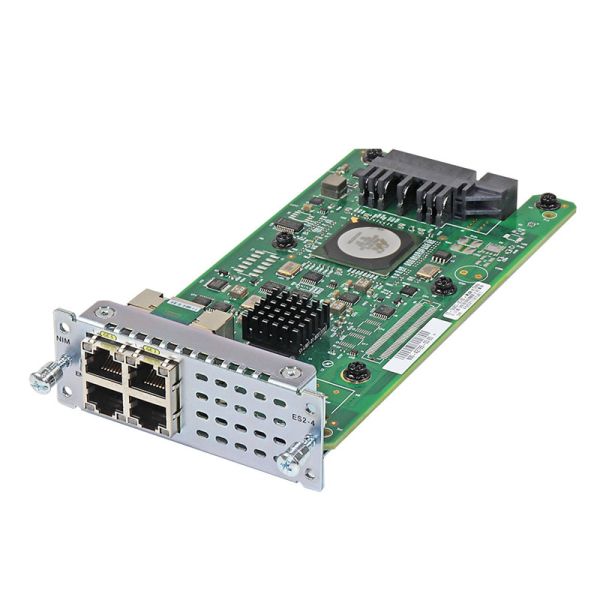

Cisco NIM-ES2-4: 4-Port Gigabit Ethernet Network Interface Module

The Cisco NIM-ES2-4 is a versatile 4-port Gigabit Ethernet switch Network Interface Module, designed for Cisco 4000 Series Integrated Services Routers (ISRs). This module integrates robust LAN switching capabilities directly into your router, providing a high-density solution for connecting wired devices in branch offices. It extends the functionality of your ISR, effectively adding a Cisco Network Switch directly into the router chassis.

Integrated LAN Switching

This NIM provides four Gigabit Ethernet ports, allowing you to connect local devices directly to your ISR. It supports Layer 2 switching features, streamlining your branch office network design by consolidating routing and switching functions.

High-Density Connectivity

With four dedicated Gigabit Ethernet ports, the NIM-ES2-4 offers increased port density within the compact NIM form factor. This makes it efficient for expanding your local area network connectivity for various devices.

Flexible Modularity for ISRs

As a Network Interface Module, the NIM-ES2-4 easily slots into compatible Cisco 4000 Series ISRs. This modular design allows businesses to scale and customize their network capabilities as needed, providing investment protection.

Optimizing Branch Office Networks

The NIM-ES2-4 is ideal for branch office environments looking to simplify their network architecture. It supports local device connections and provides ample bandwidth for traffic coming from wired clients and can backhaul data from Cisco Wireless AP deployments.

Cisco NIM-ES2-4 Detailed Parameters

Parameter Category Parameter Specification
Device Type Model NIM-ES2-4
Product Type 4-Port Gigabit Ethernet Switch Network Interface Module
Form Factor Network Interface Module (NIM)
Connectivity Ports 4 x 10/100/1000BASE-T (RJ-45)
Interface Type Gigabit Ethernet (LAN Switch)
Performance Switching Capacity Varies based on router platform (integrated with router's backplane)
Features Layer 2 Features VLANs, QoS, Spanning Tree, Port Security, etc.
PoE Support No (Standard Ethernet ports only)
Compatibility Compatible Routers Cisco 4000 Series Integrated Services Routers (ISRs)
Physical Specifications Dimensions H x W x D 31.75 x 88.9 x 185.42 mm (1.25 x 3.5 x 7.3 inches)
Weight Approximate 0.23 kg (0.5 lbs)
Environmental Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 5% to 85% non-condensing
Compliance Standards IEEE 802.3ab (Gigabit Ethernet)
Safety/EMC Regulatory compliance specific to Cisco NIMs
