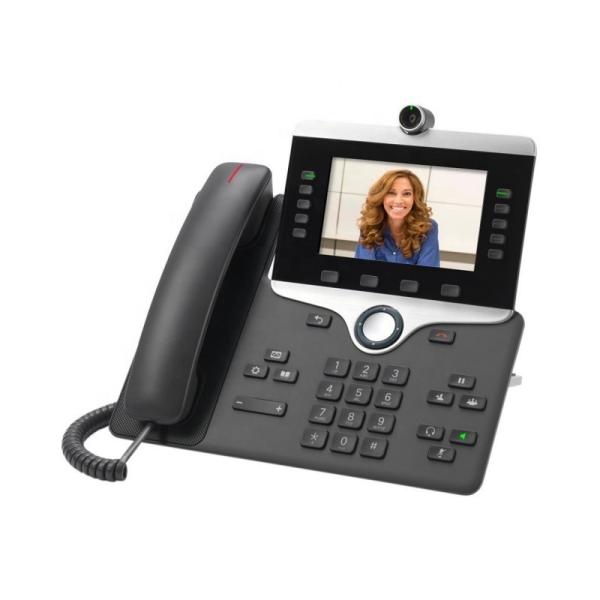

Cisco CP-8845-K9=: High-Definition Video IP Phone for Modern Collaboration

The Cisco CP-8845-K9= is a sophisticated multi-line IP Phone from the Cisco IP Phone 8800 Series, featuring integrated 720p HD video capabilities. Designed for knowledge workers, managers, and executives, this phone offers an immersive visual communication experience, exceptional audio quality, and advanced features like USB and Bluetooth integration. It seamlessly connects to your Cisco Network Switch infrastructure and Cisco Unified Communications Manager, transforming desktop communication into a rich collaborative experience.

Integrated HD Video for Personal Interaction

Equipped with a built-in 720p HD camera and a vibrant 5-inch widescreen color display, the CP-8845-K9= enables face-to-face video calls directly from your desk. This visual component enhances engagement and clarity in every conversation.

Superior Audio and Advanced Features

Experience crystal-clear conversations with high-fidelity wideband audio support. The phone offers five programmable line keys, a full-duplex speakerphone, and supports a wide range of voice codecs. Integrated USB and Bluetooth connectivity provide flexibility for headsets and mobile devices.

Robust Security and Network Integration

The "K9" designation ensures secure communications with encryption for signaling and media, protecting sensitive information. Its dual Gigabit Ethernet ports provide high-speed network access and pass-through to a PC, integrating flawlessly into your Cisco Network Switch environment.

Enhancing Productivity and Collaboration

The CP-8845-K9= is built for modern workstyles, supporting features like mobile voice (via Bluetooth), XML applications, and a user-friendly interface. It's a powerful tool for streamlining workflows and fostering collaboration, whether in the office or leveraging Cisco Wireless AP connections.

Cisco CP-8845-K9= Detailed Parameters

Parameter Category	Parameter	Specification
Device Type	Model	CP-8845-K9=
	Product Type	Multi-Line IP Phone with Integrated Video
Display	Type	5-inch (12.7 cm) WVGA, color, backlit, pixel-based
	Resolution	800 x 480 pixels
Video	Integrated Camera	Yes
	Video Resolution	Up to 720p HD (H.264)
Connectivity	Ethernet Ports	2 x Gigabit Ethernet (RJ-45)
	PoE Support	IEEE 802.3af Class 2 (Power over Ethernet)
	USB Ports	2 x USB 2.0 (Type-A)
	Bluetooth	Bluetooth 4.0 EDR (Enhanced Data Rate)
	Protocol Support	SIP (Session Initiation Protocol)
Voice Features	Lines Supported	5 programmable line keys (up to 10 with feature keys)
	Voice Codecs	G.711a/µ, G.722, G.729a/ab, iLBC, G.722.1
	Speakerphone	Full-duplex, wideband capable
	Headset Support	RJ-9, EHS (Electronic Hookswitch) for wireless headsets, USB
Physical Features	Buttons	Fixed keys for common functions, soft keys
	Navigation	5-way navigation cluster
Security	Encryption	Secure boot, image authentication, signaling and media encryption (K9)
Physical Specifications	Dimensions (H x W x D)	229 x 257.3 x 983 mm (9.02 x 10.13 x 3.87 inches)
	Weight (Approximate)	1.33 kg (2.93 lbs)
Environmental	Operating Temperature	0°C to 45°C (32°F to 113°F)
	Operating Humidity	10% to 95% non-condensing
Compliance	Standards	SIP, IEEE 802.3af/at
	Safety/EMC	Regulatory compliance specific to Cisco IP Phones
