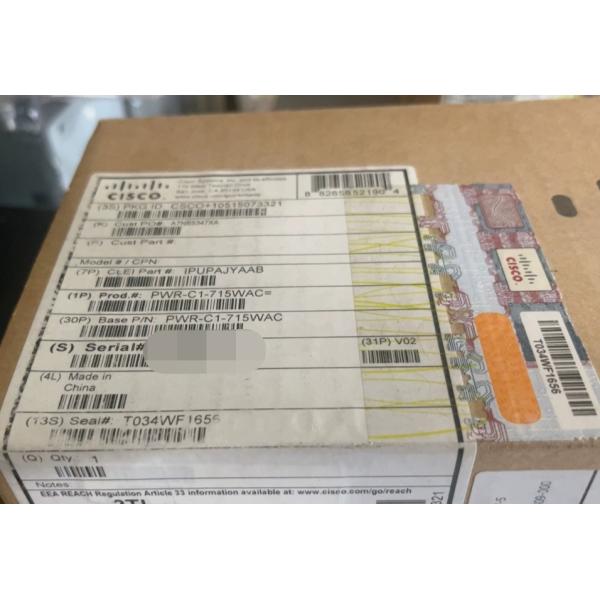

PWR-C1-715WAC= 715W Cisco 3850 Switch Power Supply Plug In Module
PWR-C1-715WAC= 715W Cisco 3850 Switch Power Supply Plug In Module
PWR-C1-715WAC= 715W Cisco 3850 Switch Power Supply Plug In Module
PWR-C1-715WAC= 715W Cisco 3850 Switch Power Supply Plug In Module
PWR-C1-715WAC= 715W Cisco 3850 Switch Power Supply Plug In Module
PWR-C1-715WAC= 715W Cisco 3850 Switch Power Supply Plug In Module
PWR-C1-715WAC= 715W Cisco 3850 Switch Power Supply Plug In Module
PWR-C1-715WAC= 715W Cisco 3850 Switch Power Supply Plug In Module
Specifications
Brand Name :
PWR-C1-715WAC
Place of Origin :
Beijing China,
Packaging Details :
Brand new original unopened
Supply Ability :
50 Piece/Pieces per Day
MOQ :
2 pieces
Price :
$129.00/pieces 2-99 pieces
Model Number :
PWR-C1-715WAC
Model :
PWR-C1-715WAC
Product name :
Power supply
Form Factor :
Plug-in Module
Private Mold :
NO
Products Status :
Stock
Condition :
NIB Original
Warranty :
1 Year
Delivery time :
5-7 Working Days
SHIPPING :
DHL FEDEX UPS
Port :
Beijing; HK
Description
Product Description

Original 715W AC Power Supply PWR-C1-715WAC= for 3850 Series Switch

Cisco's PWR-C1-715WAC= is an enterprise-grade switch engineered to provide robust network capabilities for demanding environments. This versatile switch is designed with features such as advanced security protocols, intelligent traffic management, and support for Power over Ethernet (PoE). The PWR-C1-715WAC offers seamless connectivity, ensuring reliability and efficiency in your network.
Specifications
Power supply rated maximum 715W
Total output BTU (Note: 1000 BTU/hr = 293W) 2465 BTU/hr, 715W
Input-voltage range and frequency

100-240VAC,

50-60 Hz
Input current 10-5A
Output ratings -56V at 12.8A
Output holdup time 16.7 ms minimum at 100VAC
Power-supply input receptacles

IEC 320-C16

(IEC60320-C16)
Power cord rating 13A
Physical specifications (H x W x D): 1.58 X 3.25 X 12.20 in
Operating temperature 23 to 113°F (-5 to 45°C)
Storage temperature -40 to 158°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing 5 to 90% noncondensing
Altitude 10,000 ft. (3000 meters), up to 45°C
MTBF Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC compliance

FCC Part 15 (CFR 47) Class A

ICES-003 Class A

EN 55022 Class A

CISPR 22 Class A

AS/NZS 3548 Class A

BSMI Class A (AC input models only)

VCCI Class A

EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3

EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
Safety compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
LED indicators

“AC OK”: Input power to the power supply is OK

“PS OK”: Output power from the power supply is OK

Compare to Similar Items

Product Code PWR-C1-350WAC PWR-C1-440WDC PWR-C1-715WAC PWR-C1-1100WAC
Power supply rated maximum 350W 440W 715W 1100W
Total output BTU (Note: 1000 BTU/hr = 293W) 1207BTU/hr, 350W 1517BTU/hr, 440W 2465 BTU/hr, 715W 3793 BTU/hr, 1100W
Input-voltage range and frequency

100-240VAC,

50-60 Hz

 -36VDC to -72VDC

100-240VAC,

50-60 Hz

115-240VAC,

50-60 Hz
Input current 4-2A

10-5A 12-6A
Output ratings -56V at 6.25A -56V at 7.86A -56V at 12.8A -56V at 19.64A
Output holdup time 16.7 ms minimum at 100VAC > 2ms at -48VDC 16.7 ms minimum at 100VAC 10 ms minimum at 102.5VAC
Power-supply input receptacles IEC 320-C16 (IEC60320-C16) Terminal strip

IEC 320-C16

(IEC60320-C16)

IEC 320-C16

(IEC60320-C16)
Power cord rating 10A 20A at 100VDC 13A 13A
